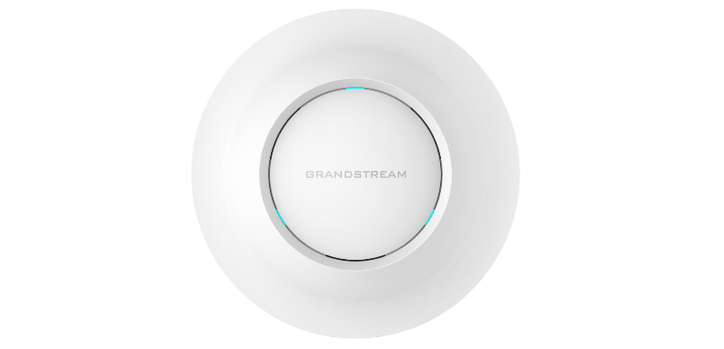

Grandstream GWN7605 802.11ac Wave-2 Long Range Enterprise Wi-Fi Access Point

$119.00 +GST

50+ In Stock

SKU: GWN7605

Quantity	Price
1 - 4	$119.00
5 - 9	$116.03
10 - 19	$113.05
20+	$107.10

Data Sheet

Grandstream GWN7605 802.11ac Wave-2 2x2:2 MU-MIMO Enterprise Wi-Fi Access Point (Power Supply Sold Separately)

Warranty

Back to: Indoor Access Points

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Description

Specifications

Resources

Package Contents

The Grandstream GWN7605 is an affordable 802.11ac Wave-2 Wi-Fi access point ideal for small to medium wireless network deployments with medium user density. It offers dual-band 2x2:2 MU-MIMO with beam-forming technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7605 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface. The GWN7605 is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi-capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 100+ concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, the GWN7605 is scalable Wi-Fi solution for deployments such as retail locations, restaurants, small offices and more.

Please note: This device does not include a power supply, we recommend the Grandstream GSPoE or an 802.3af/at compliant POE switch.

Features

Simplify your network management with Free Cloud management on GWN.Cloud or use built in controller
Ideal product for Managed service provider (MSP) solution
1.27Gbps wireless throughput and 2x Gigabit wireline ports
Dual-band 2x2:2 MU-MIMO with beam-forming technology
Support 802.3af Power-over-Ethernet (PoE)
Support 100+ concurrent WiFi client devices
Advanced QoS to ensure real-time performance of low-latency applications
Up to 165-meter coverage
Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
Embedded controller allows GWN7605 to auto-discover, auto-provision and manage up to 50 GWN7600s in a network

Details
Manufacturer's Code	GWN7605
Output Power	5GHz: 24dBm, 2.4GHz: 22dBm
Frequency Range	2.4GHz: 2412 - 2484 GHz; 5GHz: 5180 - 5825 GHz
Multiple SSID	8 SSID per radio
Interfaces	2x autosensing 10/100/1000 Base-T Ethernet Ports, 1x Reset Pinhole, 1x Kensington lock
Wireless standards	IEEE 802.11 a/b/g/n/ac (Wave-2)
PoE In	802.3af/at Compliant
Antenna gain dBi	(2) 2.4 GHz - 3dBi; (2) 5GHz - 3dBi internal antennas
Max TX Power	5GHz: 24dBm, 2.4GHz: 22dBm
Number of chains	2x2:2 2.4GHz (MIMO), 2x2:2 5GHz (MU-MIMO)
Dimensions	180.4 x 205.4 x 40.8mm
Max Concurrent Clients	100+
Maximum Data Rates	2.4GHz: 300Mbps; 5GHz: 867Mbps
Network Management	Embedded controller in GWN7605 allows it to auto-discover, auto-provision and manage up to 50 GWN7600s in a network
QoS	802.11e/WMM, VLAN, TOS
Network Protocols	IPv4, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
