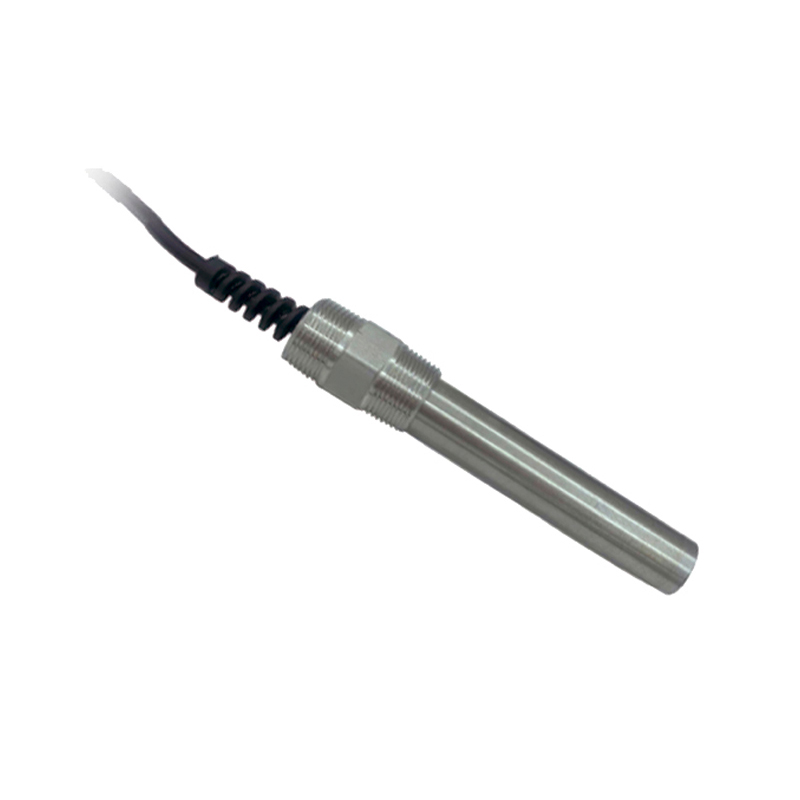

Rika RK500-07 Turbidity Sensor with RS485

$1,349.00 +GST
Login for your price
Out of Stock
SKU: RK500-07
QuantityPrice
1 - 4$1 349.00
5 - 9$1 315.28
10 - 19$1 281.55
20+$1 214.10
Rika RK500-07 Turbidity Sensor with RS485
Warranty
Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*
Supported Platforms
Scopious IoT
Description
Specifications
Resources
Package Contents
!!COMING SOON!!

The Rika RK500-07 Turbidity sensor is an instrument that uses optical principles to measure the degree of turbidity of water. Turbidity is caused by suspended particles in water. The suspended particles reflect the incident light. The scattered light in the direction of 90° is used as the test signal, so the unit tested is called NTU (Nephelometric Turbidity unit). This method is suitable for testing low to medium range readings, ranging from 0.01 to 4000FNU (Formazin Nephelometric Unit). Infrared light is used as a light source, which can not be disturbed by the chromaticity of samples. Turbidity sensors are widely used for water treatment, well monitoring, agriculture, biodegradation, reservoir, etc.

Need help selecting the right IoT solution?

Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.

Consult with Scopious IoT today!
Features
  • Fast Response
  • Excellent Stability
  • Widely Used
  • High Sensitivity
  • High Precision
  • Simple Operation
Details
Product ModelRK500-07(SS)
Range0-4000NTU
Resolution0.1%
Accuracy±1%FS
Supply12-24VDC
Temperature compensation0-60℃
OutputRS485,4-20mA
Pressure Resistance<3bar
Measuring principleoptical
Operating Temperature0-+80℃
DimensionΦ45*135mm
Main Material316L
Power consumption<10W
Ingress ProtectionIP68
Cable length5m default
Details
Scopious IoT
Liquid

There are yet no reviews for this product.

Please log in to write a review. Log in
