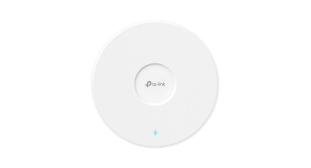

Omada EAP772 BE9300 Ceiling Mount Tri-Band WiFi 7 Access Point.

Featuring superb Wi-Fi 7 technologies including Multi-Link Operation, 6 GHz, 320 MHz Bandwidth, 4K-QAM, and Multi-RUs, Omada EAP772 significantly enhances throughput, connection stability, and concurrent capacity, ensuring faster and higher quality connections for more devices.

With a 2.5 Gigabit Ethernet Port, EAP772 delivers remarkable multi-gigabit performance for higher bandwidth and faster Wi-Fi. Compatibility with 802.3at PoE is ideal for flexible deployment.

Features

Next-Gen WiFi7 802.11be
Wi-Fi Speeds up to 9.2 Gbps
Multi-Link Operation (MLO)
1× 2.5GbE Port
802.3at PoE
Ultra-Thin Design
Centralized Cloud Management
Omada Mesh Technology

Details
Manufacturer's Code	EAP772 (EU)
Interface	1× 2.5G Ethernet Port
Button	Reset
Power Supply	802.3at PoE or 12V/2.5A DC (Power adapter is not included)
Maximum Power Consumption	25.44 W (For PoE), 22.57 W (For DC)
Dimensions ( W x D x H )	220 × 220 × 32.5 mm
Antenna Gain	2.4 GHz @ 4 dBi, 5 GHz @ 5 dBi, 6 GHz @ 5 dBi
Bluetooth	Yes
Coverage	140m²
Concurrent Clients	380+
Wireless Standards	IEEE 802.11 a/b/g/n/ac/ax/be Wi-Fi 7
Frequency	6 GHz, 5 GHz, and 2.4 GHz
Maximum Tx Power	25 dBm (2.4 GHz, EIRP), 25 dBm (5 GHz, EIRP), 23 dBm (6 GHz EIRP)
Operating Temperature	0 °C–40 °C
Storage Temperature	-40 °C–70 °C
Operating Humidity	10%–90% non-condensing
Storage Humidity	5%–90% non-condensing
