Ubiquiti UniFi AirWire High-performance WiFi 7 Client Adapter with STR MLO

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Supported Platforms

Description

Description

Specifications

Resources

Package Contents

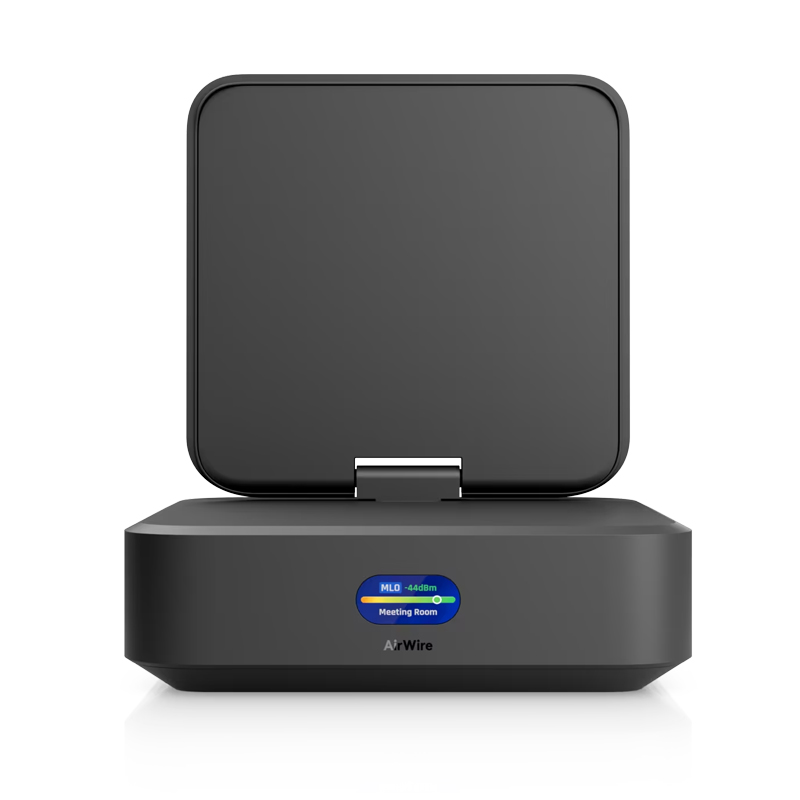

The Ubiquiti UniFi AirWire is a High-performance WiFi 7 client adapter with STR MLO, enabling simultaneous full-duplex links for ultra-low latency, extended range, and true multi-gigabit real-world speeds.

Features

WiFi 7 6 GHz Bridge - High-performance WiFi 7 bridge with 6 GHz support for multi-gigabit wireless speeds
MLO STR Support - The first client-side bridge capable of Simultaneous Transmit and Receive (STR) for true 5/6 GHz link aggregation
Long-Range Antenna - Adjustable built-in directional Super Antenna boosts signal strength when aimed at the nearest access point
UniFi WiFi Auto-Link - Automatically connects to nearby UniFi WiFi networks for fast wireless bridging without manual setup
Fiber-Like Performance - Delivers up to 5 Gbps over the air for wired-grade reliability without running fiber

Details
Manufacturer's Code	U-AirWire
Dimensions	117 x 117 x 42.5 mm (4.6 x 4.6 x 1.7")
WiFi Standard	WiFi 7
Spatial Streams	4
MIMO	6 GHz: 2 x 2 (DL/UL MU-MIMO), 5 GHz: 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate	6 GHz: 5.8 Gbps (BW320), 5 GHz: 4.3 Gbps (BW240)
Antenna Gain	6 GHz: 11 dBi, 5 GHz: 11 dBi
Max. TX Power	6 GHz: 20 dBm, 5 GHz: 25 dBm
Supported Data Rates	802.11be (WiFi 7) 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320), 802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160), 802.11ac (WiFi 5)
Wireless Meshing	Yes
Real-Time Spectral Analysis	Yes
Max. Power Consumption	18W
Power Supply	USB PD 5/9/12V, 15W (Standard mode) USB PD 5/9/12V, 20W (Enhanced mode)
Networking Interface	(1) 5 GbE port (USB3.2 Gen2)
Weight	544 g (1.2 lb)
Management	USB-C
Enclosure Material	Polycarbonate
Display	0.96" status display
Channel Bandwidth	HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
NDAA Compliant	Yes
Certifications	CE, FCC, IC
Ambient Operating Temperature	-10 to 40° C (14 to 104° F)
Ambient Operating Humidity	5 to 95% noncondensing
Application Requirements	UniFi Network Version 10.2 and later
