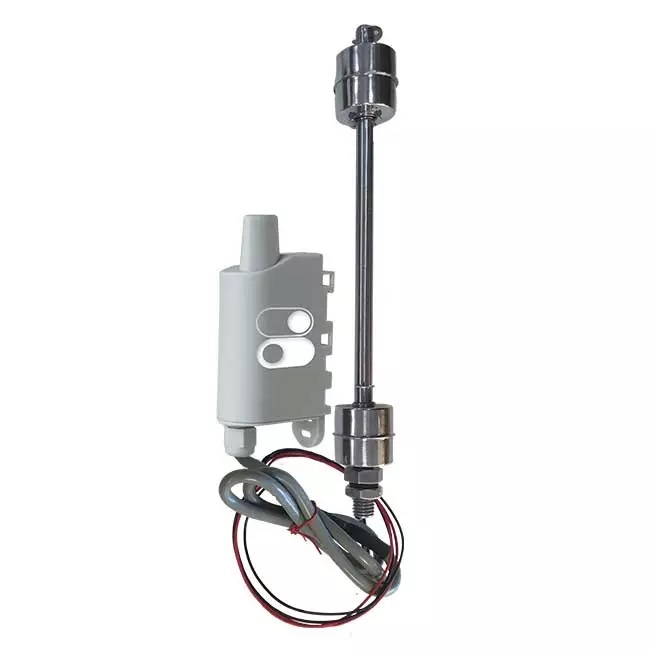

The Adeunis ARF8170BA-B02 bundles Dry Contacts and a Double Level IoT Sensor for LoRaWAN EU863-870.
The Double-level-sensor is a ready to use product enabling the detection of a double level of liquid. The package is composed of a DRY CONTACTS transceiver and a double-level sensor. Default settings have been established to simplify product installation by the user. This sensor helps by detecting when the level goes up or down and to anticipate an overflow or an empty tank.
The double-level IoT sensor is made of 304 stainless steel to be compatible with all types of non corrosive fluids. It can withstand a maximum temperature of 120 ° C and a maximum pressure of 5MPa (=50 bars).
The Double-level-sensor is a ready to use product enabling the detection of a double level of liquid. The package is composed of a DRY CONTACTS transceiver and a double-level sensor. Default settings have been established to simplify product installation by the user. This sensor helps by detecting when the level goes up or down and to anticipate an overflow or an empty tank.
The double-level IoT sensor is made of 304 stainless steel to be compatible with all types of non corrosive fluids. It can withstand a maximum temperature of 120 ° C and a maximum pressure of 5MPa (=50 bars).
Features
- Compatible with EU863-870 LoRaWAN™ networks
- Ready to use solution
- Self powered
- Transmission on events (Alert) or periodic (Counting)
- Cable cut detection
- Replaceable battery
| Details | |
|---|---|
| Product Code | ARF8170BA-B02 |
| Operating temperature range | up to 120°C |
| Dimensions | 215 mm total / 200 mm body float |
| Casing | stainless steel 304 |
| Double-level-sensor Cable Length | 1m |
| Operating pressure | 1MPa |
| Maximal pressure | 5MPa |
| Dry Contacts Operating temperature range | -25°C to + 70°C |
| Dry Contacts Dimensions | 105 x 50 x 27 mm |
| Casing | IP67 (IP68 on demand) |
| Zone | LoRaWAN: EU863-870 |
| Details |
|---|
LoRAWAN
Contact , Liquid
600-999MHz
