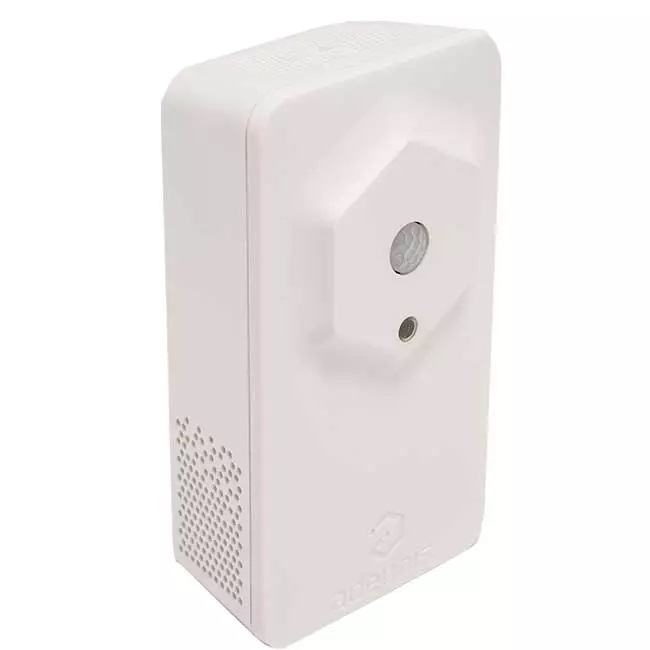

The Adeunis ARF8276AA Smart Building Motion is a Presence and Luminosity IoT Sensor for LoRaWAN EU863-870.
The adeunis® LoRaWAN MOTION V2 device is a ready-to-use radio transmitter for detecting the presence of a heat source and so determine the occupancy of a room, it also indicates the brightness level in a room. This product meets the needs of users to monitor the occupancy and brightness of their buildings via a LoRaWAN IoT network. The device issues data periodically, alarms (presence and no presence) and when thresholds are high or low (luminosity).
The device includes 2 digital inputs: 1 through a button that sends frames when pressed and another to connect a dry contact sensor. The user can access the transmitter configuration locally via a micro-USB port or remotely via the LoRaWAN network. The user car configure, in particular, periodicity, sending modes, alarms and activation or deactivation of the digital inputs. The LoRaWAN Smart Building MOTION is powered by a replaceable internal battery.
The adeunis® LoRaWAN MOTION V2 device is a ready-to-use radio transmitter for detecting the presence of a heat source and so determine the occupancy of a room, it also indicates the brightness level in a room. This product meets the needs of users to monitor the occupancy and brightness of their buildings via a LoRaWAN IoT network. The device issues data periodically, alarms (presence and no presence) and when thresholds are high or low (luminosity).
The device includes 2 digital inputs: 1 through a button that sends frames when pressed and another to connect a dry contact sensor. The user can access the transmitter configuration locally via a micro-USB port or remotely via the LoRaWAN network. The user car configure, in particular, periodicity, sending modes, alarms and activation or deactivation of the digital inputs. The LoRaWAN Smart Building MOTION is powered by a replaceable internal battery.
Features
- Compatible with EU863-870 LoRaWAN™ networks
- 4 functions: presence, luminosity, alert button, dry contact input
- Ready to use solution
- Self powered
- Periodic and / or event mode
- Data logging to optimize the number of mailings
- Battery-powered stand-alone product
- Configurable life frame
| Details | |
|---|---|
| Product Code | ARF8276AA |
| Integrated fixing system | wall or laid |
| LoRaWAN | EU863-870 |
| Configuration | Local and remote |
| Standard | Directive 2014/53/UE (RED) |
| Alerts | Product error alert, configuration error, low battery |
| Sensors | Presence and Luminosity |
| Digital Inputs | 1 |
| Connected Buttons | 1 |
| Case | IP20 (indoor use) |
| Operating Temperature Range | -20°C /+60°C |
| Dimensions | 111 x 61 x 40 mm |
| Weight | 102g |
| Details |
|---|
LoRAWAN
Movement
600-999MHz
