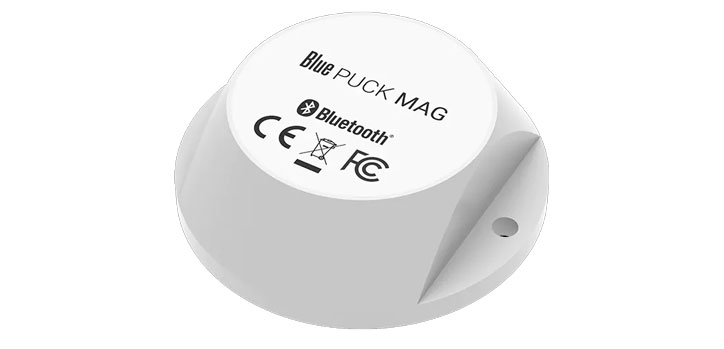

Teltonika is always focused on innovation and constantly offers new solutions to customers. Latest addition of BLE sensors extends covered business cases: doors, hood or similar objects open/close status monitoring. In combination with sensor it is necessary to use additional magnet. Sensor can send information when magnet is attached/detached. Bluetooth magnet sensors are small signal transmitters with configurable signal strength and data send intervals. Sensor uses advanced Bluetooth 4.0 LE technology to get data from long distance and can work from one battery up to 11 years.
Features
- Long transmission range, up to 500 meters (open field)
- Long battery life time, up to 11 years
- Easy configuration with dedicated mobile application via secured NFC
- IP68 Rated
| Details | |
|---|---|
| Product code | Blue Puck Mag (PRIEDAS 1A3 (MAGNET)) |
| Battery | Lifecycle up to 11 years |
| Bluetooth | 2,4 GHz - Bluetooth Low Energy 4.0/4.2 |
| NFC | Supported |
| Dimensions | ø 57 mm base - Thickness 18 mm - 2 mounting ø 4 mm holes, spaced of 49 mm |
| Weight | 36 g |
| Operating temperature | -40°C to +85°C |
| Ingress Protection Rating | IP68 (Waterproof) |
| Transmission range | Up to 500 meters (open field) |
| Transmission period | 0,1 to 10 second (programmable) |
| Regulatory | CE (Europe)*: EN 300 328/ EN 301 489 & EN 55032 / EN 62368-1, FCC (USA)*: FCC 15.247 / FCC PT 15B, ISED/IC (Canada)*: RSS-247 / ICES-003, RoHS certified,(*) Certification in progress |
| Details | |
|---|---|
| Contents | 1 x Blue Puck Mag movement Sensor |
SMA
Bluetooth , NFC
