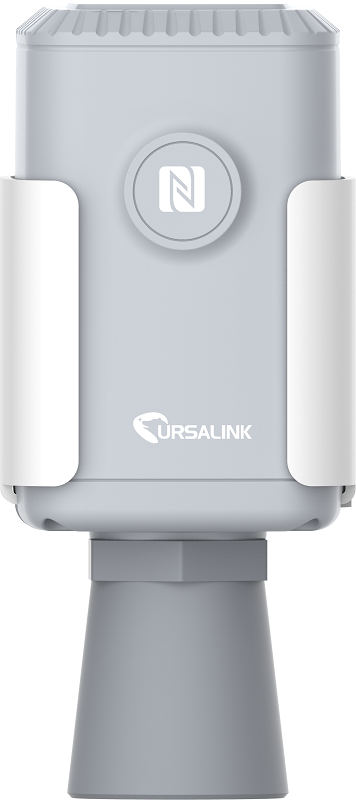

Milesight LoRaWAN AU915/AS923 Ultrasonic Distance/Level IoT Sensor (0.5-10m)

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Supported Platforms

Description

Description

Specifications

Resources

Package Contents

The Ursalink Environment Monitoring IoT Sensors (EM500 Series) are LoRaWAN AU915/AS923 sensors designed for different professional applications. These sensors utilize a high ingress protection rating enclosure for use in the most challenging outdoor environmental conditions, and are powered by built-in battery for years-long use life.

The EM500-UDL-W100-915 (0.5-10M) is a Ultrasonic Distance/Level sensor, would suit:
Water level readings
Grain Silo level readings
Distance Measurements

Need help selecting the right IoT solution?

Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.

Consult with Scopious IoT today!

Features

Robust IP66 rated enclosure
Configuration via NFC
LoRaWAN
Ursalink Cloud compliant
Low power consumption

Details
Manufacturer's Code	EM500-UDL-W100-915
Frequency	AU915/AS923
Tx Power	20dBm
Sensitivity	-147dBm @300bps
Mode	OTAA/ABP Class A
Distance Range	0.5-10m
Accuracy	±1%
Operating Temperature	-20°C to +70°C
Dimension	156.1 × 71 × 69.5 mm
Power Input	19000 mAh Li-SOCL2 battery
Mounting	DIN rail, wall
IP Rating	IP66 (can be upgraded to IP67)
