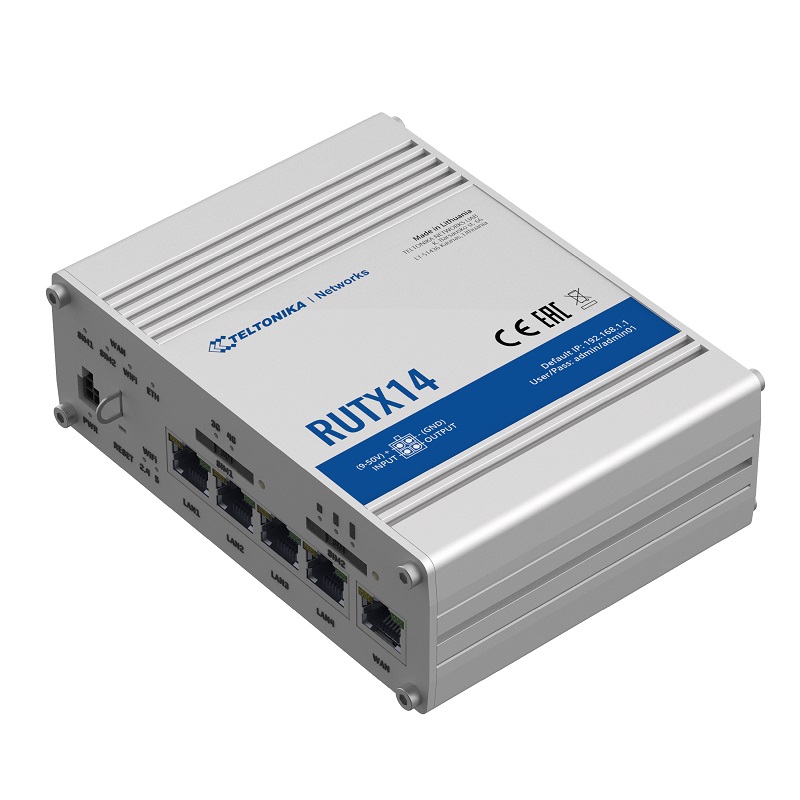

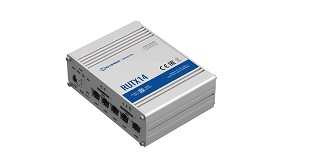

Teltonika RUTX14 Dual SIM 4G/LTE Cat 12 802.11ac IoT Wi-Fi Cellular Router with GPS and Bluetooth. The Teltonika RUTX14 is the fastest single modem LTE router in our portfolio. It has five Gigabit Ethernet ports, Wave-2 802.11ac Dual-Band Wi-Fi, Bluetooth LE, and USB interfaces and dual SIM for advanced throughput and ultra-reliable connectivity. Equipped with advanced security features like multiple VPN's, firewall & cyber attack prevention.
The RUTX14 is a combination of fast CAT12 connectivity, wide range of physical interfaces, extensive RutOS functionality and great remote management capabilities make this device an excellent choice for primary or backup connectivity
The RUTX14 is a combination of fast CAT12 connectivity, wide range of physical interfaces, extensive RutOS functionality and great remote management capabilities make this device an excellent choice for primary or backup connectivity
Features
- 4G LTE CAT12
- Wave-2 AC Dual Band Wifi and BT
- Dual SIM
- RMS Compatible
- Load Balancing
- GNSS/GPS
| Details | |
|---|---|
| Product code | RUTX14000000 |
| Mobile | 2 x 4G (LTE) – Cat 12 up to 600 Mbps, 3G – up to 42 Mbps |
| Supported Bands | 4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28, B32; 4G (LTE-TDD): B38, B40, B41; 3G: B1, B3, B5, B8 |
| CPU | Qualcomm, 4 x ARM Cortex A7, 717 MHz |
| Memory | 256 MBytes Flash, 256 MBytes RAM |
| Powering option | 4 pin power socket, 9-50 VDC |
| SIM | 2 x External SIM holders (2FF) |
| Antenna connectors | 4 x SMA for mobile, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GPS |
| Ethernet | 5 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 4 x LAN |
| WiFi | IEEE 802.11b/g/n 2.4GHz, IEEE 802.11n/ac 5GHz, Access point (AP), Station (STA) |
| GNSS | GPS, GLONASS, BeiDou, Galileo, QZSS |
| Bluetooth | 4.0 (Low energy) |
| Inputs/Outputs | On 4 pin socket: 1 x Digital input, 1 x Digital open collector output |
| Status LEDs | 4 x WAN type, 2 x Connection type, 3 x Signal strength, 2 x WiFi, 10 x Ethernet, 1 x Power |
| Operating temperature | -40 °C to 75 °C |
| Housing | Aluminium housing with DIN rail mounting option and grounding capability |
| Dimensions | (W x H x D) 132 x 44 x 95 mm |
| Weight | 515 g |
| Operating system | RutOS (OpenWrt based Linux OS) |
| Network | Failover (Network backup), VLAN, QoS, Load Balancing |
| Routing | Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP), Routing rules |
| Monitoring and management | WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS |
| Cloud solutions | RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
| Hotspot | External/Internal Radius, SMS OTP, MAC authentication, Walled Garden |
| Supported Hotspot platforms | IronWiFi, HotspotSystem, Cloud4Wi, SAI + WiFi, MugiCloud, Purple.ai |
| Details | |
|---|---|
| Power | NZ AC/DC power adapter 24W 4 pin plug included |
| GSM/WCDMA/LTE | 4 x LTE antennas (swivel, SMA male) |
| WiFi | 2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m) |
| GNSS | 1 x GNSS antenna (adhesive, SMA male, 3 m cable) |
| Bluetooth | 1 x Bluetooth antenna (magnetic mount, RP-SMA male, 1.5 m) |
| Extras | SIM needle, Ethernet cable (1.5 m), QSG (Quick Start Guide) |
Teltonika RMS
1Gbps
4G , Wi-Fi 5 , Bluetooth , GPS/GNSS
Data Logger , Tracker
RJ45 , RP-SMA , SMA , USB
600-999MHz , 1700-2100MHz , 2.4GHz , 2.6GHz , 5GHz
