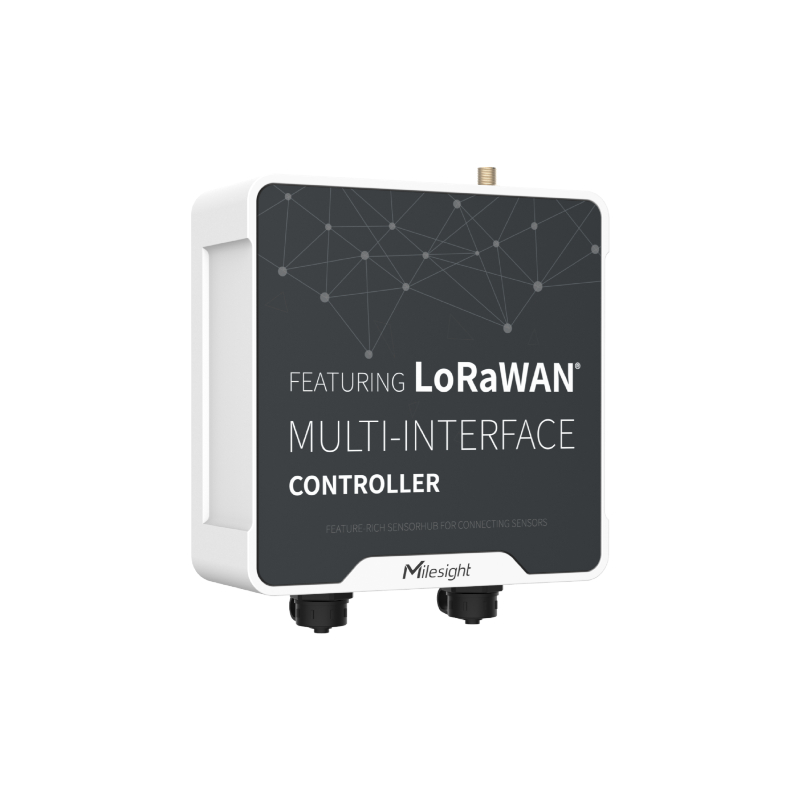

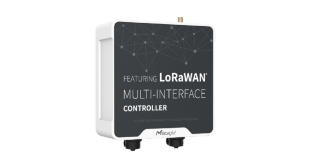

Milesight UC502 V3 AU915/AS923 LoraWan IoT Controller with GPIO/AI/RS232/RS485/SDI-12. The Milesight UC502 is a AU915/AS923 LoRaWAN controller used for data acquisition from multiple sensors. It contains different I/O interfaces such as analog inputs, digital inputs, digital outputs, serial ports and so on, which simplify the deployment and replacement of LoRaWAN® networks.
UC502 v3 can be easily and quickly configured by NFC or wired USB port. For outdoor applications, it is equipped with an IP67-rated enclosure and M12 connectors to protect itself from water and dust in harsh environments. It is also powered by a 19000mAh replaceable Li-SoCl2 battery.
This sensor is perfect for multiple use cases including smart agriculture, smart industrial monitoring and smart cities. You can use this unit for retrofitting existing sensors to send over LoRaWan, including gas, water or flow meter monitoring.
Need help selecting the right IoT solution?
Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.
Consult with Scopious IoT today!
UC502 v3 can be easily and quickly configured by NFC or wired USB port. For outdoor applications, it is equipped with an IP67-rated enclosure and M12 connectors to protect itself from water and dust in harsh environments. It is also powered by a 19000mAh replaceable Li-SoCl2 battery.
This sensor is perfect for multiple use cases including smart agriculture, smart industrial monitoring and smart cities. You can use this unit for retrofitting existing sensors to send over LoRaWan, including gas, water or flow meter monitoring.
Need help selecting the right IoT solution?
Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.
Consult with Scopious IoT today!
Features
- Easy to connect with multiple wired sensors using GPIO/AI/RS232/RS485/SDI-12 interfaces
- Long transmission distance up to 11km with line of sight
- Waterproof design including IP67 case and M12 connectors
- Large battery Life for Long Deployment life
- Quick wireless configuration via NFC
- Compliant with standard LoRaWAN® gateways and network servers
- Quick and easy management with Milesight IoT Cloud solution
- External Lora Antenna
| Details | |
|---|---|
| Manufacturer's Code | UC502-915M V3 PN:EA |
| Frequency | AU915/AS923 |
| Tx Power | 20dbm |
| Sensitivity | -147dBm @300bps |
| Mode | OTAA/ABP |
| Interface type | M12 A-Coded Male, SMA-Female connector |
| IO Ports | 2 x GPIO |
| Logic Level | Low: 0~0.9V, High: 2.5~3.3V |
| Work Mode | Digital input, digital output, pulse counter (only support on GPIO2) |
| Serial Port | 1 × RS232 or RS485 (Switchable), |
| Baud Rate | 300~230400 bps |
| Protocol | Transparent (RS232), Modbus RTU (RS485), SDI-12 |
| Analog Inputs | 2 × Analog input |
| Resolution | 12 bit |
| Input Range | 4~20mA or 0~10V (Switchable) |
| Power Output | 2 × 3.3 V, 2 × 5/9/12 V (Switchable) |
| Operating Temperature | -20°C to +60°C |
| Ingress Protection | IP67 |
| Dimension | 120.1 × 120.1× 55.4 mm (4.73 × 4.73 × 2.18 in) |
| Power Supply | 19000mAh replaceable Li-SoCl2 battery |
| Mounting | Wall or Pole Mounting |
| Details | |
|---|---|
| Included | 2 × Data Cable, Mounting screws, Screwcaps, Warranty Card |
LoRAWAN , NFC
Data Logger
600-999MHz
