Description
Specifications
Resources
Package Contents

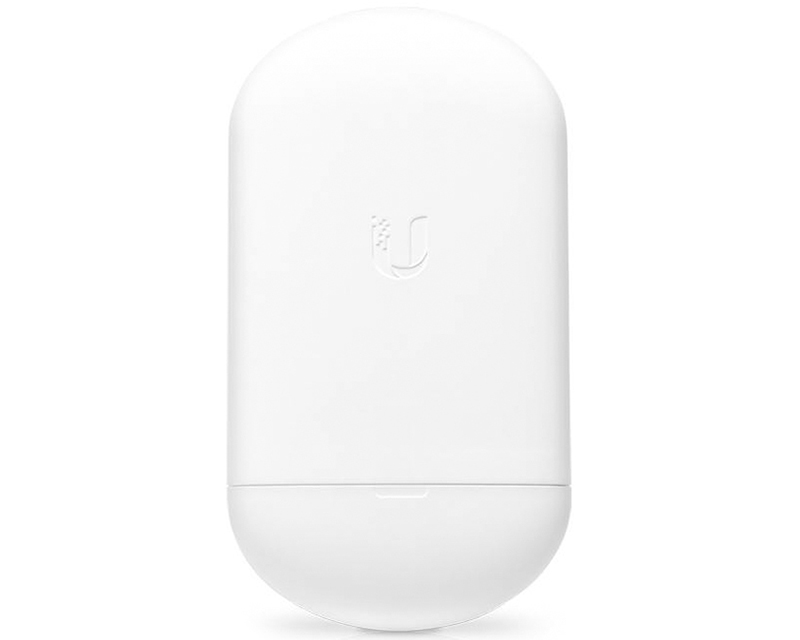

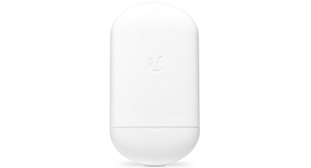

NanoStation 5AC Loco 300mW 13dBi CPE/Bridge Radio. Ubiquiti Networks set the bar for the world's first low-cost and efficient broadband Customer Premises Equipment (CPE) with the NanoStation® M. The NanoStation AC loco NS-5ACL take the same concept to the future with sleek form factors, along with integrated airMAX (MIMO TDMA protocol) technology and dedicated Wi-Fi management. The radio and antenna are combined to create a more efficient and compact CPE. The NanoStation AC and NanoStation AC loco get maximum gain out of the smallest footprint. The low cost, high performance, and small form factor of the NanoStation AC and NanoStation AC loco make them extremely versatile and economical to deploy.
Features
- PoE Not Included (Sold Separately)
- Versatile Mounting Both models are suitable for indoor and outdoor installations
- Improved Surge Protection The NanoStation AC and NanoStation AC loco utilize the latest ESD Protection to help protect against power surges
- Efficient Footprint The radio and antenna are combined into a single body that takes up minimal space
- Quick Installation No fasteners are required for pole-mounting, and a single wall fastener (not included) is required for wall-mounting (NS-5AC only)
Details | |
---|---|
Manufacturer's Code | LOCO5AC |
Output Power | 25dBm |
Operating Modes | AP/Station/WDS |
Frequency Range | 5150-5875MHz; 2.4GHz (Management Radio) |
Interfaces | (1) 10/100/1000 Mbps Ethernet Port |
PoE In | Yes, 24VDC |
Antenna gain dBi | 13dBi |
Max Power consumption | 8.5W |
Number of chains | 2 |
Polarisation | Dual Linear |
Beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
Pole Diameter | 30-50mm |
Dimensions | 179 x 77.5 x 59.1 mm |
Details | |
---|---|
Power Supply | Sold Separately |
Pole Mount | Yes, Hose Clamp or Cable Tie |
1Gbps
Wi-Fi 5 , Proprietary
RJ45
5GHz
PoE (non standard)
