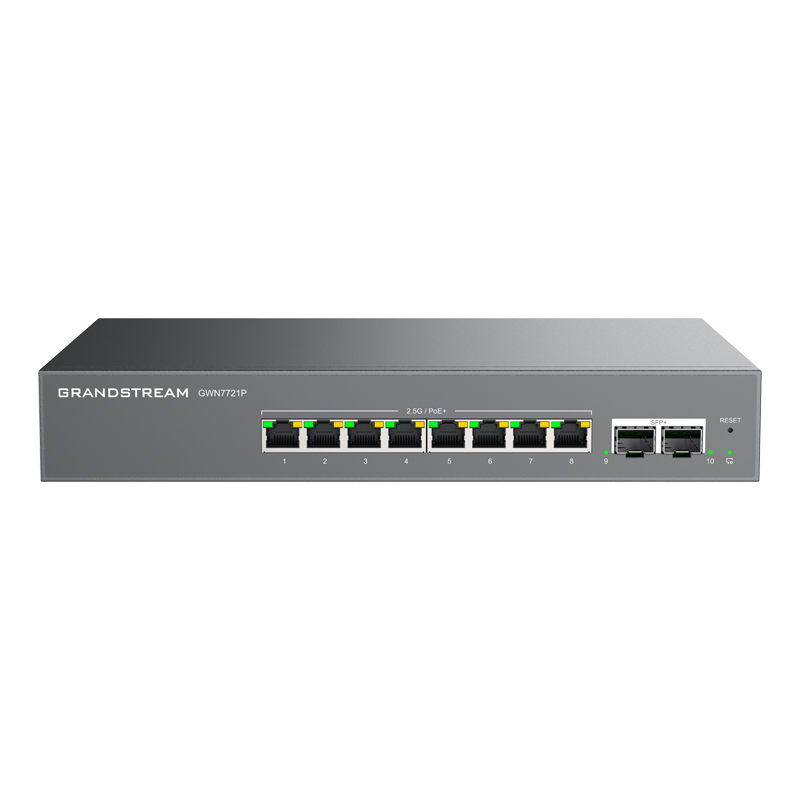

Grandstream GWN7721P Layer 2-Lite Managed Multi-Gig Switch, 8 x 2.5 GigE, 2 x 10G SFP+ (8 x PoE/PoE+)

$209.00 +GST
Login for your price
50+ In Stock
SKU: GWN7721P
Grandstream GWN7721P Layer 2-Lite Managed Multi-Gig Switch, 8 x 2.5 GigE, 2 x 10G SFP+ (8 x PoE/PoE+)
Warranty
Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*
Description
Specifications
Resources
Package Contents
The Grandstream GWN7721P Layer 2-Lite Managed Multi-Gig Switch, 8 x 2.5 GigE, 2 x 10G SFP+ (8 x PoE/PoE+). The GWN7721P are 10-port Layer 2 Lite Managed Switches equipped with 8 2.5-Gigabit Ethernet ports and 2 10-Gigabit SFP+ ports to allow small-to-medium businesses to build scalable and secure high-speed networks.

These devices support complex VLAN traffic segmentation, port-based VLAN, DSCP and 802.1p QoS priority management modes and IGMP Snooping to provide bandwidth control and maximize network performance. The GWN7721P’s 8 Ethernet ports all provide PoE power output, suitable for IP phones, IP cameras, Wi-Fi access points, and more. These Layer 2 Lite network switches offer a variety of free and flexible management options, including cloud management with GDMS Networking, on-premise software management with GWN Manager, and through their web user interface. By providing high-speed 2.5 Gigabit Ethernet and 10 Gigabit SFP+ ports, layer 2 lite control, flexible management options, and advanced security protection, the GWN7721P are ideal for small to-medium businesses, hotels, home offices, and more.
Features
  • 8x 2.5 Gigabit Ethernet ports and 2x 10 Gigabit SFP+ ports
  • GWN7721P ports 1-8 support PoE and provide smart power control to support dynamic PoE/PoE+ power allocation per port
  • Supports Loop Detection, Cable Test and Port Mirroring to quickly locate network faults
  • SNMPv2 remote monitoring, fault diagnosis, and configuration management
  • STP/RSTP to guarantee fast convergence, ensure network stability and provide link load balancing
  • Free and flexible management options include the local web user interface, GWN Manager, and GDMS Networking
  • DHCP Snooping ensures DHCP packets are only allowed from trusted ports to keep the DHCP environment safe
  • Built-in QoS allows for prioritization of network traffic
Details
Manufacturer's CodeGWN7721P
Network ProtocolIPv4, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
2.5 Gigabit Ethernet Ports8
10 Gigabit SFP+ Ports2, supports 1Gbps/2.5Gbps/10Gbps
Maximum no. of Supported ModulesSM-10G: 2, MM-10G: 2, RJ45-10G: 1
PoE Out Ports8
Power Supply ExternalInternal 110~220V AC
PoE OutputPort 1-8 support 802.3af/at standard PoE out: - Up to 30W per port PoE out
Max Total PoE Output Power130W
Max Output Power per PoE Port30W
Auxiliary Ports1x Reset Pinhole
Forwarding ModeStore-and-forward
Total non-blocking throughput40Gbps
Switching Capability80Gbps
Jumbo Frame1518/2048/3072/4096/5120/6144/7168/8192/9216
Forwarding Rate59.52Mpps
Pack Buffer8Mb
MAC16K MAC address capacity
VLAN• Supports up to 32 VLANs (out of 4K VLAN IDs) • port-based VLAN, 802.1Q VLAN • DHCP Snooping
LAG5
MulticastIGMP Snooping ,Report Message Suppression
QoS• Auto prioritization of the incoming port of the packet • Priority Mapping • Queue scheduling, including SP, WFQ • Supports port priority, 802.1P priority, and DSCP priority • Bandwidth control • Rate limit
DHCPDHCP client
MaintenanceBackup and restore, system reboot , Factory Reset, firmware upgrade, Support MAC address search, SNMP, LLDP, Monitoring including port statistics, port mirroring cable test, Ping
Security• DHCP Snooping • Spanning tree • Loop prevention • PoE Watchdog • Kensington Security Slot (Kensington Lock) support
MountingDesktop/ Wall-Mount/Rack-Mount
LED IndicatorsPer device: Power- Green, Per port: Link/Activity - Green, GWN7721P Port 1-8: PoE power state - Yellow
EnvironmentalOperating Temperature: 0 to 45 °C (32 to 113 °F), Storage Temperature: -20 to 60 °C (-4 to 140 °F), Operating Humidity: 10% to 90% Non-condensing, Storage Humidity: 10% to 90% Non-condensing
Dimensions (L x W x H)Unit: 280 x 180 x 44mm, Package: 361 x 195.5 x 52mm
EnclosureMetal
WeightUnit: 1.45KG, Entire Package: 2.06KG
ComplianceFCC, CE, RCM, IC
Details
Package Content1x Switch, 1x 1.2m(10A) AC Cable, 1x Ground Cable, 4x Rubber Feet, 2x Lug Ear, 1x QIG
1Gbps
RJ45 , SFP+
PoE (802.3af/at)
