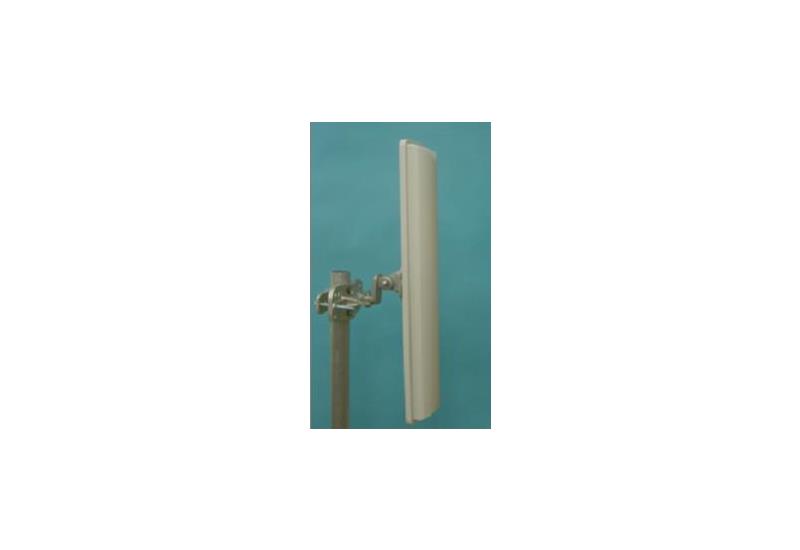

The MARS MA-WE55-15 120° Broadband Sector Antenna provides a cost effective solution for large scale WLL, WLAN, H-LAN, ISM, UNII, and Point-to-Multi-Point applications.
Features
- Waterproof 5 GHz Vertical broadband sector Antenna
- Azimuth/Elevation Adjustable Mount MNT-22
- Efficient and stable performance
- Highest range of ETSI Standards - TS3, TS4, TS5
- UV protected radome allowing for harsh weather installations
- Easy mounting allowing for Az/El adjustment
- Carrier class construction
- Expected 10 year working life span
- Includes heavy duty mount MNT-22 for poles up to 2.5” (63.5mm)
| Details | |
|---|---|
| Manufacturer's Product Code | MA-WE55-15 |
| Frequency Range | 4.9-6.1GHz |
| Gain | 15dBi |
| Polarisation | Vertical |
| Vertical Beamwidth | 8deg |
| Horizontal Beamwidth | 120deg |
| Connector Type | N-Type Female |
| Dimensions | 573 x 95 x 53 mm |
| Pole Mount Diameter | 25-63mm |
| Details | |
|---|---|
| Pole Mount | Yes, MNT-22 Included |
| Warranty | Standard 12 Month RTB |
N-Type
5GHz
