MARS 16dBi 4.9GHz - 6.1GHz Triple Polarisation 90deg MIMO Antenna

$259.00 +GST
Login for your price
8 In Stock
SKU: ANT-221
QuantityPrice
1 - 4$259.00
5 - 9$252.53
10 - 19$246.05
20+$233.10
MARs 4.9-6.1 GHz Triple Polarisation 90deg MIMO Base Station Antenna - MA-WD56-DSV16B
Warranty
Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*
Description
Specifications
Resources
Package Contents

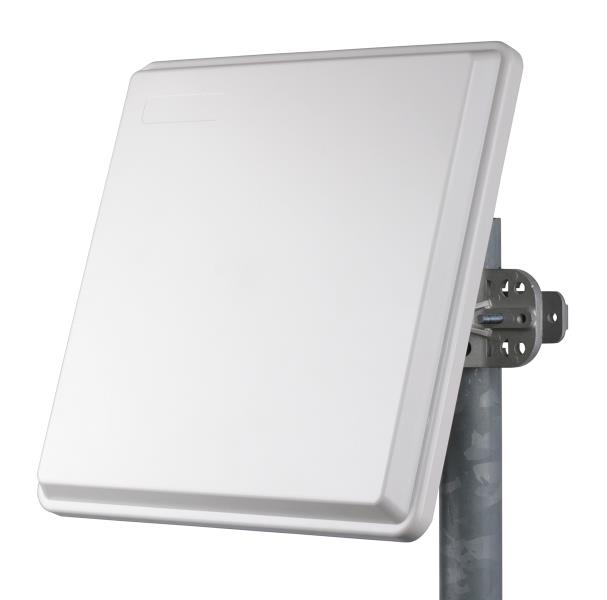

The MARS MA-WD56-DSV16B 16dBi Triple Polarisation Sector Antenna provides coverage of 4.9 GHz to 6.1GHz frequency band in a single antenna radome.
Features
  • Dual Slant (±45º) and Vertical Polarization
  • Specially designed for MIMO applications for optimal decorrelation
  • Light weight and durable construction
  • UV protected radome made of polycarbonate
Details
Manufacturer's Product CodeMA-WD56-DSV16B
Frequency Range4.9-6.1GHz
Gain16dBi
PolarisationDual Slant 45deg and Vertical
Vertical BeamwidthDual Slant: 90deg, Vertical: 90deg
Horizontal BeamwidthDual Slant: 8deg, Vertical: 8deg
Connector Type(3) N-Type Female
Dimensions370 x 370 x 40 mm
Pole Mount Diameter30-63mm
Details
Pole MountYes, MNT-22 Included
WarrantyStandard 12 Month RTB
5GHz
N-Type
