MARS 2.3-2.7 GHz and 4.9-6.1 GHz Dual Band MIMO 120 Deg Sector Antenna

0 Rating
$325.00 +GST
Login for your price
Out of Stock
SKU: ANT-268
QuantityPrice
1 - 4$325.00
5 - 9$316.88
10 - 19$308.75
20+$292.50

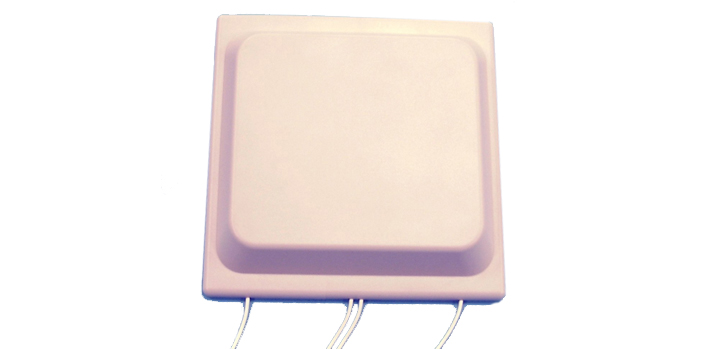

MARS 2.3-2.7 GHz and 4.9-6.1 GHz Dual Band MIMO 120 Deg Sector Antenna
Warranty
Description
Specifications
Resources
Package Contents
The MARs 2.3-2.7 GHz & 4.9-6.1 GHz Dual Band MIMO Applications 120 Deg Sector Antenna with Pole Mount-22. MARS Dual Band Sector antenna provides coverage of 2.3 to 2.7 GHz & 4.9 to 6.1 GHz in a single antenna radome.
Features
  • Simultaneous coverage of 802.11 a, b, g, e, n, ac, ax, WiMAX & 4.9 GHz Public Safety Bands
  • Light weight and durable construction.
  • UV protected radome made of plastic.
Details
Manufacturer's Product CodeMA-WE2458-MIMO4-5B
Frequency Range2.3-2.7 GHz and 4.9-6.1 GHz
GAIN4 x 5 dBi @ 2.4GHz, 4 x 5 dBi @ 5GHz
VSWR typ1.5 : 1
VSWR, max2 : 1
PolarizationDouble dual Slant ±45deg
3 dB Beam-Width, H-Plane, typ120deg
3 dB Beam-Width, E-Plane, typ70deg
Input power, max20 Watt
Input Impedance50 Ohm
Dimensions (HxWxD)200 x 200 x 33 mm (7.9" x 7.9" x 1.25")
Weight260 gr.
ConnectorsRA RP-SMA Male
Back PlaneAluminum; protected through chemical passivation
RadomeUV Protected Polycarbonate
MountMNT-22Z Included
Operating Temp Range-40°C to +70°C
VibrationAccording to IEC 60721-3-4
FlammabilityUL94
HumidityETS 300 019-1-4, EN 302 085 (annex A.1.1)
Details
Pole MountYes, MNT-22 Included
RP-SMA
2.4GHz , 5GHz
802.11a , 802.11b , 802.11g , 802.11n , 802.11ac , 802.11ax
