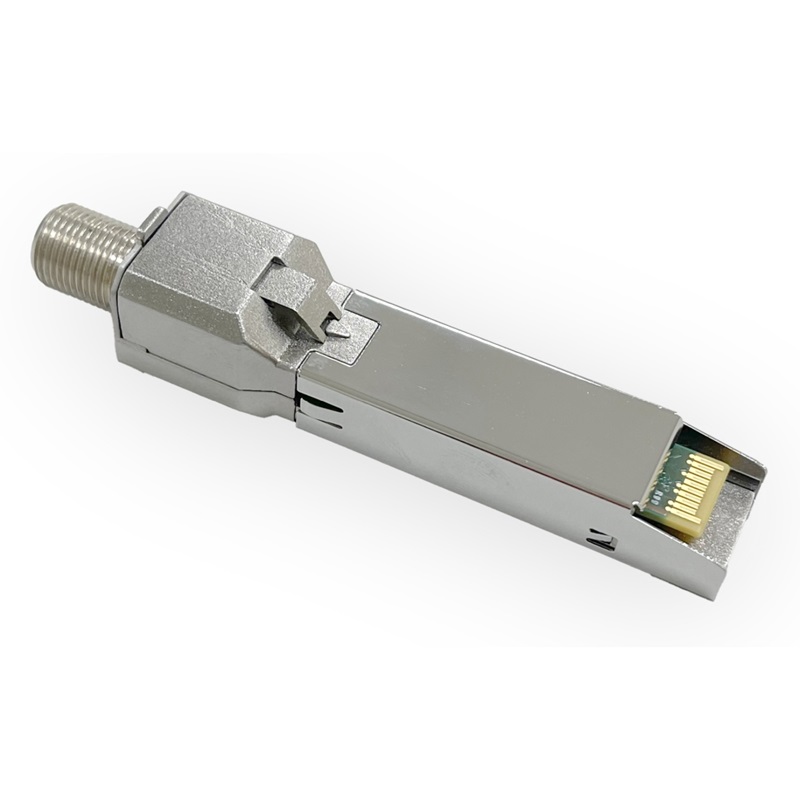

MDSlink MGC-2.5-H MaGiC SFP - MoCA SFP 2.5Gbps Full Duplex over 75 Ohm Coax High. The MaGiC-SFP (Multi-Gigabit over Coax, Small Form-factor Profile Pluggable) is the most cost-effective solution for last mile connectivity. MaGIC-SFP uses existing coaxial cable in the home and/or building, is easy to install and works with existing network equipment. MaGIC-SFP extends fiber and coaxial based networks, and has been tested to symmetrical data rates of up to 2.5Gbps.
Note: For MikroTik 2.5G to function the switch must support 2.5G forced/fixed with auto negotiate off
Note: For MikroTik 2.5G to function the switch must support 2.5G forced/fixed with auto negotiate off
Features
- MaGiC-SFP offers up to 2.5Gbps of symmetrical data
- Plugs into SFP+ cage found in gateways, ONU’s, Ethernet switches, APs and media converters, that support 1000BaseT/SGMII
- SFP/+ must support 2 watts
- Simple to install, fast to deploy, highly reliable
- No management software.
| Details | |
|---|---|
| Manufacturer's Code | MGC-2.5-H (MGRF-2G) |
| Support MoCA 2.5 | Backward interoperable with MoCA 2.0, 1.5 and 1.0 |
| Interfaces | SFP+ Interface Port, F-Type Connecter |
| Regulatory Approvals | FCC, CE, UL, CSA |
| Protection | OCP, OVP and SCP |
| Max PER | 1e-6 / 1e-8 |
| Latency | <6.1mS/<3mS(LLF) |
| Max Transmit Power | 4dBm |
| Receiver Sensitivity | -55dBm |
| RF Interface | F- Type Connector |
| RF Impedance | 75 E |
| RF Frequency Band | 400 MHz – 1675 MHz |
| Modulation | Up to 1024 QAM |
| Throughput | Up to 1.0Gbps - 2.5Gbps |
| Details |
|---|
SFP+
