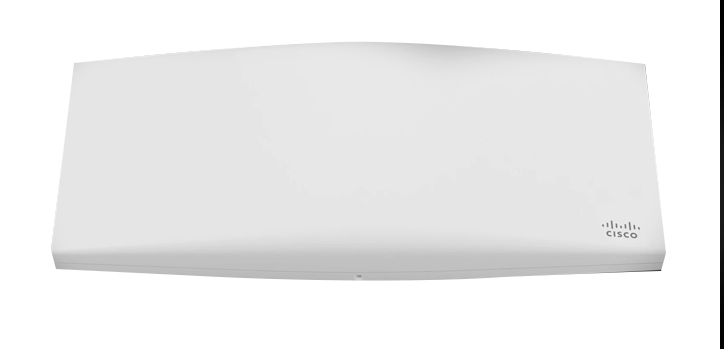

The Cisco Meraki MR36 is a cloud-managed 2x2:2 802.11ax access point that raises the bar for wireless performance and efficiency. Designed for next- generation deployments in offices, schools, hospitals, shops, and hotels, the MR36 offers high throughput, enterprise-grade security, and simple management.
The MR36 provides a maximum of 1.7 Gbps* aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios. A dedicated third radio provides real-time WIDS/ WIPS with automated RF optimization, and a fourth integrated radio delivers Bluetooth scanning and beaconing.
With the combination of cloud management, high performance hardware, multiple radios, and advanced software features, the MR36 makes an outstanding platform for the most demanding of uses—including high-density deployments and bandwidth or performance-intensive applications like voice and high-definition video.
The MR36 provides a maximum of 1.7 Gbps* aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios. A dedicated third radio provides real-time WIDS/ WIPS with automated RF optimization, and a fourth integrated radio delivers Bluetooth scanning and beaconing.
With the combination of cloud management, high performance hardware, multiple radios, and advanced software features, the MR36 makes an outstanding platform for the most demanding of uses—including high-density deployments and bandwidth or performance-intensive applications like voice and high-definition video.
Features
- 4 radios: 2.4 and 5 GHz, dual-band WIDS/WIPS, Bluetooth
- 2×2:2 UL/DL MU-MIMO 802.11ax
- Up to 1.7 Gbps aggregate frame rate
- Measure visitor capture rate, visit length, and repeat visit rate
- Measure visitor trends over time and compare performance across locations
| Details | |
|---|---|
| Manufacturer's Code | MR36-HW |
| Output Power | 20dBm |
| Frequency Range | 2.4GHz and 5GHz |
| Interfaces | (1) 10/100/1000 Ethernet Ports |
| Wireless standards | 802.11 a/b/g/n/ac/ax |
| Temperature Range | 0 °C to 40 °C |
| PoE In | 37 - 57 V (802.3af compatible) |
| Alternative Power Method | 12 V DC input |
| Max Power consumption | 15W max (802.3af) |
| Antenna gain dBi | 5.4 dBi gain @ 2.4 GHz, 6 dBi gain @ 5 GHz |
| MIMO | SU-MIMO, UL MU-MIMO** and DL MU-MIMO support ed |
| Dimensions | 25 cm x 12 cm x 3.6 cm |
| Details | |
|---|---|
| Warranty | Lifetime hardware warranty with advanced replacement included |
| Mounting | Ceiling tile rail (9/16, 15/16, or 1 1/2" flush or recessed rails), assorted cable junction boxes |
| Extras | Bubble level on mounting cradle for accurate horizontal wall mounting |
2.4GHz , 5GHz
1Gbps
Wi-Fi 6
PoE (802.3af/at)
