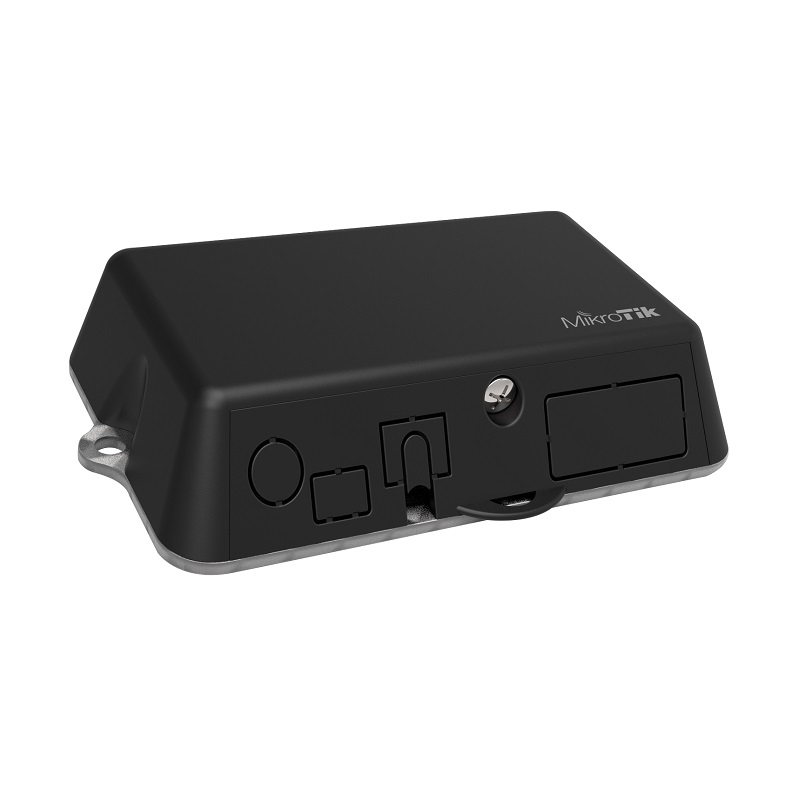

MikroTik RB912R-2nD-LTm&EC200A-EU LtAP mini LTE Access Point Cellular kit (2024) with added B28 support.
Tiny, affordable weatherproof access point with a built-in LTE modem and GPS. Add extensive networking and tracking options to your vehicle without breaking the bank! This is a 2024 refresh with added B28 band support.
LtAP Mini LTE kit is a compact and rugged wireless access point designed to keep your vehicle connected wherever you go. Whether you’re riding through the Great Outdoors or navigating busy urban streets, this tiny device ensures you’re always online and ready to upload location data.
LtAP mini has a special extra-durable enclosure with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for tracking moving vehicles like cars, buses or trains.
There’s an Ethernet port for your wired devices and a classic 2.4 GHz wireless radio. The RS232 serial port gives you console access for debugging.
The power options are as flexible as they get. You have the classic DC jack, passive PoE-in, and a microUSB option. We have even seen users powering the LtAP mini with a portable power bank throughout the day!
The new LTE card offers a better price and the support of the most popular LTE bands, including the B28 band! It is connected to two internal antennas with u.FL connectors, so you can unplug the connectors and add your own external LTE antenna for even better coverage.
MikroTik have provided a simple tracking application example in the RouterOS documentation - to help you start tracking your vehicle’s location in real-time. You will need to connect an external GPS antenna, we recommend using the ACGPSA antenna with IP67 water resistance rating.
Tiny, affordable weatherproof access point with a built-in LTE modem and GPS. Add extensive networking and tracking options to your vehicle without breaking the bank! This is a 2024 refresh with added B28 band support.
LtAP Mini LTE kit is a compact and rugged wireless access point designed to keep your vehicle connected wherever you go. Whether you’re riding through the Great Outdoors or navigating busy urban streets, this tiny device ensures you’re always online and ready to upload location data.
LtAP mini has a special extra-durable enclosure with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for tracking moving vehicles like cars, buses or trains.
There’s an Ethernet port for your wired devices and a classic 2.4 GHz wireless radio. The RS232 serial port gives you console access for debugging.
The power options are as flexible as they get. You have the classic DC jack, passive PoE-in, and a microUSB option. We have even seen users powering the LtAP mini with a portable power bank throughout the day!
The new LTE card offers a better price and the support of the most popular LTE bands, including the B28 band! It is connected to two internal antennas with u.FL connectors, so you can unplug the connectors and add your own external LTE antenna for even better coverage.
MikroTik have provided a simple tracking application example in the RouterOS documentation - to help you start tracking your vehicle’s location in real-time. You will need to connect an external GPS antenna, we recommend using the ACGPSA antenna with IP67 water resistance rating.
Features
- Built-in GPS
- Extensive LTE Band Support
- Extra Durable and Compact Enclosure
- Flexible Powering; PoE-IN, DC Jack, Micro USB
- Console Port for Easy Configuration
- Two miniSIM Slots for Roaming
| Details | |
|---|---|
| Product code | RB912R-2nD-LTm&EC200A-EU |
| CPU | QCA9531 650 MHz |
| Size of RAM | 64 MB |
| Storage | 16 MB |
| 10/100 Ethernet ports | 1 |
| Wireless | Built-in 2.4 GHz 802.11b/g/n, dual-chain |
| Wireless chip model | QCA9531 |
| Wireless regulations | Specific frequency range can be limited by country regulations |
| Antenna beam width | 360° |
| Wireless antenna gain | 1.5 dBi |
| GPS | Built-in MT3337V, with uUFL RF connector and active antenna support |
| PoE in | Yes |
| SIM slot | 2 Mini SIM slots |
| LTE antenna gain | 3.5 dBi (with uFL connector) |
| LTE modem | EC200A-EU |
| LTE FDD bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900MHz) / 20 (800 MHz) / 28 (700MHz) |
| LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) |
| 3G Category | R7 (21Mbps Downlinks, 5.76Mbps Uplink) |
| 3G Bands | 1 (2100MHz) / 5 (850MHz) / 8 (900MHz) |
| 2G Category | Class12 |
| 2G bands | 3 (1800MHz) / 8 (900MHz) |
| Serial port | RS232 (shared with GPS port) |
| Supported input voltage | PoE in: 10 V - 57 V (Passive PoE and 802.3af/at with unshielded cable), DC jack: 8 - 30 V, MicroUSB: 5 V |
| Dimensions | 139 x 77 x 28,5 mm |
| Operating temperature | -40°C .. +70°C tested |
| License level | 4 |
| Operating System | RouterOS v7 |
| Max Power consumption | 7.03 W |
| Details | |
|---|---|
| Power Supply | 24VDC 1.2A PSU |
| Power Injector | RBPOE |
| External DC Cable | Included |
| Fastening Set | Included |
4G , Wi-Fi 4 , GPS/GNSS
RJ45 , USB
600-999MHz , 1700-2100MHz , 2.4GHz
PoE (non standard)
