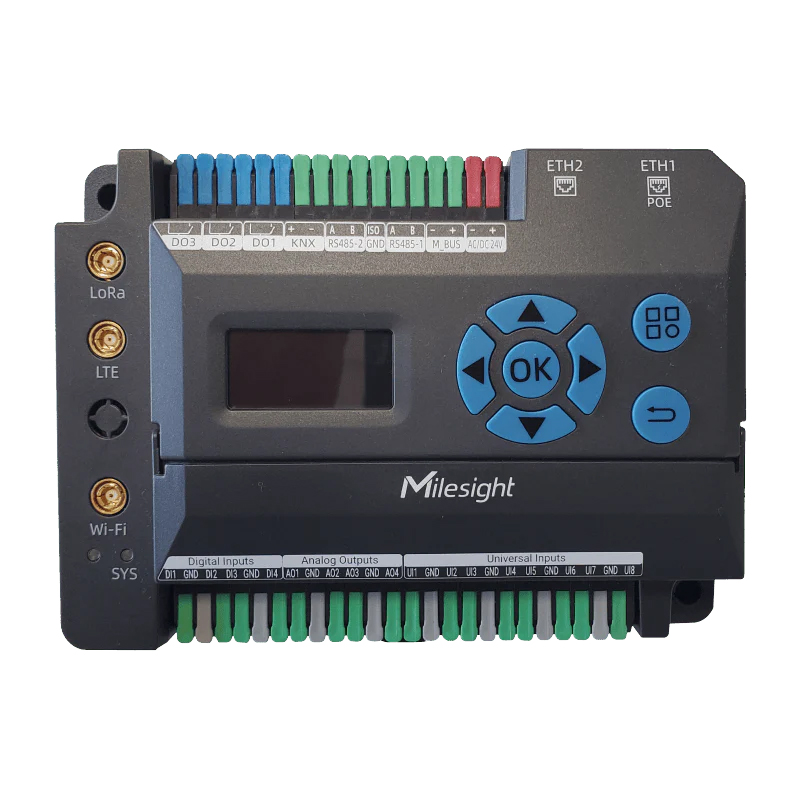

The Milesight EG71 is an intelligent edge LoRaWAN BMS IoT gateway that unifies wired and wireless connectivity in a single device, simplifying data aggregation, protocol conversion, and local control for smart building integration across both new construction and retrofit projects.

Supports Python, Node-RED and Docker, enabling flexible secondary development for customized building logic, data processing, and system integration.

Control logic runs locally on the EG71, reducing latency and cloud dependency while ensuring stable operation during network interruptions. With multiple built-in I/O interfaces, EG71 can directly control field devices and actuators at the edge.

Features

A quad-core industrial-grade processor with large memory ensures stable performance for large-scale device connectivity and edge processing
Comprehensive I/O interfaces with native support for RS485, KNX, M-BUS (UnderDevelopment), LoRaWAN®, Wi-Fi, and Ethernet devices
Equipped with NFC for quick addition for add Milesight devices
Multiple backhaul options including Ethernet, cellular (4G) and Wi-Fi for reliable network redundancy
Supports mainstream protocols such as Modbus, BACnet, MQTT, and HTTP for seamless integration with third-party hardware or software
Provides secondary development capabilities (Python SDK, Node-RED and docker) to build customized BMS systems
Enables security communication with multiple VPN tunnels and firewall rules
Enables centralized and simplified remote device management via Milesight Development Platform

Details
Manufacturer's Code	EG71
CPU	Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
Memory	2GB DDR4 RAM
Flash	32 GB eMMC
Extendable Storage	1 × Micro SD Slot (Internal)
LoRaWAN Antenna Connector	1 × 50 Ω SMB - Female External Connecto
Frequency Bands	CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Sensitivity	-140 dBm Sensitivity @292bps
Output Power	27 dBm Max (500mW)
Protocol	V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C
Ethernet Interface Port	2 × Gbe RJ45 Ports (WAN/LAN Software Switchable)
Interface	Auto MDI/MDIX
Wi-Fi Antenna	1 × 50 Ω SMB - Female External Connector
Standards	IEEE 802.11b/g/n, 2.4 GHz
Mode	AP or Client mode
Security	WPA/WPA2 authentication, WEP/TKIP/AES encryption
Reset Button	1 × RST (Internal)
Console Port	1 × Type-C
Network	4G LTE(CAT1)/GSM
Cellular Band	LTE-FDD B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28/66
SIM Slot	1 (Nano SIM-4FF)
Data Interfaces	2 × RS485, 1 × KNX/TP1, 1 × M-BUS, 8 × Universal Inputs (Software Switchable), 4 × Dry Contact Inputs, 3 × Relay Outputs, 4 × Analog Outputs
Screen	1.3-inch OLED Screen, 128 × 64 Pixels
Screen Buttons	7 × Screen Control Buttons
Power Input	1. 24 V DC/AC by Terminal Block, 2. 802.3 af PoE, 3. 5V/3A by USB Type-C Port1
Power Consumption	Typical 411mA@20V (8.2W), Maximum 562mA@20V (11.24 W)
Dimensions	123 x 90 x 36 mm (4.84 x 3.54 x 1.42 in)
Operating Temperature	-40°C to +60°C (-40°F to +140°F)
Regulatory	CE, CE (RED), FCC
