Description
Specifications
Resources
Package Contents
The Milesight OpenVision Camera Series revolutionizes security by embedding Network Optix VMS Server directly into the camera itself, delivering a VMS-on-edge solution. It provides the full capabilities of a traditional backend VMS while significantly reducing hardware and operational costs. Camera as a server, no NVR and additional server needed!
High accuracy and real-time people counting based on AI algorithm, with statistic reports for further analysis, helps to make fast decisions on security management and increase the operational efficiency of the business.
The starlight camera is able to deliver high detailed color images even in the low light environments reaching 0.002Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting. The IR LEDs technology has been upgraded to provide videos with a viewing range of up to 140m. Two LEDs on the top work as High Beam, while the other two on the bottom as Low Beam for better image clarity and quality regardless of the object distance. Also, the Low Beam and High Beam’s brightness can be adjusted manually or automatically on the basis of the zoom ratio.
High accuracy and real-time people counting based on AI algorithm, with statistic reports for further analysis, helps to make fast decisions on security management and increase the operational efficiency of the business.
The starlight camera is able to deliver high detailed color images even in the low light environments reaching 0.002Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting. The IR LEDs technology has been upgraded to provide videos with a viewing range of up to 140m. Two LEDs on the top work as High Beam, while the other two on the bottom as Low Beam for better image clarity and quality regardless of the object distance. Also, the Low Beam and High Beam’s brightness can be adjusted manually or automatically on the basis of the zoom ratio.
Features
- A fully functional Nx Witness server embedded in camera
- Support local recording with 1TB storage capability
- Enable advanced AI analytics event and metadata for Milesight cameras
- Data is more secure without streaming video between camera and server
- Connect directly to Nx Cloud, enables direct communication between camera and client
- Stay ahead with Nx's latest innovations, including Nx AI Manager and more.
- vGRID SaferCity Platform Compliant
| Details | |
|---|---|
| Product Code | MS-C8266-RFIPKG1 |

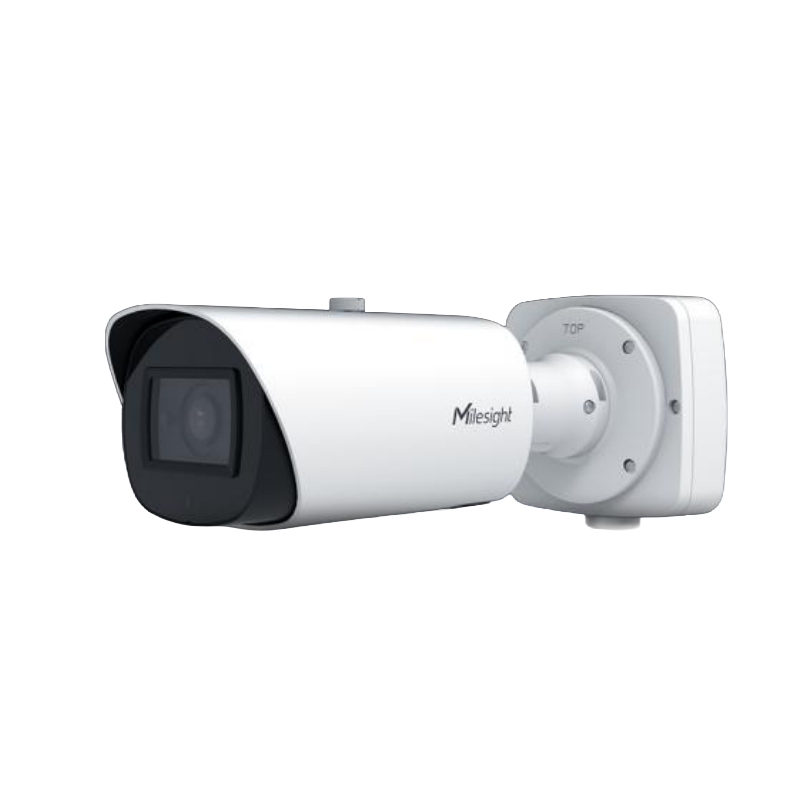

| Product Name | 8MP OpenVision Pro Bullet Plus Camera |
| Min. Illumination | Color: [email protected] B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| DORI Distance | D: 98.5~212M O: 38.5~83M R: 19~41.5M I: 9.5~20.5M |
| S/N | >55dB |
| Illuminator Number | 6 |
| IR Wave Length | 850nm |
| Illumination Distance | Up to 80m |
| Illuminator On/Off Control | Auto/Manual |
| Lens | Motorized [email protected] |
| Field of View | H105°~46.5°/D122.5°~53.5°/V55.5°~26° |
| Mount | Φ17 |
| Focus Control | Auto/Manual |
| Close Focus Distance | W: 1m; T: 1.5m |
| Aperture | Max. F1.2 |
| Iris Type | P-Iris |
| Camera Angle Adjustment | Pan: 0°~360°, Tilt: 0°~90°, Rotation: 0°~360° |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 60fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720)50Hz: 50fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360) 50Hz: 50fps@(704x576, 640x480, 640x360) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360) |
| Quaternary Stream | 60Hz: 10fps@(1280*720), 30fps@(704*576, 640*480, 640*360) 50Hz: 10fps@(1280*720), 25fps@(704*576, 640*480, 640*360) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas(Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Image Rotation | Rotating 180°, Flip Horizontal, Flip Vertical, Clockwise 90°, Anticlockwise 90° |
| Image Enhancement | BLC, HLC, DNR, AWB, Defog, AGC, Anti-flicker, Deblur, LDC |
| Additional Zoom | Up to 32X |
| Network Storage | NAS (Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, LLDP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS1.2 |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Power Port | DC5521 |
| Audio I/O | 1/1 |
| Alarm I/O | 2/2 (Alarm Output 2: wet contact, 10mA 12V DC) |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256Kbps |
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection,Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Simultaneously detect up to 50 targets and capture humans and vehicles in real time.Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection & Face Attribute Recognition | Detect and capture faces, get real-time snapshots. The attributes include Age, Gender, Glasses, Mask and Cap. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle. Support regional people counting for up to 4 detection areas. |
| Heat Map | The built-in statistical behavior analysis enables you to identify the busiest areas within the environment |
| Helmet Detection | Detects whether individuals are wearing safety helmets. Triggers an alarm when a person is identified without a helmet, enhancing safety compliance on-site. |
| One-Click Disarm | Support |
| Basic Event | Motion Detection, Tamper Detection, Audio Alarm, External Input, External Output, etc. |
| Exception | Network Disconnection, IP Address Conflict, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, etc. |
| Event Action | FTP Upload, Snapshot, SMTP Upload, SD Card Record, External Output, Play Audio, SIP Phone, HTTP Notification, etc. |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| TPM 2.0 | Support |
| Watermark | Support |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95% RH (Non-condensing) |
| CPU | Dual-core 64-bit Arm CA53 process |
| Details | |
|---|---|
| Contents | Warranty card, QSG |
| Power Supply | Not Included |
vGRID
100Mbps
RJ45
DC 12V/2A , POE+ (802.3at)
