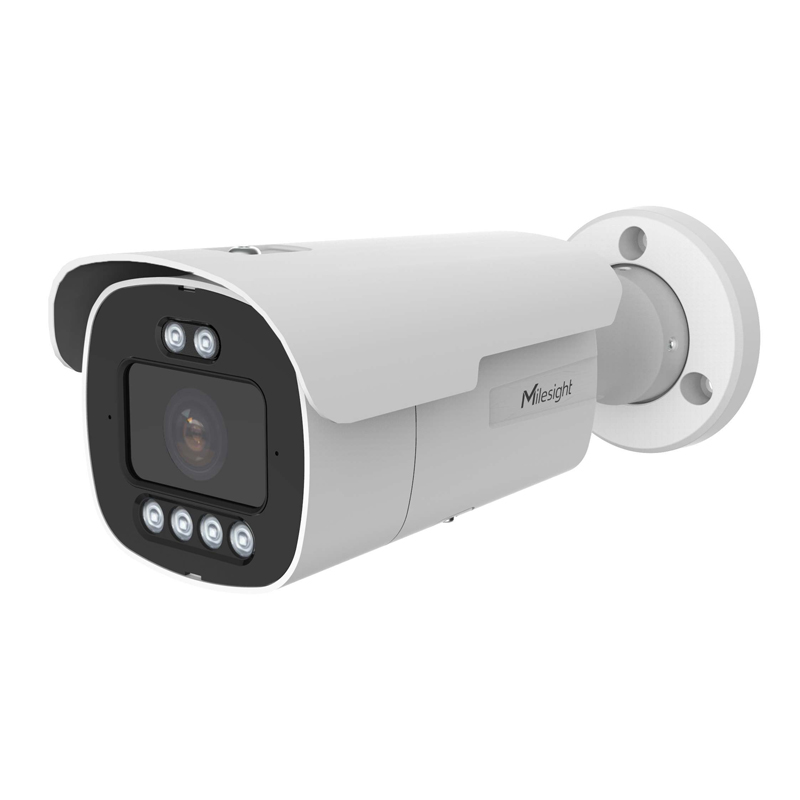

Milesight 4K NDAA AI Motorized TrueColor Bullet Network Camera

$762.00 +GST
Login for your price
3 In Stock
SKU: MS-CQ8168-FHYPG1
Milesight 4K NDAA AI Motorized TureColor Bullet Network Camera
Warranty
Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*
Supported Platforms
vGRID
Description
Specifications
Resources
Package Contents
The Milesight Q Series Camera combines compact design with advanced features like TrueColor, On-Guard, VCA 2.0, and MSense. Offering exceptional performance in low-light conditions, it's the perfect choice for reliable, everyday security.

Designed with security at its core, the Milesight Q Series Camera features VCA 2.0 technology, powered by the enhanced chip. With an AI recognition range of up to 75 meters and an accuracy rate of over 99%, VCA 2.0 significantly reduces false alarms, ensuring reliable, precise detection while minimizing disturbances and potential losses.

The Milesight Q Series Camera uses MSense technology for advanced object counting, including People Counting, Vehicle Counting and Heat Map. It also features Face Capture, allowing it to capture the image of face and send to the backend platform for smart search and investigation. These features provide valuable insights to optimize operations and improve security management.

Provides stable, full-color surveillance on the move — with flashing lights, real-time voice alerts, and two-way audio. Rugged and road-tested over 1000+ KM, built to perform with DIS, IP67 & IK10 protection

Milesight demonstrates its commitment to sustainability by using eco‑friendly materials in the packaging of the Q Series Camera. By safeguarding security, we also contribute to protecting the planet, supporting a greener, more sustainable future.

The Milesight Q Series Camera combines a compact design with robust functionality, featuring built-in microphones and speaker, multi-interface support, and up to 1TB SD card storage. With IP67 and IK10 industrial-grade protection, it's built to withstand even the toughest environments.

The Milesight Device Portal is a remote management platform designed for operation & maintenance teams. It allows bulk device management, status monitoring, and pre-configuration with RPS. Once powered on and connected to the network, devices automatically retrieve pre-configured files, simplifying setup and improving efficiency. Milesight Q Series Camera offers seamless compatibility with Milesight Software. It takes a step further with deep compatibility for Network Optix and Axxonsoft via Milesight One API/ plugin, while Onvif guarantees broad compatibility with any third-party VMS, giving you the freedom to choose the perfect solution.
Features
  • 8MP
  • AI ISP & F1.2 Aperture & 1/1.8”Sensor
  • Smart Hybrid Light
  • Blue & Red Flashing Lights
  • Up to 60m IR Distance
  • Built-in Dual Mic & Speaker
  • VCA 2.0 & Object Counting & Face Capture & Heat Map
  • Electric Image Stabilization (EIS)
  • One Screwdriver Design
  • IP67 & IK10
Details
ModelMS-CQ8168-FHYPG1
Image Sensor1/2.65” Progressive Scan CMOS
Min. Illumination0.004 [email protected] (Color, 30 IRE) 0 lux (Illuminator on)
WDR120dB Super WDR
Shutter Time1/100000s ~ 1s
Day/Night ModeDay / Night / Auto / Customize / Schedule
DORI DistanceD: 93.9m~304m O: 37m~120m R: 18.5m~59.8m I: 9.3m~29.9m
S/N>56dB
Illuminator Type4 x Smart Hybrid Lights (Mixed IR and White Warm Lights)
IR Wave Length850nm
Illumination DistanceUp to 60m (IR Light), Up to 60m (White Warm Light)
Illuminator On/Off ControlAuto, Manual
Smart Hybrid LightsSupport
Red and Blue Flashing Lights1 x Red Light and 1 x Blue Light
Lens[email protected]
ApertureF1.2
Field of ViewH100.2°~H27°, V117.9°~V31.1°, D51.9~D15.1°
Close Focus Distance0.5m
Camera Angle AdjustmentPan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360°
MountM16
Max. Image Resolution3840x2160
Primary Stream60Hz: 30fps@ (3840x2160, 3200x1800, 2688x1520, 1920x1080, 1280x720)50Hz: 25fps@ (3840x2160, 3200x1800, 2688x1520, 1920x1080, 1280x720)
Secondary Stream60Hz: 30fps@ (704x576, 640x480, 640x360) 50Hz: 25fps@ (704x576, 640x480, 640x360)
Tertiary Stream60Hz: 30fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360) 50Hz: 25fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingBrightness / Contrast / Saturation / Sharpness
Image EnhancementBLC, HLC, 2D DNR, 3D DNR, AWB, Defog, AGC, LDC, Anti-flicker, Deblur, etc.
Image RotationOff, Rotating 180°, Flip Horizontal, Flip Vertical, Clockwise 90°, Anticlockwise 90°
Built-in MicrophoneYes, Dual Microphone
Built-in SpeakerYes, max.sound pressure level: 10cm: 95dB
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Ethernet1 x RJ45 10M /100M Ethernet Port
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, LLDP, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS 1.2
Video AnalysisVCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed
Object Counting & ReportCount the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
Heat MapThe built-in statistical behavior analysis enables you to identify the busiest areas within the environment
Face CaptureCapture faces, get real-time snapshots and integrate with third-party systems for advanced analysis
One-Click DisarmSupport
Basic EventMotion Detection, Tamper Detection, Audio Alarm, External Input, External Output, etc.
ExceptionNetwork Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, etc.
Event ActionFTP Upload, SMTP Upload, Snapshot, Record, External Output, Play Audio, Alarm to SIP Phone, HTTP Notification, Warning Light, etc.
WatermarkSupport
StorageSupport Micro SD/SDHC/SDXC Card Local Storage, up to 1TB
SIP/VoIP SupportYes, Voice & Video-over-IP
System CompatibilityONVIF Profile G&M&S&T, One API
Working Temperature-40℃ ~ 60℃
Power SupplyPoE (802.3at) / DC 12V±25%
Working Humidity0~95% RH (Non-condensing)
Surge Protection4KV
Power ConsumptionMin.: 3.74W (DC 12V),4.59W (PoE) Max.: 11.91W (DC 12V), 14.35W (PoE)
Casing MaterialMetal
Net WeightApprox. 1kg
Gross WeightApprox. 1.2Kg
Dimensions97x88x230mm
Warranty3 Years / 5 Years (Optional)
EMCCE-EMC (EN 55032, EN 55035, EN61000), FCC (PART 15B)
SafetyCE-LVD (EN IEC 62368-1)
EnvironmentCE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU)
ProtectionIP67, IK10
Details
ContentsWarranty card, QSG, Wall mount
Power SupplyNot included
