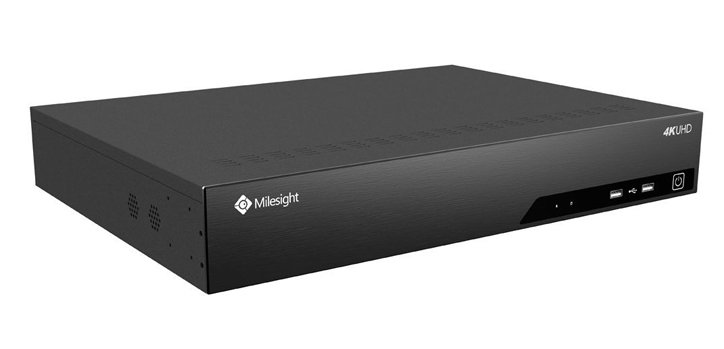

Milesight 16-Channel ONVIF Compatible NVR with built in 16 port 10/100Mbps switch with 802.3af/at PoE Ethernet, solid 4K decoding and display capabilities, Milesight 4K H.265 PoE NVR 7000 Series can synchronously decode up to 4-CH 4K UHD and 16-CH 1080P with the finest details to guarantee real-time video monitoring.
Milesight 4K H.265 PoE NVR 7000 Series supports Multi-video Output in two ways: Independent Outputs enable multiple outputs to display various channels independently, while Synchronous Outputs appoint the same channel to be displayed at different locations synchronously.
Milesight 4K H.265 PoE NVR 7000 Series offers a true plug-and-play with the built-in independent PoE switches, where cameras can be easily connected without a lot of network infrastructure work, ensuring you to begin the efficient monitoring in no time.
Flexible storage options including HDD and NAS in Milesight 4K H.265 PoE NVR 7000 Series offer you greater flexibility to address the needs for versatile storage.
Based on the CPU capabilities, Transcoding guarantees fluid video experience especially for remote playback even in a poor network connection by reducing the stream data via lowering resolution, bit rate, or frame rate.
Milesight 4K H.265 PoE NVR 7000 Series features a range of functions to ensure the easy-to-use system, including Easy Playback, Easy Backup, File Management and Easy Configuration.
As a backup operation, ANR can automatically store video data on the camera storage card when network is disconnected and retransfer the recorded video to NVR after network recovers, guaranteeing a reliable system.
Preconfigured with industry-standard RAID levels (0/1/5/6/10), Milesight 4K H.265 PoE NVR 7000 Series can configure the system based on the specific redundancy and performance requirements to ensure more reliable storage against data loss.
Milesight 4K H.265 PoE NVR 7000 Series provides you access to Milesight wide range of cameras, ensuring the seamless compatibilities with Milesight advanced functions, including PTZ/Fisheye Auto Tracking, PTZ Manual Tracking, Heat Map and Fisheye Dewarping.
Milesight 4K H.265 PoE NVR 7000 Series comes with a whole array of ports such as an HDMI port, a VGA port, 3 USB ports, 16/24 PoE ports, Alarm I/O, Audio I/O and a LAN port, etc. The full set of interfaces provides all necessary features for effective surveillance
*Please Note: HDDs need to be purchased separately
Milesight 4K H.265 PoE NVR 7000 Series supports Multi-video Output in two ways: Independent Outputs enable multiple outputs to display various channels independently, while Synchronous Outputs appoint the same channel to be displayed at different locations synchronously.
Milesight 4K H.265 PoE NVR 7000 Series offers a true plug-and-play with the built-in independent PoE switches, where cameras can be easily connected without a lot of network infrastructure work, ensuring you to begin the efficient monitoring in no time.
Flexible storage options including HDD and NAS in Milesight 4K H.265 PoE NVR 7000 Series offer you greater flexibility to address the needs for versatile storage.
Based on the CPU capabilities, Transcoding guarantees fluid video experience especially for remote playback even in a poor network connection by reducing the stream data via lowering resolution, bit rate, or frame rate.
Milesight 4K H.265 PoE NVR 7000 Series features a range of functions to ensure the easy-to-use system, including Easy Playback, Easy Backup, File Management and Easy Configuration.
As a backup operation, ANR can automatically store video data on the camera storage card when network is disconnected and retransfer the recorded video to NVR after network recovers, guaranteeing a reliable system.
Preconfigured with industry-standard RAID levels (0/1/5/6/10), Milesight 4K H.265 PoE NVR 7000 Series can configure the system based on the specific redundancy and performance requirements to ensure more reliable storage against data loss.
Milesight 4K H.265 PoE NVR 7000 Series provides you access to Milesight wide range of cameras, ensuring the seamless compatibilities with Milesight advanced functions, including PTZ/Fisheye Auto Tracking, PTZ Manual Tracking, Heat Map and Fisheye Dewarping.
Milesight 4K H.265 PoE NVR 7000 Series comes with a whole array of ports such as an HDMI port, a VGA port, 3 USB ports, 16/24 PoE ports, Alarm I/O, Audio I/O and a LAN port, etc. The full set of interfaces provides all necessary features for effective surveillance
*Please Note: HDDs need to be purchased separately
Features
- Built in 16 x 10/100Mbps switch with 802.3af/at PoE
- ONVIF Compatible
- 16 CH Video Input
- 4 x 10TB Storage Bays
- Multi-video Output
- Supports Dual Streaming
- 4K Streaming
- HDMI Out
- RAID levels (0/1/5/6/10) Supported
- ANR
- Versatile Interfaces
| Details | |
|---|---|
| Product Code | MS-N7016-PG |
| Network Video Input | 16-CH |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF |
| Synchronous Playback | 6*(30fps @8MP), 8*(30fps @6MP), 9*(30fps @5MP), 12*(30fps @4MP), 16*(30fps @3MP)16*(30fps @2MP), 16*(30fps @1080P), 16*(30fps @720P)、16*(30fps @D1) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264 |
| Audio Format | G.711/AAC/G.722/G.726 |
| SATA | 4 x SATA HDD (3.5”) Bays |
| Capacity | Up to 10TB capacity for each HDD |
| Array Type | RAID0, RAID1, RAID5, RAID6, RAID10 |
| Recording Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Snapshot Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Playback Type | General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback |
| Backup | Video backup, Image Backup |
| Network Protocols | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS |
| Network Interface | 1*RJ45 10/100/1000Mbps |
| USB Interface | 1*USB 3.0; 2*USB 2.0 |
| Audio Input/Output | 1*RCA |
| Alarm Input/Output | 16-CH/4-CH |
| Interface | 16*RJ45 10/100Mbps |
| Power Output | ≤200W |
| Supported Standard | IEEE 802.3af/at |
| Compatibility | ONVIF, API |
| Advanced Function | ANR |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed |
| Keyboard Control | Milesight Keyboard(MS-K01) |
| Power Supply | DC 12V 50Hz∼60Hz |
| Consumption | ≤20W(Without HDD, without enabling PoE) |
| Working Conditions | Temperature: -10℃∼+55℃ / Humidity: 10%∼90% |
| Dimensions | 440mm(W)X251mm(D)X44.4mm(H), Rack Mountable Chassis(1.0U Standard) |
| Weight | 5Kg |
| Warranty | 3 Years |
| Details | |
|---|---|
| Contents | QSG, Mounting hardware, Wall mount, Warranty Card, HDD Bracket |
| Power Supply | Included |
1Gbps
RJ45 , USB
PoE (802.3af/at)
