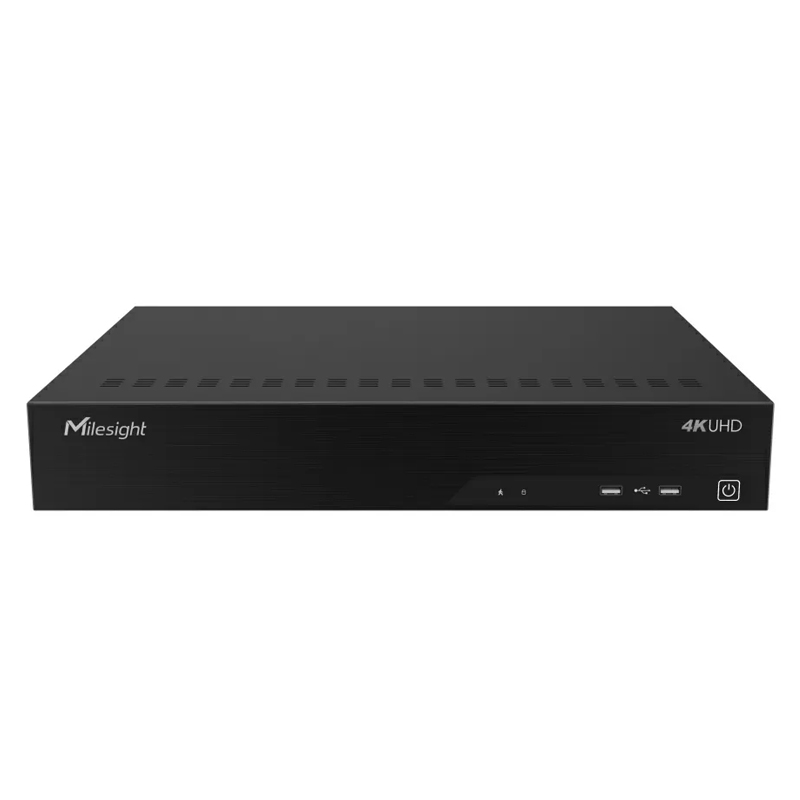

Milesight 32-Channel ONVIF Compatible pro 4K UHD NVR with Multi Video output. Equipped with solid 4K decoding and display capabilities, Milesight 4K H.265 Pro NVR 7000 Series can synchronously decode up to 4-CH 4K UHD and 16-CH 1080P with the finest details to guarantee real-time video monitoring. The Milesight 4K H.265 Pro NVR 7000 Series also supports Multi-video Output in two ways: Independent Outputs enable multiple outputs to display various channels independently, while Synchronous Outputs appoint the same channel to be displayed at different locations at the same time.
Based on the CPU capabilities, Transcoding guarantees a fluid video experience especially for remote playback even with a poor network connection by reducing the stream data via lowering the resolution, bit rate, or frame rate. It also features a range of functions to ensure an easy-to-use system, including Easy Playback, Easy Backup, File Management and Easy Configuration.
Preconfigured with industry-standard RAID levels (0/1/5/6/10), the Milesight 4K H.265 Pro NVR 7000 Series can configure the system based on the specific redundancy and performance requirements to ensure reliable storage with out data loss. The 7000 series also supports N+1 Hot Spare. When any one of the master NVRs fail, the slave NVR will replace it to keep the system working, and send the data back when the master NVR recovers, ensuring data integrity and reliability.
Dual network ports provide three network working modes for more independence, more throughput or more stabilities according to the particular application and needs.
*Please Note: HDDs need to be purchased separately
Based on the CPU capabilities, Transcoding guarantees a fluid video experience especially for remote playback even with a poor network connection by reducing the stream data via lowering the resolution, bit rate, or frame rate. It also features a range of functions to ensure an easy-to-use system, including Easy Playback, Easy Backup, File Management and Easy Configuration.
Preconfigured with industry-standard RAID levels (0/1/5/6/10), the Milesight 4K H.265 Pro NVR 7000 Series can configure the system based on the specific redundancy and performance requirements to ensure reliable storage with out data loss. The 7000 series also supports N+1 Hot Spare. When any one of the master NVRs fail, the slave NVR will replace it to keep the system working, and send the data back when the master NVR recovers, ensuring data integrity and reliability.
Dual network ports provide three network working modes for more independence, more throughput or more stabilities according to the particular application and needs.
*Please Note: HDDs need to be purchased separately
Features
- ONVIF Compatible
- Up to 40TB capacity (HDDs purchased separately)
- Supports Dual Streaming
- 4K Streaming
- Multi Video Output
- UHD & 16-CH 1080P
- Versatile Interfaces
- RAID Support
- N+1 Hotspare
| Details | |
|---|---|
| Product Code | MS-N7032-G |
| Network Video Input | 32-CH |
| Bandwidth Requirement | 256Mbps or 200Mbps(When RAID is enabled) (Incoming), 256Mbps or 200Mbps(When RAID is enabled) (Outgoing) |
| HDMI Output | 1-CH, Resolution: 3840x2160/60Hz, 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output) |
| VGA Output | 1-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF |
| Synchronous Playback | 6*(30fps @8MP),8*(30fps @6MP), 9*(30fps @5MP), 12*(30fps @4MP), 16*(30fps@3MP), 24*(30fps@1080P), 32*(30fps@720P),32*(30fps@D1) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264 |
| Audio Format | G.711/AAC/G.722/G.726 |
| SATA | 4*SATA HDD (3.5”) |
| Capacity | Up to 10TB capacity for each HDD |
| Array Type | RAID0, RAID1, RAID5, RAID6, RAID10 |
| Synchronous Recording | 32*5MP |
| Recording Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Snapshot Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Playback Type | General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback |
| Network Protocols | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS |
| Network Interface | 2*RJ45 10/100/1000Mbps |
| USB Interface | 1*USB 3.0; 2*USB 2.0 |
| Serial Interface | 1*RS-485 Series Port for PTZ, 1*RS-232 Series Port for Console, 1*RS-485 Series Port for Keyboard |
| Audio Input/Output | 1*RCA/1*RCA |
| Alarm Input | 16-CH |
| Alarm Output | 4-CH |
| Compatibility | ONVIF, API |
| Advanced Function | ANR, N+1 Hot Spare |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting |
| Keyboard Control | Milesight Keyboard(MS-K01) |
| Power Supply | AC 100V∼240V 50Hz∼60Hz |
| Consumption | ≤15W(Without HDD)\ |
| Working Conditions | Temperature: -10-55 / Humidity: 10%-90% |
| Dimensions | 440mm(W)X320mm(D)X66.8mm(H), Rack Mountable Chassis (1.5U Standard) |
| Weight | 4.1Kg |
| Warranty | 3 Years |
| Details |
|---|
100Mbps
RJ45
PoE (802.3af/at)
