Description
Specifications
Resources
Package Contents
Accurately detect and alert violation events such as No-plate Vehicle Detection, Specific Lane Detection, Reverse Driving Detection, Black/White List Detection and Vehicle Event Detection for mission-critical road traffic management.
The vehicle counting result based on vehicle type and various vehicle features can be shown intuitively in camera's live view and the camera can also generate useful report insights to further enhance traffic management capabilities.
Beyond vehicle feature and license plate recognition, Milesight AI Road Traffic Camera can link with any regular cameras to capture the evidence. With seamless triggering between Milesight traffic camera and regular camera, users can easily provide solid and convincible evidence including LPR results as well as overview snapshots.
Relevant videos can be found quickly by searching for only a portion of the target suspect vehicle's features, such as vehicle brand, type & color, plate color, plate number, direction and etc., ensuring efficient event investigations and intelligent road traffic monitoring. It also supports manual export and auto export for easy management.
Based on AI algorithm, the LPR function provides value-added data via a pre-trained deep learning model and continuously training to algorithms automatically. Milesight AI Road Traffic Pro Bullet Plus Camera can not only recognize vehicle plates in real time, but also identify various vehicle features, like vehicle type, brand, color, etc., generating reliable traffic insights to improve safety and mobility.
The vehicle counting result based on vehicle type and various vehicle features can be shown intuitively in camera's live view and the camera can also generate useful report insights to further enhance traffic management capabilities.
Beyond vehicle feature and license plate recognition, Milesight AI Road Traffic Camera can link with any regular cameras to capture the evidence. With seamless triggering between Milesight traffic camera and regular camera, users can easily provide solid and convincible evidence including LPR results as well as overview snapshots.
Relevant videos can be found quickly by searching for only a portion of the target suspect vehicle's features, such as vehicle brand, type & color, plate color, plate number, direction and etc., ensuring efficient event investigations and intelligent road traffic monitoring. It also supports manual export and auto export for easy management.
Based on AI algorithm, the LPR function provides value-added data via a pre-trained deep learning model and continuously training to algorithms automatically. Milesight AI Road Traffic Pro Bullet Plus Camera can not only recognize vehicle plates in real time, but also identify various vehicle features, like vehicle type, brand, color, etc., generating reliable traffic insights to improve safety and mobility.
Features
- ONVIF Profile G & Q & S & T, API Compatible
- Supports 802.3at PoE
- Traffic Violation Detection
- Intelligent AI-powered LPR Algorithm
- Traffic Flow Statistics
- Evidence Camera Linkage
- 4X AF Lens
- Up to 4K Ultra High Definition
- 1/1.8'' Sensor & 0.005Lux Starlight
- 60fps High Frame Rate
| Details | |
|---|---|
| Product Code | TS8266-X4RIPG1 |

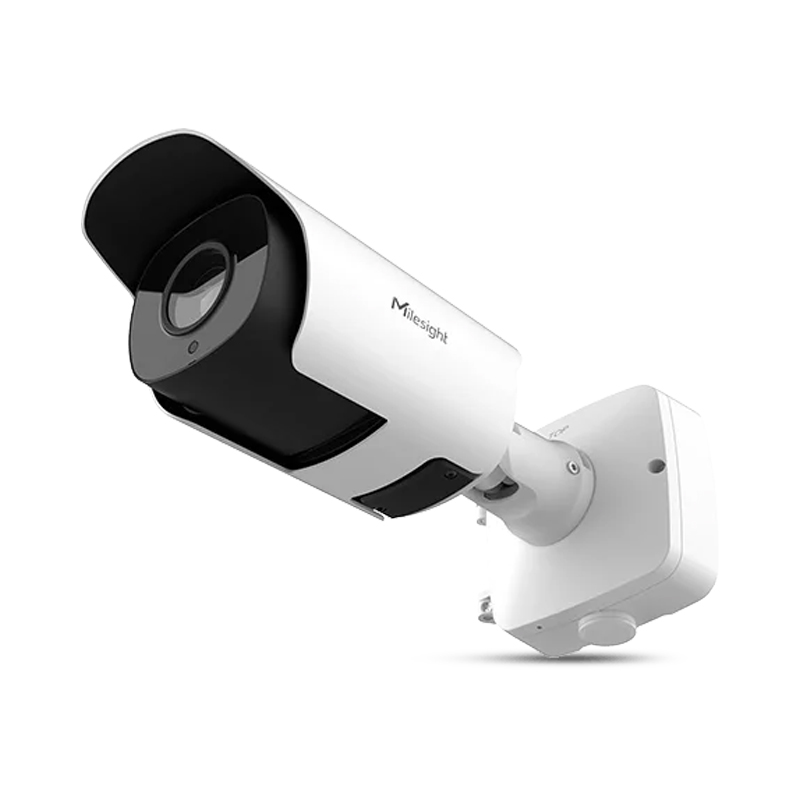

| Product Name | NDAA AI Road Traffic Pro Bullet Plus Camera |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: [email protected] B/W: 0Lux with IR on |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Wave Length | 850nm |
| Illumination Distance | Up to 60m |
| S/N | >55dB |
| Lens | 8~32mm, 4X Optical Zoom |
| Field of View | H44°~H13°/D51°~D15°/V25°~V7° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Aperture | F1.6~F1.7 |
| P-Iris | Support |
| Iris Control | Auto |
| Max. Vehicle Speed | 120km/h |
| Capture Rate | 99% |
| Recognition Accuracy | 98% |
| Coverage | 3 lanes |
| Country Region Supported | More than 80 countries and regions |
| ANPR Distance | Up to 50m |
| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection * Vehicle Color and Plate Color identification are not supported in low-light or night conditions. |
| Smart Traffic Function | Evidence Camera Linkage, Specific Lane Management, Vehicle Classification & Counting |
| White/Black List | Up to 20,000 records inside the camera |
| LPR Smart Search | Support |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm Input | 2 |
| Alarm Output | 2 (1 relay output; 1 open collector output, max. 12V DC/10mA) |
| Wiegand | 1 |
| RS485 | 1 |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 60fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) 50Hz: 50fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Sharpness |
| Network Storage | NAS (Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| System Compatibility | API, MQTT, HTTP, TCP, ONVIF Profile G & M & S & T |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, EIS, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Black/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95% (Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V±10% |
| Power Consumption | Min.: 5.1W (DC 12V), 6.2W(PoE) Max.: 15.9W (DC 12V), 19.1W(PoE) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Surge Protection | 4KV |
| Weight | 1300g |
| Dimensions | 346mmX134mmX126mm |
| Warranty | 3/5 Years |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B), RCM-EMC (AS/NZS CISPR 32:2015+A1(2020)) |
| Safety | CE-LVD (EN IEC 62368-1), RCM-LVD (IEC 62368-1:2018) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Details | |
|---|---|
| Contents | Warranty card, QSG, Wall mount Junction box, mounting screws and tightening tools included |
| Power Supply | Not Included |
