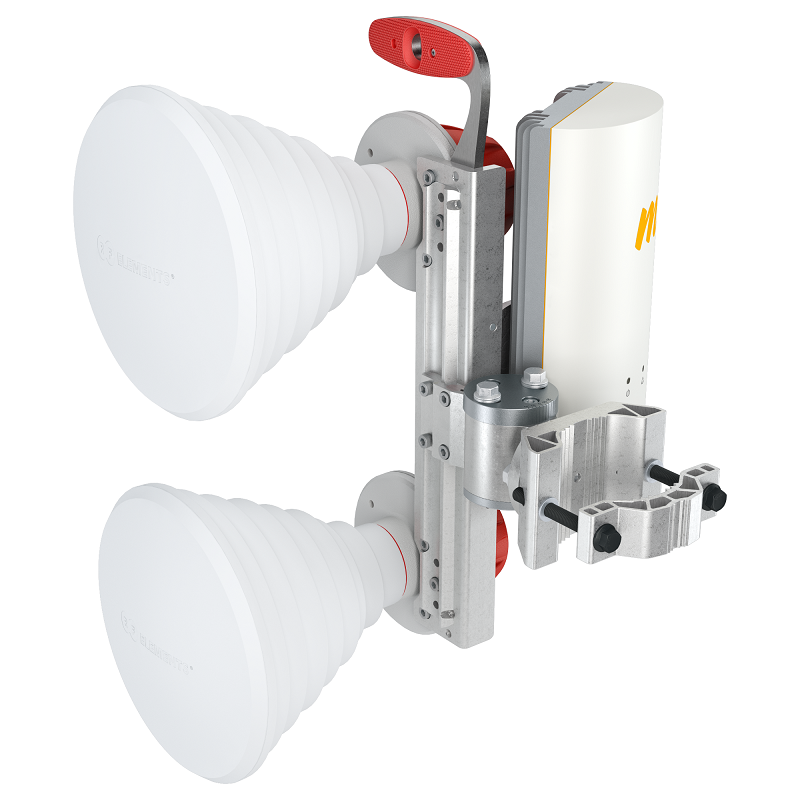

RF Elements Twin Horn Bracket. Twin Horn Bracket (THB) makes installation of dual horn setup easy and fast. THB is designed for installation of two Gen2 Symmetrical Horns in identical azimuth and elevation setup, specifically in dual N connector or dual TPA-SMA setup.
THB also provides integrated mounting option for 4x4 radios available on the market, such as Cambium ePMP 3000 and Mimosa® A5c. The radio and antennas are integrated on the same structure, enabling easy installation in the field. Radio mount is detachable, so the THB can be used with any 3rd party radio that is mounted separately.
When using Twin Horn Bracket with TwistPort antennas, all radios for which we offer TwistPort adaptor are compatible with this combination except: Cambium Networks ePMP 1000 series, ePMP 3000L AP, ePMP 300 CSM, and ePMP Force 400C - these radios are too long to fit them on Twin Horn Bracket.
THB also provides integrated mounting option for 4x4 radios available on the market, such as Cambium ePMP 3000 and Mimosa® A5c. The radio and antennas are integrated on the same structure, enabling easy installation in the field. Radio mount is detachable, so the THB can be used with any 3rd party radio that is mounted separately.
When using Twin Horn Bracket with TwistPort antennas, all radios for which we offer TwistPort adaptor are compatible with this combination except: Cambium Networks ePMP 1000 series, ePMP 3000L AP, ePMP 300 CSM, and ePMP Force 400C - these radios are too long to fit them on Twin Horn Bracket.
Features
- Designed for Dual Horn Setup
- THB and TPA Compatibility
- Supports Cambium ePMP3000 and Mimosa A5c
| Details | |
|---|---|
| Manufacturer's Product Code | THB |
| Materials | Aluminium and Zinc Alloy, Stainless Steel, UV stabilized and weather resistant ABS plastic |
| Operating Temperature | -40°C to +60 °C (-40°F to +140°F) |
| Flame Rating | UL 94 HB |
| Wind Survival | 160 km/h |
| Pole Mounting Diameter | 40-80 mm (recommend as to close to 80mm as possible) |
| Radio Compatibility | Cambium NetworksTM ePMP 3000 and Mimosa A5c |
| Antenna Compatibility | Any Symmetrical Horn TP Antennas Gen2 with TPA-SMA, any Symmetrical Horn CC Antennas Gen2 |
| Details |
|---|
