Ubiquiti UniFi Dream Wall All-in-one Internet Gateway

$2,233.00 +GST

1 In Stock

SKU: UDW

Quantity	Price
1 - 4	$2 233.00
5 - 9	$2 177.18
10 - 19	$2 121.35
20+	$2 009.70

Ubiquiti UniFi Dream Wall All-in-one internet gateway, WiFi access point, and UniFi Console with an abundance of PoE ports

Warranty

Back to: Network Management

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Description
Reviews

Description

Specifications

Resources

Package Contents

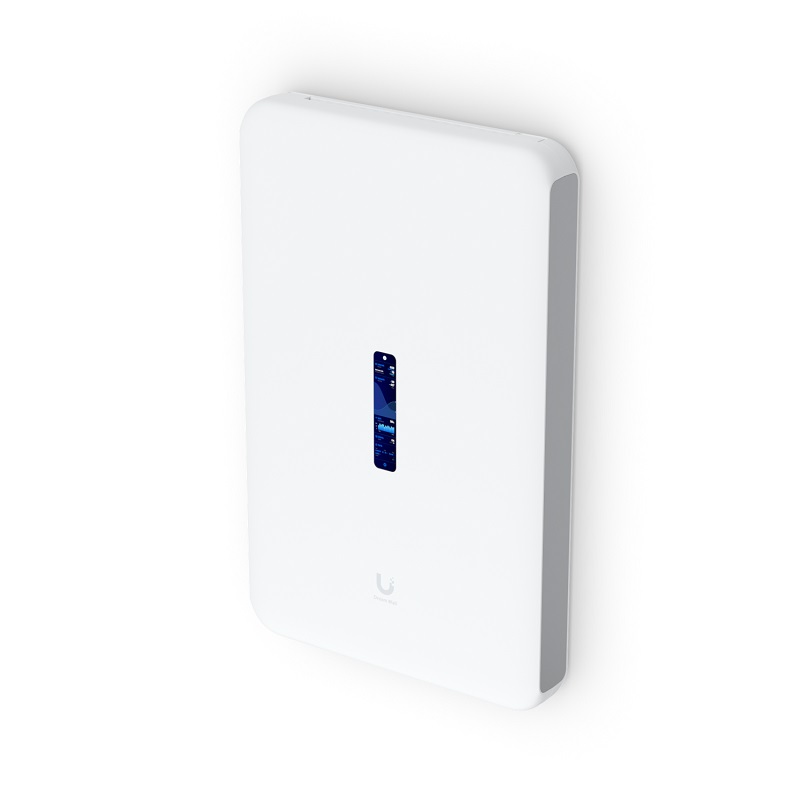

The Ubiquiti UniFi Dream Wall (UDW) is a Wall-mountable UniFi Gateway Console with a built-in high-speed access point, network video recorder, and PoE switch.

Performance
- Redundant WAN with failover and load balancing
- WiFi QoS with UniFi APs
- Application, domain, and country-based QoS
- Application and device type identification
- Additional internet failover with LTE Backup
- Internet quality and outage reporting

Next-generation security
- Application-aware firewall rules
- Signature-based IPS/IDS threat detection
- Content, country, domain, and ad filtering
- VLAN/subnet-based traffic segmentation
- Full stateful firewall

Advanced networking
- License-free SD-WAN
- WireGuard, L2TP and OpenVPN server
- OpenVPN client
- OpenVPN and IPsec site-to-site VPN
- One-click Teleport and UID VPN
- Policy-based WAN and VPN routing
- DHCP relay
- Customizable DHCP server
- IGMP proxy
- IPv6 ISP support

Features

Integrated Enterprise WiFi6 (4x4 MIMO)
Full UniFi OS and UniFi application support
3.5+ Gbps routing
LAN ports - (1) 10G SFP+, (17) GbE RJ45, including (4) PoE++, (4) PoE+, and (4) PoE ports
WAN ports - (1) 10G SFP+, (1) 2.5GbE RJ45
4.7" touchscreen for management
Integrated 128 GB SSD & pre-installed 512 GB microSD card

Details
Manufacturer's Code	UDW
Dimensions	549 x 342 x 62 mm (21.6 x 13.5 x 2.4")
Weight	8.6 kg (19 lb)
Enclosure materials	Polycarbonate, galvanized steel, aluminum alloy
Mount material	Stainless steel
Processor	Quad-core ARM® Cortex®-A57 at 1.7 GHz
System memory	4 GB DDR4
On-board storage	16 GB eMMC, Integrated 128 GB SSD, Pre-installed 512 GB microSD card
Expansion slot	Micro SD memory card (Requires a memory card with at least 128 GB of storage)
Management interface	Ethernet, Bluetooth, WiFi
Networking interface	(17) LAN: GbE RJ45 ports, (1) WAN: 2.5 GbE RJ45 port, SFP+ interface (1) LAN: 10G SFP+ port, (1) WAN: 10G SFP+ port
PoE interface	(4) PoE (Pair A 1, 2+; 3, 6-), (4) PoE+ (Pair A 1, 2+; 3, 6-), (4) PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Power method	Universal AC input 100—240V AC, 7A Max., 50/60Hz
Power supply	(2) Hot-Swappable AC/DC 550W PSU (Comes with (1) pre-installed PSU)
Max. power consumption	532W
Max. PoE wattage per port by PSE	PoE: 15.4W, PoE+: 30W, PoE++: 60W
Voltage range PoE mode	PoE: 44—57V, PoE+/PoE++: 50—57V
Max. TX power	2.4 GHz: 23 dBm, 5 GHz: 26 dBm
MIMO	2.4 GHz: 2 x 2, 5 GHz: 4 x 4
Throughput rate	2.4 GHz: 300 Mbps, 5 GHz: 2.4 Gbps
Antenna gain	2.4 GHz: 5.9 dBi, 5 GHz: 6 dBi
ESD/EMP protection	Air: ± 8kV, contact: ± 4kV
LCM display	(1) 4.7" touchscreen
Button	Factory reset
Mounting	Wall mount (included)
Operating temperature	-10 to 40° C (14 to 104° F)
Operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
