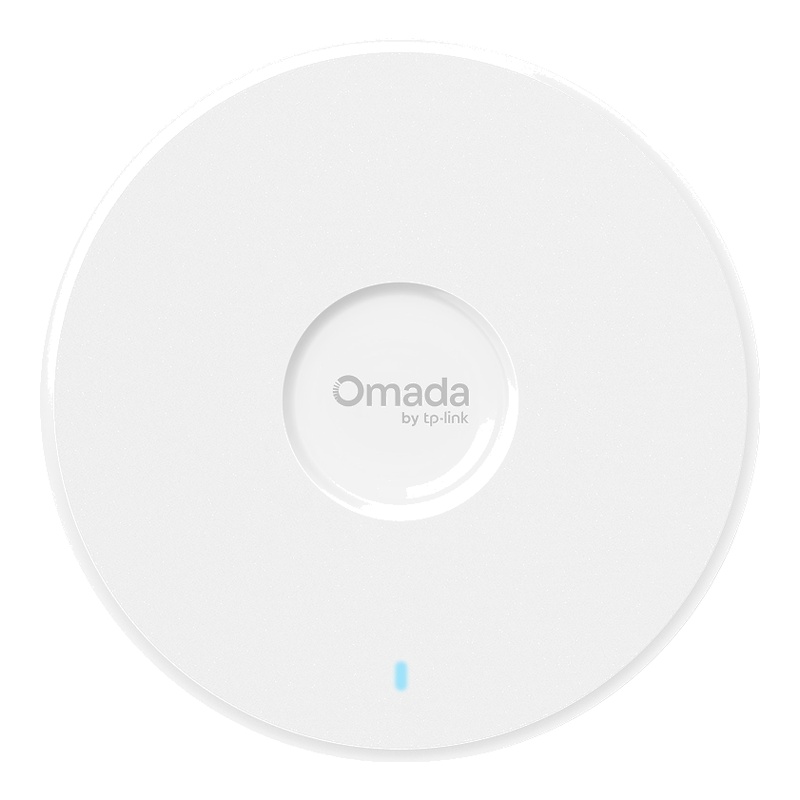

Omada EAP787 BE12000 Indoor Ceiling Mount Tri-Band Wi-Fi 7 Access Point

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Supported Platforms

Description

Description

Specifications

Resources

Package Contents

The Omada EAP787 BE12000 Indoor Ceiling Mount Tri-Band Wi-Fi 7 Access Point is the flagship model of the ceiling mount access points, fully leveraging Wi-Fi 7 technology to deliver optimal performance for most demanding clients and applications.

Featuring Dedicated RF Scanning, EAP787 provides spectrum management by continuously scanning the surrounding wireless frequencies without impacting normal user data transmission. This enables the detection and avoidance of factors that may affect wireless performance, enhancing network stability and throughput to fully maximize the capabilities of Wi-Fi 7.

Features

Dedicated RF Scanning: Offers real-time spectrum monitoring and dynamic interference
avoidance for robust wireless performance
Long-Range 6 GHz Coverage: Unlock stronger signals and extended 6 GHz range performance
Tri-Band 8-Stream Wi-Fi 7: Up to 12.2 Gbps
1× 10G Port: Ensures fast connectivity throughout the network
Low Latency and Interference: 320MHz Bandwidth, Multi-Link Operation, Multi-RUs, and 4K-QAM
ensure high performance for your network
Flexible Deployment and Easy Setup: Supports both 802.3bt PoE and DC power supply for flexible installation with Omada SDN for one-click setup
Advanced Features: Supports centralized management, Mesh, and Seamless Roaming
More Capacity and Wider Coverage: Supports up to 510+ concurrent clients and covers up to 190 m² for reliable and extensive wireless connectivity

Details
Manufacturer's Code	EAP787
Interface	1× 10G/2.5G Ethernet Port
Button	Reset
Power Supply	802.3bt/at PoE, 12V/2.5A DC (DC Power adapter is not included. DC power interface: 12V, accepts 2.1 mm / 5.5 mm center-positive circular plug with 9 mm length)
Max. Power Consumption	29 W (For PoE); 24.5W (For DC)
Dimensions ( W x D x H )	220 × 220 × 38.8 mm
Antenna	2.4 GHz: 2× 4.0 dBi, 5 GHz: 4× 5.0 dBi, 6 GHz: 2× 5.0 dBi
Bluetooth	1 × 5 dBi (peak gain), Internal antenna module *Firmware update may be required.
Mounting	Ceiling / Wall / Junction Box Mounting (Kits Included)
Omada App	Yes
Centralized Management	Omada Central (Cloud-Based), Omada Hardware Controller, Omada Software Controller
Cloud Access	Yes. Require the use of an Omada controller.
Coverage	190 m²
Concurrent Clients	510+
Wireless Standards	IEEE 802.11 a/b/g/n/ac/ax/be
Frequency	6 GHz, 5 GHz, and 2.4 GHz
Signal Rate	688 Mbps (2.4 GHz) + 8648 Mbps (5 GHz) + 5765 Mbps (6 GHz)
Wireless Functions	320 MHz Bandwidth, MLO, 4K-QAM, Multi-RUs, Seamless Roaming(802.11k/v/r), MU-MIMO, Mesh, BSS Coloring, OFDMA, Load Balance, Band Steering, Beamforming, Airtime Fairness, Multiple SSIDS:24(8 on each band), Wireless Schedule, Reboot Schedule, QoS(WMM), Rate Limit, Static IP/Dynamic IP, RADIUS Accounting, MAC Authentication
Wireless Security	Captive Portal Authentication, Access Control, Mac Filter, Wireless Isolation Between Clients, VLAN, Rogue AP Detection, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	4-25 dBm (2.4 GHz), 7-29 dBm (5 GHz, U-NII-1 & U-NII-3), 7-26 dBm (5 GHz, U-NII-2A), 7-24 dBm (5 GHz, U-NII-2C), 4-23 dBm (6 GHz)
Certification	Wi-Fi Alliance: Wi-Fi 7 (R1), Wi-Fi 6 (R2), Wi-Fi 6E, WPA3-R3, WPA3-Suite B, Enhanced Open Security, FCC/CE/NCC/VCCI/JRF/BSMI
Operating Temperature	0 °C–40 °C (32 °F–104 °F);
Storage Temperature	-40 °C–70 °C (-40 °F–158 °F);
Operating Humidity	10%–90% non-condensing;
Storage Humidity	5%–90% non-condensing;
