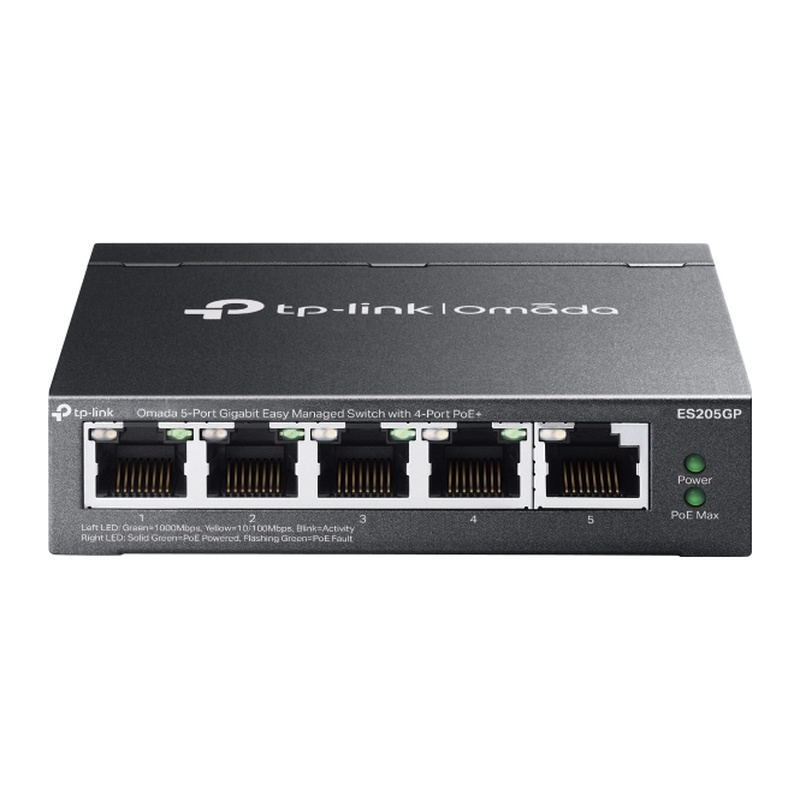

Omada ES205GP SDN 5-Port Gigabit PoE Switch with 4-Port PoE+

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Supported Platforms

Description

Description

Specifications

Resources

Package Contents

Omada ES205GP SDN 5-Port Gigabit PoE Switch with 4-Port PoE+.

Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface.

Features

5× 10/100/1000Mbps RJ45 ports (4× 802.3at/af-compliant PoE+)
65W Power Budget, with up to 30W for each PoE port
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app
Up to 250m PoE (10mbps), QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
Automatic Loop Prevention, VLAN, and IGMP Snooping
Fanless design for silent operation
Durable metal casing and desktop/wall mounting design

Details
Manufacturer's Code	ES205GP
Interface	5 10/100/1000Mbps RJ45 Ports
Flash	64 Mbit
Port Standard	IEEE 802.3i:10BASE-T Ethernet; IEEE 802.3u:100BASE-X Fast Ethernet; IEEE 802.3ab:1000BASE-T Gigabit Ethernet; IEEE 802.3x: Flow Control; IEEE 802.1p: Traffic Class Expediting and Dynamic Multicast Filtering; IEEE 802.1q: Virtual Bridged Local Area Networks
PoE Standard	802.3af/at
PoE Ports	4, up to 30 W / per port
PoE Power Budget	65 W
Switching Capacity	10 Gbps
Packet Forwarding Rate	7.4 Mpps
MAC Address Table	8K
Packet Buffer	4 Mbit
Transmission Method	Store and Forward
Jumbo Frame	15 KB
Power Supply	53.5 VDC / 1.31A
Surge Protection	±6 kV in common mode for Ethernet Ports
ESD Protection	Air: ±8 kV, Contact: ±4 kV
MTBF	559597h @ 25°C
Dimensions (W x D x H)	3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm)
Fan Quantity	Fanless
Installation	Desktop/Wall-Mounting
Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature	-40 °C to 70 °C (-40 °F to 158 °F)
Operation Humidity	10% to 90% RH, non-condensing
Storage Humidity	5% to 90% RH, non-condensing
Certification	CE, FCC, RoHS
SDN Support	Support Hardware Controller, Software Controller, Cloud-Based Controller; Automatic Device Discovery; Batch Configuration; Batch Firmware Upgrading; Unified Configuration
Link Aggregation	Static Link Aggregation; Up to 2 aggregation groups and up to 4 ports per group
Loopback Detection	Loopback Detection
Flow Control	802.3x Flow Control
Mirroring	Port Mirroring; One-to-One; Many-to-One; Ingress/Egress/Both
Port Statistics	Port Mirror Status; Traffic Statistics
LLDP	802.1ab LLDP
IGMP Snooping	IGMP v1/v2/v3 Snooping; Fast Leave
VLAN	MTU VLAN; Port-Based VLAN; 802.1Q Tag VLAN; Max 32 VLAN Groups; 4K VID
QoS	802.1p DSCP Priority; 8 Priority Queues; Priority Schedule Mode: WRR (Weighted Round Robin); Queue Weight Config; Bandwidth Control: Port-Based Rating Limit; Storm Control: Multiple Control Modes (kbps/pps); Broadcast/Multicast/Unknown-Unicast Control
Management	Web-based GUI; DHCP Client; Cable Diagnostics
