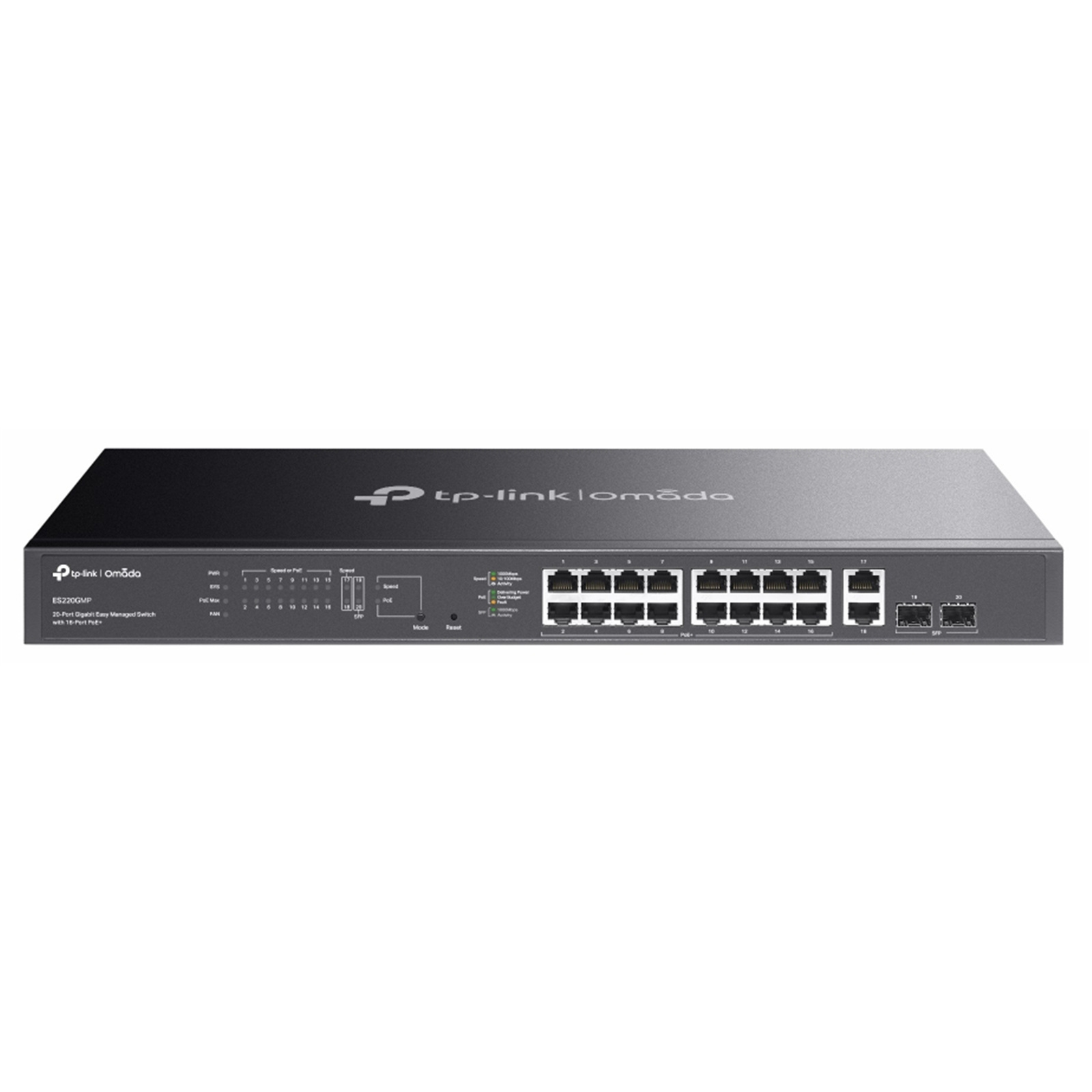

Omada ES220GMP 20-Port Gigabit Easy Managed Switch with 16-Port PoE+

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Supported Platforms

Description

Description

Specifications

Resources

Package Contents

Omada ES220GMP 20-Port Gigabit Easy Managed Switch with 16-Port PoE+ and 2 x SFP, Rack mountable.

Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.

Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface.

Features

16 × Gigabit 802.3af/at-compliant PoE+ RJ45 ports
2 × Gigabit RJ45 port, 2× Gigabit SFP port
250W Power Budget, with up to 30W for each PoE port
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app
Up to 250m PoE, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
Automatic Loop Prevention, VLAN, and IGMP Snooping
Durable metal casing and rack-mountable design
Lifetime Free Cloud without Any Additional Fees

Details
Manufacturer's Code	ES220GMP
Interface	16× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+), 2× 10/100/1000 Mbps RJ45 Port, 2× Gigabit SFP Slot, Auto-Negotiation/Auto MDI/MDIX
Fan Quantity	2
Installation	Rackmountable
Physical Security Lock	Yes
Power Supply	100–240V AC, 50/60Hz
PoE Ports (RJ45)	Standard: 802.3af PoE and 802.3at PoE+ compliant, PoE Ports: 16 ports, PoE Budget: 250W available for all PoE+ ports, 30W max per port, Fast PoE & Perpetual PoE, PoE Auto Recovery, Up to 250m PoE transmission distance, Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in.(440 × 180 × 44 mm), Surge Protection ±6kV
Switching Capacity	40 Gbps
Packet Forwarding Rate	29.76 Mpps
MAC Address Table	8K
Packet Buffer Memory	4 Mbit
Jumbo Frame	15 KB
Quality of Service	Port-based/802.1p/DSCP QoS, 8 Priority Queues, Priority Schedule Mode, WRR (Weighted Round Robin), Queue Weight Config, Bandwidth Contro, Port-Based Rating Limit, Storm Control, Multiple Control Modes (kbps/pps), Broadcast/Multicast/Unknown-Unicast Control
L2 Features	Static Link Aggregation, Loop Prevention / Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, One-to-One, Many-to-One, Ingress/Egress/Both, Port Statistics, Port Mirror Status, Traffic Statistics, 802.1ab LLDP
L2 Multicast	IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave
VLAN	MTU VLAN, Port-Based VLAN, 802.1Q Tag VLAN, Max 32 VLAN Groups, 4K VID
Transmission Method	Store-And-Forward
Environment	Operating Temperature: -5℃~50℃ (23℉~122℉), Storage Temperature: -40℃~70℃ (-40℉~158℉), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing
Certification	FCC, CE, RoHS
