Ubiquiti UniFi U7 Pro XG Ceiling-mounted 6-stream Tri-Radio WiFi 7 Access Point with 10/5/2.5/1 GbE support

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Description

Specifications

Resources

Package Contents

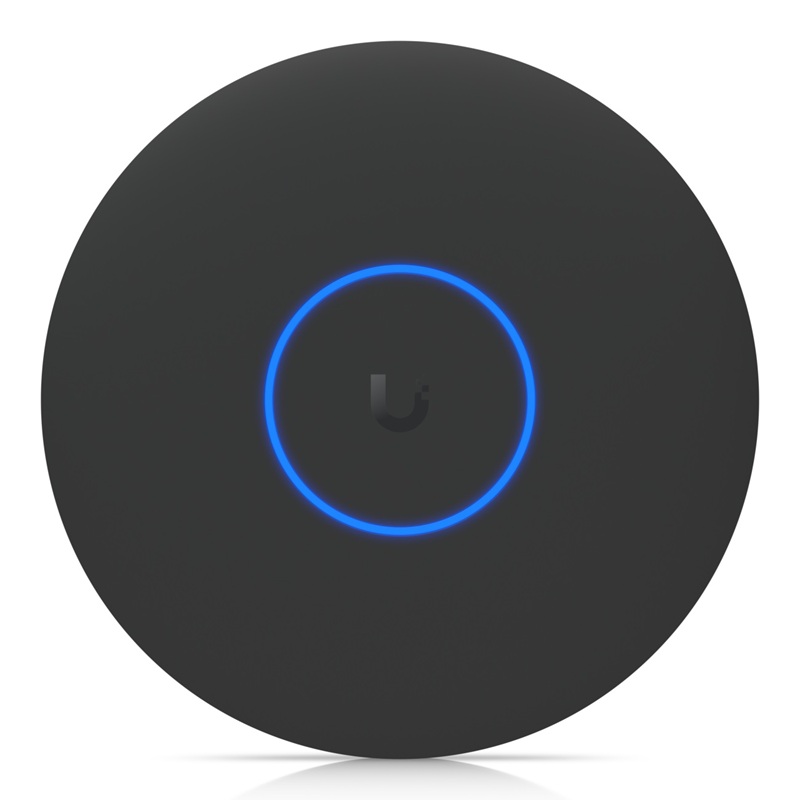

Ubiquiti UniFi U7 Pro XG Ceiling-mounted 6-stream Tri-Radio WiFi 7 Access Point with 10/5/2.5/1 GbE support - Black

PoE NOT included

Features

Details
Manufacturer's Code	U7-Pro-XG (Black)
WiFi Standard	WiFi 7
Spatial Streams	6
MIMO	6 GHz 2 x 2 (DL/UL MU-MIMO), 5 GHz 2 x 2 (DL/UL MU-MIMO), 2.4 GHz 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate	6 GHz 5.8 Gbps (BW320), 5 GHz 4.3 Gbps (BW240), 2.4 GHz ,688 Mbps (BW40)
Antenna Gain	6 GHz 6 dBi, 5 GHz 5 dBi, 2.4 GHz 4 dBi
Max. TX Power	6 GHz 24 dBm, 5 GHz 26 dBm, 2.4 GHz 23 dBm
Max. BSSIDs	8 per Radio
Coverage Area	140 m² (1,500 ft²)
Max. Client Count	300+
Uplink	10 GbE
Features	Wireless Meshing, Band Steering, 802.11v BSS Transition Management, 802.11r Fast Roaming, 802.11k Radio Resource Management (RRM), Advanced Radio Management, Passpoint (Hotspot 2.0), Captive Hotspot Portal, Private Pre-Shared Key (PPSK), WiFi Speed Limiting, Client Device Isolation, WiFi Schedules, RADIUS over TLS (RadSec), Dynamic RADIUS-assigned VLAN
Mounting	Ceiling, Wall (Lite Mount Included)
Power Method	PoE+
Max. Power Consumption	22W
Supported Voltage Range	42.5—57V DC
Networking Interface	(1) 10 GbE RJ45 port
Dimensions	Ø206 x 32.5 mm
Weight	750 g (1.7 lb)
Management	Ethernet
Enclosure Material	UV-stabilized polycarbonate, aluminum alloy
Mount Material	Stainless steel (SUS304), galvanized steel (SGCC)
LEDs	System White/Blue
Channel Bandwidth	HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
NDAA Compliant	Yes
Certifications	CE, FCC, IC
Ambient Operating Temperature	-30 to 40° C (-22 to 104° F)
Ambient Operating Humidity	5 to 95% noncondensing
Software Application Requirements	UniFi Network
