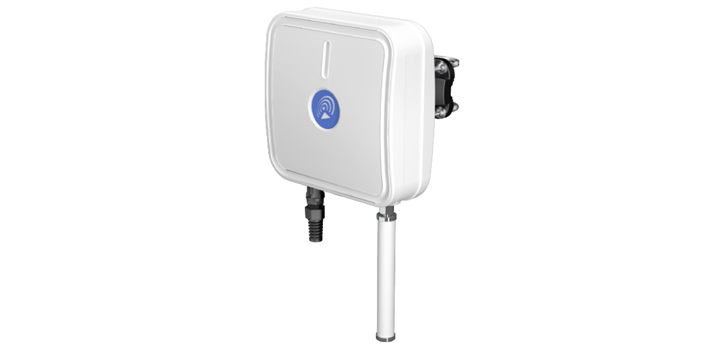

QuMax A240M for Teltonika RUT240/RUT241 Integrated outdoor multi band high power LTE directional antenna + outdoor Wi-Fi omni antenna + place to install Teltonika RUT240/RUT241 (All-in-one)
QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with a long distance to the base station. It is designed to have the Teltonika RUT240/RUT241 router installed inside an IP67 enclosure. It is the first choice for fixed installations in an industrial environment. It also has an embedded outdoor Wi-Fi omni antenna.
QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with a long distance to the base station. It is designed to have the Teltonika RUT240/RUT241 router installed inside an IP67 enclosure. It is the first choice for fixed installations in an industrial environment. It also has an embedded outdoor Wi-Fi omni antenna.
Features
- IP67 Outdoor antenna
- Passive PoE Support
- Made to fit mount
Details | |
---|---|
Product Code | A240M |
Supported LTE bands | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 2305-2360 |
Frequency Gain | 0.694-0.96 GHz: 4dBi, 1.7 - 2.2 GHz: 5dBi, 2.2 - 2.7 GHz: 6dBi |
Beamwidth | 90°/90° +/- 30° |
Polarization | Vertical |
Impedance | 50 Ω |
WiFi Frequencies | 2.40-2.50 GHz (6dBi), 4.70 - 6.00 GHz (7dBi) |
Materials | ABS, aluminum, PTFE, Fiberglass |
Ingress Protection | IP67 |
Dimensions | 272 x 276 x 96 mm |
Weight | 1.8 kg |
Operating Temperature | From -40°C to 75°C |
Details | |
---|---|
Contents | IP67 Rated Enclosure Antenna, Ethernet Connector Gland, Pole mount Included |
N-Type , RP-SMA , SMA
600-999MHz , 1700-2100MHz , 2.4GHz , 2.6GHz
