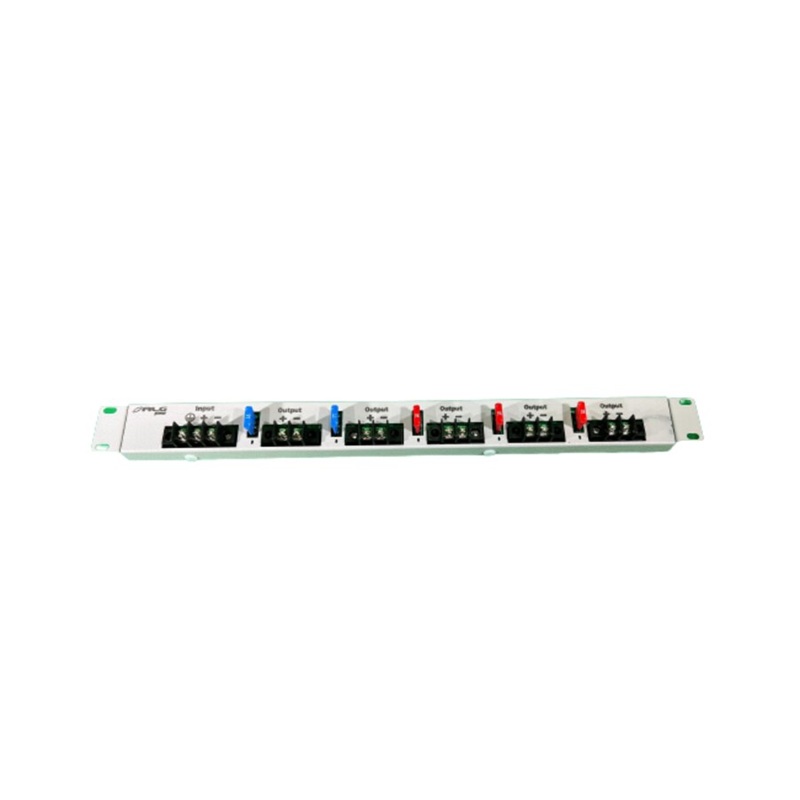

ALGcom Unmanaged DC PDU 19 inch x 1U with 5 Ports DC Out.
Power Distribution Unit, ideal for safely distributing and meeting power supply needs within the rack.
Power Distribution Unit, ideal for safely distributing and meeting power supply needs within the rack.
Features
- Unmanaged DC PDU (Power Distribution Unit)
- Power distribution in DC energy
- Works in either 12/24 or 48V
- Maximum total current of 30A
- 5 Fuse-protected Outputs
- Indicative LEDs per output
- Electrical Discharges protected
- Full up-front connections
- Fixing in rails of 19” with 1U of high
- IP20 degree of protection
| Details | |
|---|---|
| Manufacturer's Code | 37010030007 (DC PDU 5 PORTS 1U 19) |
| Weight | 0.45 kg |
| Dimensions (L x W x H) | 485 x 44.5 x 30 mm |
| Material | Galvanized Steel 1020 |
| Box format | Rectangular |
| Proction against electrical surges | Yes |
| Rated Current | 30 A / 60V |
| Surface treatment | Gray epoxy painting |
| Protection | IP20 degree of protection |
| Details | |
|---|---|
| Included | 1 x Unmanaged DC PDU, Rack Mount ears |
