Tycon Power Systems TP-POE+10G 53V 30W 802.3at PoE+ 10Gbps Ethernet Injector

0 Rating
$129.00 +GST
10 In Stock
SKU: TP-POE-PL-10G
QuantityPrice
1 - 4$129.00
5 - 9$125.78
10 - 19$122.55
20+$116.10
Tycon Power Systems TP-POE+10G 53V 30W 802.3at PoE+ Injector
Warranty
Same day shipping for orders placed before 3pm (NZDT), Free shipping on all orders $1000+gst*
Description
Specifications
Resources
Package Contents

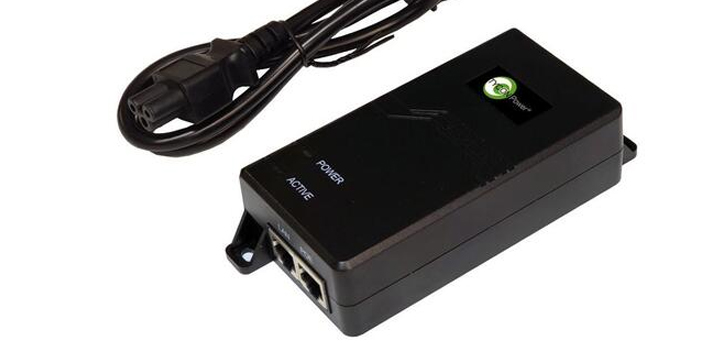

Tycon Power Systems TP-POE+10G 53V 30W 802.3at PoE+ 10Gbps Ethernet Injector. The TP-POE+10G is a compact 10/100/1000/10000MB (10G) desktop 802.3at PoE+ inserter with 120/240VAC auto-ranging input. The reliable UL Listed inserter has an output that is Mode A (1,2+ 3,6-) 802.3at PoE at up to 31.8W.
Features
  • 10/100/1000/10000Mb Data Rate
  • CAT6 (or higher) for 10G
  • Compact Size, Shielded RJ45 Jacks
  • I.T.E. Power Supply, UL Listed
Details
Product CodeTP-POE+10G
AC Input Voltage100-240VAC 50/60Hz
Output PoE Voltage53VDC +/-2V, 802.3af/at PoE, Mode A (Pins 1,2+ 3,6-)
Maximum Load0.6A (31.8W) Max
ProtectionsShort Circuit, Overcurrent, Surge/ESD (8kV)
Efficiency78% Minimum
Ripple and Noise200mV p-p max
Data Rate10/100/1000/10000Mbps (10Gb)
No Load Consumption1W Max
Operating Temperature-20 to +50°C
Storage Temperature-30 to +80°C
Operating Humidity10% to 90% non condensing
Size (L x W x H)5.5 x 2.5 x 1.4” (138.5 x 62.5 x 35.3mm)
Weight7.4oz (210g)
MTBF50,000 Hrs
CertificationsUL, CE, FCC
ConnectorsRJ45 Shielded Jacks
Ethernet Cable CompatibilityCAT6a 10G to 55m; CAT6e 10G to 80m, 5G to 100m
Details
WarrantyStandard 12 Month RTB
100Mbps , 1Gbps , 10Gbps
PoE (802.3af/at)
