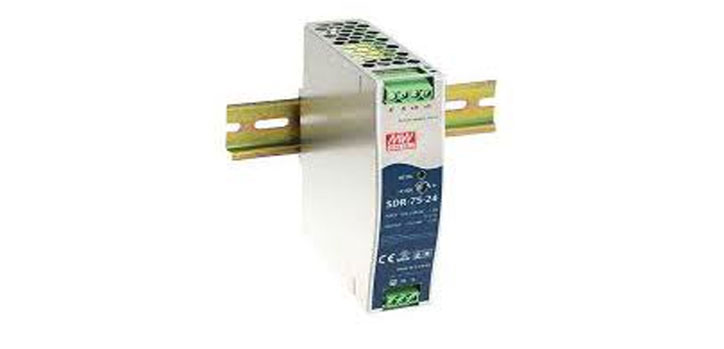

Cambium Power Supply AC to 24VDC DIN RAIL MOUNT for cnReach. Industrial applications require deployment in harsh environments where equipment must survive and operate at top performance during many years of mission critical use. Cambium’s DIN-Rail Mount Power Supply is well-suited for deployment in cabinets for oil/gas, water treatment, electric utility
and rail applications.
Features
- High efficiency and low power dissipation
- Protections: Short Circuit / Overload / Over voltage / Over temperature
- Installed on DIN Rail TS-35/7.5 or 15
- AC line cord is NOT included
| Details | |
|---|---|
| Product Code | NB-N500013A-GL |
| Maximum Output Power | 76.8 W; derated to 75% at 70C |
| DC Voltage Output | 24 VDC |
| Rated Current | 3.2 A |
| Input Voltage | 88 - 264 VAC; no line cord included |
| Input Frequency | 47 to 63 Hz |
| Efficiency | 89% typical |
| Dimensions | 32mm x 125mm x 102mm (1.26 in. x 4.92 in. x 4.01 in.) |
| Weight | 1.12 lbs. (0.51 kg) |
| Temperature Range | -30 C to +70 C (-22 F to +158 F) |
| Safety | UL508, TUV EN60950-1 approved, EN 60204-1 |
| EMC Emission | Compliance to EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3 |
| EMC Immunity | Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level, criteria A, SEMI F47 approved |
| Cooling | Convection cooled (no fans) |
| Details | |
|---|---|
| Power Cord | Not Included |
