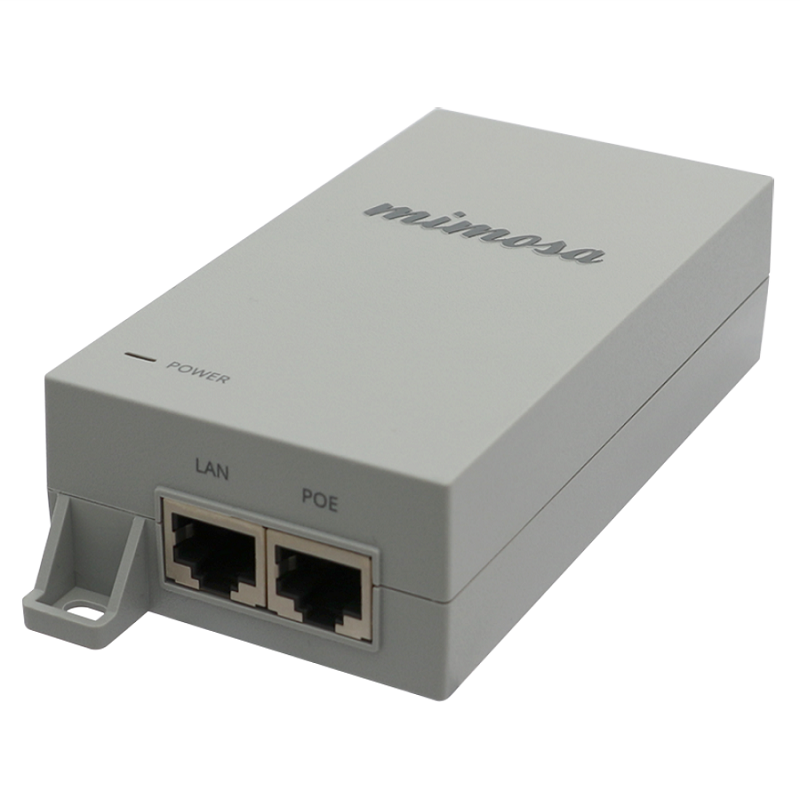

Mimosa POE-50V Passive PoE Injector for Mimosa Radios. Mimosa's wide range of Power over Ethernet (PoE) solutions are designed for a clean installation in any environment. Supporting many county specific plugs and power options, Mimosa's PoE is the ideal power solution for your wireless installations.
| Details | |
|---|---|
| Manufacturer's Product Code | 502-00022 |
| Dimensions | 138 mm x 62 mm x 35 mm |
| Weight | 0.24 kg (8.8 oz) |
| Color | Grey |
| Gigabit LAN | Yes, (2) RJ-45 |
| Output Voltage | 50 V === 1.2A |
| Max Current Load | 1.2A (60 W) |
| Pinout | PIN 1/2 and 4/5: +50 V; PIN 3/6 and 7/8: GND |
| Input Voltage | 100–240 VAC ~ 50/60 Hz; Max 1.5A |
| Input Current | 1.5A @ 115 VAC; 1.0A @ 230 VAC |
| Input Frequency | 47–63 Hz |
| Max In-Rush Current | 150A |
| Ripple Voltage | 200 mV |
| Protection | Over Current; Over Voltage |
| Efficiency | 88+% - Level VI |
| RJ-45 Type | Metal-Shielded |
| AC Connector | IEC-320 C6 (3 Pin Clover Inlet) (Not Included) |
| Operation Indicator | 1 LED (blue) |
| Operating Temperature | -25deg C to +50deg C |
| Operating Humidity | 5% to 95% non-condensing |
| Storage Temperature | -30deg C to +70deg C |
| Details | |
|---|---|
| PoE Injector | 50VDC, 1.2A Passive PoE Injector |
| Clover Lead | Not Included |
1Gbps
PoE (non standard)
