Description
Specifications
Resources
Package Contents

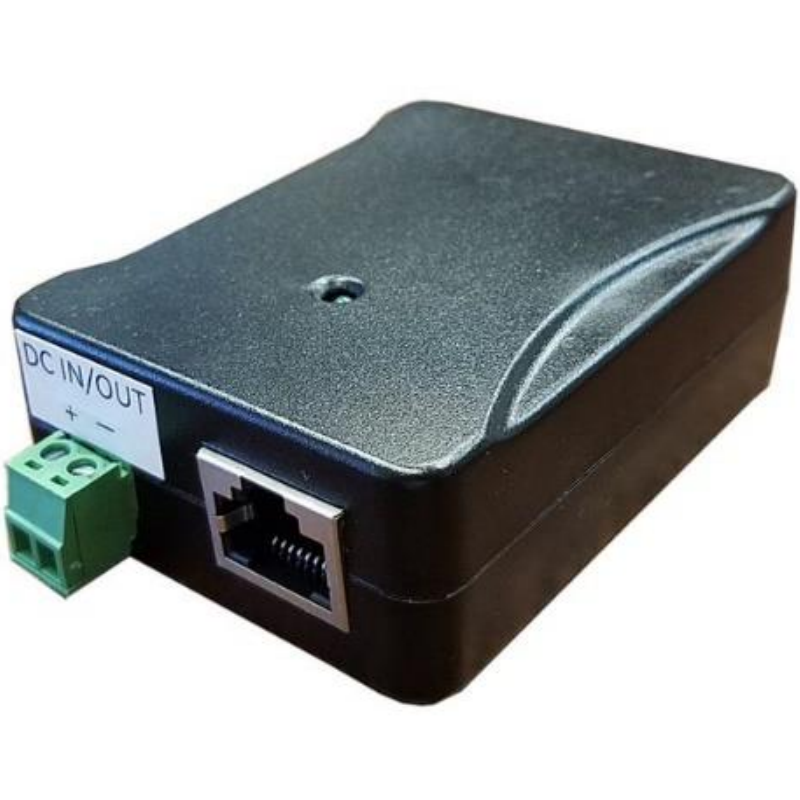

The POE-INJ-1000-WT(x) are shielded passive power over Ethernet Inserters and Splitters that are compatible with data speeds up to 1 gigabit. The DC connector is a removeable wire terminal type power connector. The RJ45 connectors are shielded to ensure continuous shielding from power source to destination device. Power is supplied on all 8 Ethernet pins (4 Pair) This allows for transport of up to 130W over a single CAT5/6 wire up to 100m.
Gigabit PoE Injector/Splitter with LED for power. Injects or splits DC power on all 8 wires. 1,2,7,8(-) and 3,6,4,5(+) Wire terminal connector. Black Color. 2.25A.
Gigabit PoE Injector/Splitter with LED for power. Injects or splits DC power on all 8 wires. 1,2,7,8(-) and 3,6,4,5(+) Wire terminal connector. Black Color. 2.25A.
Features
- High Power Shielded Design (uses all 4 pairs)
- 10/100/1000Mb Compatible
- Removeable Wire Terminal Connector
- 5VDC to 58VDC Power Over Ethernet
- Power On LED indicator
| Details | |
|---|---|
| Manufacturer's Product Code | POE-INJ-1000-WTx |
| DC Input Voltage | 5V to 58VDC |
| Data Speeds | 10/100/1000Mb |
| DC Input Connector | Removeable Wire Terminal Connector – Maximum Wire Size 14AWG |
| Maximum PoE Current | 2.25A 130W Max |
| RJ45 PoE Pinout | 3,6,4,5 (V+); 1,2,7,8 (V-) |
| Dimensions (LxWxH) | 71 x 53 x 24mm |
| Weight | 65g |
| Details | |
|---|---|
| Included | 1 x DCDC PoE Converter and Compression Wire Terminal |
100Mbps , 1Gbps
RJ45
PoE (non standard)
