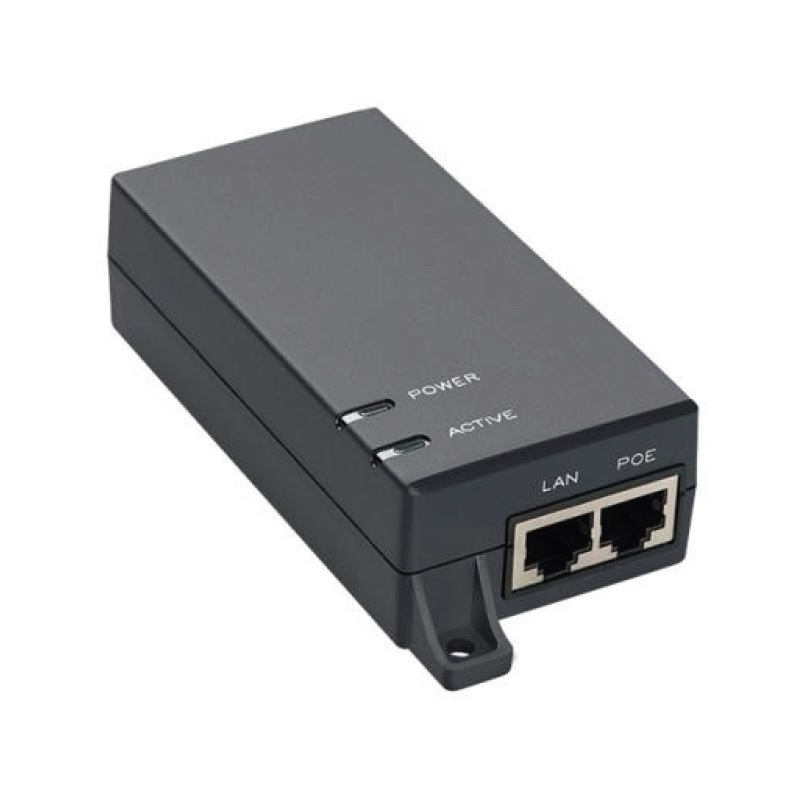

48V 30 Watt Gigabit Passive Power over Ethernet Supply. The PT-PSE100G PoE Injector is a single port PoE Injector that is compatible with IEEE 802.at standard. Recently upgraded to a smaller form factor but still comes with the industry leading PoE technology that enables 30W of PoE over standard Cat5 or better cables to easily upgrade IP surveillance devices, WLAN APs and other Ethernet devices.
Features
- Output: 48Vdc 630mA 30W
- Transmission Rate: 10/100/1000Mbps
- Power Pin:4/5(+),7/8(-)
| Details | |
|---|---|
| Manufacturer's Product Code | PT-PSE100G |
| Standards | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-Tx Fast Ethernet, IEEE802.3ab 1000Base-T Gigabit Ethernet, Support terminal equipment with IEEE802.3af/at, RoHS Compliance, WEEE Compliance |
| Input | 100-240Vac 1.0A 50/60Hz |
| Output | 48Vdc 630mA |
| Power Pins | 4/5(+), 7/8(-) |
| Data Speed | 10/100/1000Mbps |
| Operating Temperature | 0℃ to 40℃ |
| Operating Humidity | 20% to 80%, non-condensation |
| Storage Temperature | -20℃ to 70℃ |
| Storage Humidity | 10% to 90%, non-condensation |
| Operating Altitude | up to 2000meters |
| AC Surge Protection | 1.0KV (5P/5N), L-N 1.2/50 (8/20) Tr/Th us, 2.0KV (5P/5N), L-PE 1.2/50 (8/20) Tr/Th us, N -PE |
| Case | Plastic |
| Colour | Black |
| Mounting: | Wall-mounted |
| IP Rated | IP40 |
| Size | 134mm X 56mm X 33mm |
| Weight | 175g |
| Safety Approvals | CE, FCC |
| EMI | FCC CFR47 Part 15, EN55024, EN55032 |
| EMS | IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air), IEC61000-4-3(RS) 10V/m(80MHz~2GHz), IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV, IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM, IEC61000-4-6(CS) 10V(150kHz~80MHz) |
| Immunity | IEC60068-2-6(Vibration), IEC60068-2-27(Impact), IEC60068-2-32(Free Fall) |
| LED Indicator | Power Indicator: Green, PoE Load Indicator: Green |
| Details | |
|---|---|
| Power Cord | 3 Pin IEC Lead |
| Warranty | Standard 12 Month RTB |
1Gbps
PoE (non standard)
