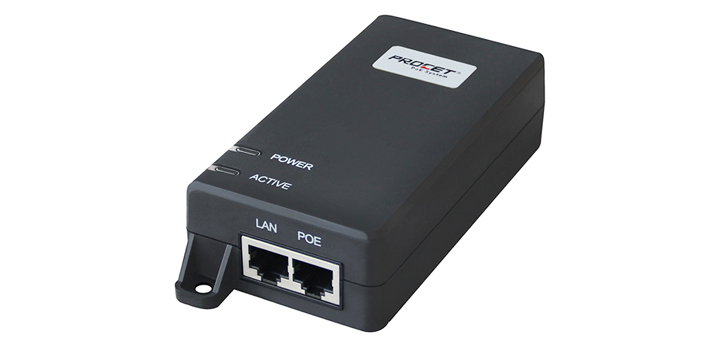

Procet 55V DC 30 Watt 10 Gigabit 802.3at Power over Ethernet Supply. PT-PSE104GO-30-10 is a single port PoE Injector. It provides 55Vdc, 0.55a power for remote PDs over 2 pairs output. It supports not only 10/100/1000Mbps of data speed, but also 2.5GbE/5GbE/10GbE NBase-T. It works for 30W PoE PDs, such as wireless APs, Network cameras, IP Phones and other high power Ethernet terminals. It is fully compliant with IEEE802.at and backwards compatible to IEEE 802.3af PoE standard.
PT-PSE104GO-30-10 is designed for indoor use. It works with input voltage of 100-240Vac and operates under -40°C to +65°C. It has a detection chip inside, which will detect and classify PD before powering it. It will not apply power until a standards compliant PD is detected. The effective distance is 100 meters over Cat5e/Cat6 cables.
PT-PSE104GO-30-10 is designed for indoor use. It works with input voltage of 100-240Vac and operates under -40°C to +65°C. It has a detection chip inside, which will detect and classify PD before powering it. It will not apply power until a standards compliant PD is detected. The effective distance is 100 meters over Cat5e/Cat6 cables.
Features
- Input: 100-240Vac 1.5A 50/60Hz
- Output: 55Vdc 550mA 30W
- Power Pin:4/5(+),7/8(-)
- Transmission Rate: 10/100/1000Mbps & 2.5/5/10GbE
- Compact design, smaller in size: 145.51mm X 65.8mm X 33.5mm
- Automatic detection and protection of non-standard devices (Active)
- Low power devices receive only the power they need
- UL, CE, FCC certificate
| Details | |
|---|---|
| Manufacturer's Product Code | PT-PSE104GO-30-10 |
| Input | 100-240Vac 1.5A 50/60Hz |
| Output | 55Vdc 550mA |
| Power Pins | 4/5(+), 7/8(-) |
| Data Speed | 10/100/1000Mbps & 2.5/5/10GbE |
| Operating Temperature | -40°C to 65°C |
| Operating Humidity | 20% to 80%, non-condensation |
| Storage Temperature | -20°C to 85°C |
| Storage Humidity | 10% to 90%, non-condensation |
| Operating Altitude | up to 5000meters |
| Standards | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-Tx Fast Ethernet, IEEE802.3ab 1000Base-T Gigabit Ethernet, IEEE802.3bz 2.5/5/10GbE NBASE-T, Full compliant with IEEE802.3af/at, RoHS Compliance, WEEE Compliance |
| EMI | FCC CFR47 Part 15, EN55024, EN55032 |
| EMS | IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air), IEC61000-4-3(RS) 10V/m(80MHz~2GHz), IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV, IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM, IEC61000-4-6(CS) 10V(150kHz~80MHz) |
| Case | Plastic |
| Colour | Black |
| Mounting | Wall-mounted |
| IP Rated | IP40 |
| Size | 145.51mm X 65.8mm X 33.5mm |
| Weight | 255g |
| Details | |
|---|---|
| Power Cord | NZ 3 Pin Power Lead included |
RJ45
PoE (802.3af/at)
