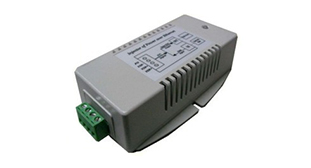

Tycon Power 18-36VDC IN, 56VDC Out Gigabit Passive PoE Out 50W DC to DC Converter. The TP-DCDC-2448G-HP offered by Tycon Power is a low cost and high efficiency solution for those requiring Passive Power over Ethernet from a 24VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the power and data output to the CAT5/6 Ethernet cable. The output voltage is regulated and protected. They have a common (-) and two (+) inputs for connecting 2 power sources, such as a primary with a backup power source. A metal enclosure model is available for industrial applications. 802.3af/at models available.
They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The units have power outputs up to 50W
Perfect for powering high power PoE solutions from 24V DC.
They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The units have power outputs up to 50W
Perfect for powering high power PoE solutions from 24V DC.
Features
- Input Voltage 24VDC (Range 18-36VDC)
- 56VDC Passive PoE Output
- Dual Inputs for Connecting 2 Power Sources
- Integrated 10/100/1000MB PoE Inserter
- High Power up to 50W
- Low Self Consumption Power
- Short Circuit, Over Current and Reverse/Over Voltage Protect
- High Temperature Operation
- Compact Size – Maximize Available Space
- Power on Ethernet pins 4,5(V+) and 7,8(V-)
- I.T.E. Power Supply, UL Listed
| Details | |
|---|---|
| Manufacturer's Product Code | TP-DCDC-2448G-HP |
| DC Input Voltage | 18VDC – 36VDC |
| DC Input Connector | Removable Screw Type Compression Wire Terminal (12 AWG Max) |
| DC Output Voltage | 56VDC |
| PoE Method | Passive PoE power on Ethernet pins 4,5(V+) and 7,8(V-) |
| Data in & Data/POE Output Connector | Gigabit RJ45 (Shielded) |
| Output Current (max) | 0.9A |
| Output Power (max) | 50W |
| Self Consumption Power | 1W |
| Ethernet Speed | 1Gbps |
| EMC Standards | FCC Class B EN55022 Class B |
| Safety Standards | IEC 62368-1, EN 62368-1, AS/NZS 62368.1 |
| Operating Temp | -40 to +70°C (-40 to +158°F) |
| Dimensions (LxWxH) | 125 x 75 x 38mm |
| Details | |
|---|---|
| Warranty | Standard 12 Month RTB |
1Gbps
PoE (non standard)
RJ45
