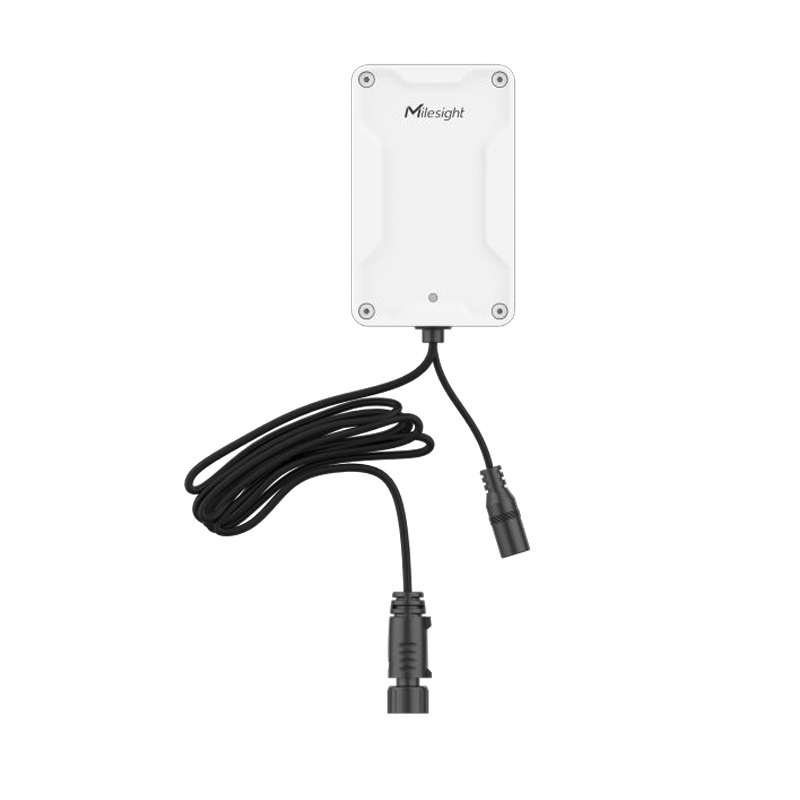

Milesight UPS01 12000mAh Backup Power Supply for Outdoor Gateways with M12 Interface for Milesight Gateways.
By offering resilient power supply, the UPS01 is poised to ensure seamless data transmission between the terminal devices and remote platform when power outage happens. Besides, the heating film also allows it to work in low-temperature environment for continuous power supply. The UPS01 is building a successful power supply solution featured with 12000 mAh that is able to serve connectivity needs for the terminal devices up to 32 hours.
The UPS01 has real time alarms for power outage, saving the expense of unnecessary maintenance downtime and keeping your business operating without interruption.
By offering resilient power supply, the UPS01 is poised to ensure seamless data transmission between the terminal devices and remote platform when power outage happens. Besides, the heating film also allows it to work in low-temperature environment for continuous power supply. The UPS01 is building a successful power supply solution featured with 12000 mAh that is able to serve connectivity needs for the terminal devices up to 32 hours.
The UPS01 has real time alarms for power outage, saving the expense of unnecessary maintenance downtime and keeping your business operating without interruption.
Features
- High Capacity, Long Endurance, Plug and Play
- Data Protection
- Plug and Play
- Real-time Alarming
- Tricolor Indicators
- Compact Design with IP67 and IK08 Protection
| Details | |
|---|---|
| Product Code | UPS01-M12 |
| Power Input | 9 - 20V, 2A |
| Input Connector | DC Jack Female Connector |
| Power Output | 6 - 8.4V, 1.5A |
| Output Connector | 4-Pin M12 A-Coded Female |
| Battery Capacity | 4x3000mAh Lithium-ion Rechargeable Batteries |
| Battery Supply Time | 6 - 32hours |
| LED Indicator | 1×Traffic Light Indicator (Battery Capacity & Diagnose) |
| Button | 1 × Reset Button (Internal) |
| Software Features | Power Monitoring, Alarm, Upgrade (Only with Milesight Devices) |
| Cable Length | DC IN: 30cm, M12: 150cm |
| Ingress Protection | IP67 & IK08 |
| Material & Colour | Aluminum, White & Silver |
| Dimension | 96×60×45mm (3.78×2.36×1.77in) (Without Cable) |
| Operating Temperature | Charge Temperature: -20°C to +45°C (-4℉ to +113℉), Discharge Temperature: -20°C to +60°C (-4℉ to +140℉) |
| Relative Humidity | 0% - 95% (Non-condensing) |
| Installation | Wall Mounting, DIN Rail Mounting, Pole Mounting, Desktop Mounting |
| Details | |
|---|---|
| Included | 1 x UPS01 Device, 1 × DIN Rail Mounting Clip, 1 × Power Adapter, 4 × Fixing Screws, 1 × Mounting Bracket, 1 × Quick Start Guide, 1× Warranty Card |
