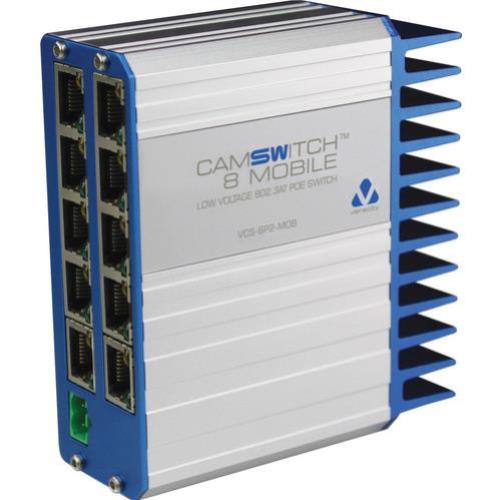

Veracity 8+2 Port POE Mobile CAMSWITCH
SKU: VCS-8P2-MOB
Veracity 8+2 Port CAMSWITCH Mobile Low-Voltage 802.3at PoE Switch
Ethernet Speed
100Mbps
Integrated PoE
PoE (802.3af/at)
Description
Description
Specifications
Resources
Package Contents
Veracity CAMSWITCH Mobile VCS-8P2-MOB is the ideal solution for installing IP cameras and other POE and network devices in transport, battery/solar powered, and other low-voltage applications. It integrates a 5 or 10 port 10/100 Ethernet switch with the capability to convert a 8 to 40 volt DC supply into an 80 watt IEEE 802.3af/at compliant power source. CAMSWITCH 8 Mobile features 8 802.3at POE ports, 2 non-POE ports, and a versatile DC power input.
Features
- 12 and 24 volt bus, train and car power supplies can all be converted to POE power
- CAMSWITCH Mobile is ideal for solar powered wireless systems and temporary installations
| Details | |
|---|---|
| Manufacturer's Product Code | VCS-8P2-MOB |
| DC Input Voltage | 8.5 - 40V (minimum startup voltage is 10.5V, supports engine cranking and reduce overdischarge), The use of an external fuse is recommended. Rating: 5 amps for 24V DC or 10 amps for 12V DC supply, slow blow type. |
| Output Voltage | IEEE 8023.af / IEEE 802.3at compliant (Power budget limited by power source specified - See Datasheet) |
| POE standard | IEEE 8023.af/at |
| Interfaces | (5) Ethernet Ports |
| Network Speed | 10/100Mbps |
| Dimensions | L 110mm / 131mm with side clips W 100mm including connectors H 40mm |
| Details | |
|---|---|
| Warranty | Standard 12 Month RTB |
