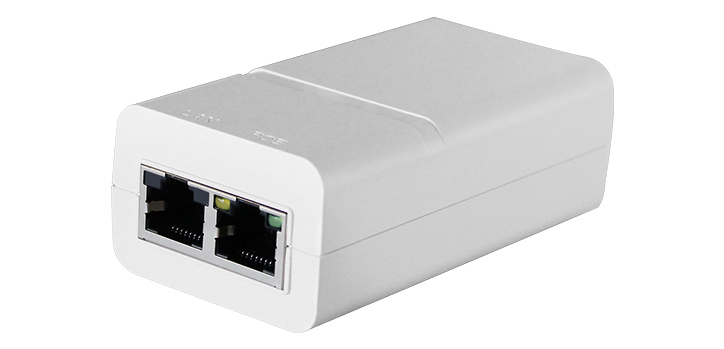

Procet 24V DC 30 Watt Gigabit Passive Power over Ethernet Supply. The EN30G-24 is an indoor rated PoE midspan Injector specially designed for complex backhaul and networking applications. It provides 24Vdc, 1.2A power for remote PDs over 2 pairs output. It supports both 10/100 Base-T and Gigabit device. It works for 28W PoE PDs, such as wireless APs, Wifi
routers, Network cameras, IP Phones, Microwave Radio and other power Ethernet terminals. Enclosed in an IP40 fire retardant plastic case. It works with a wide input voltage of 100-240 VAC, 50 or 60 Hz. Compliant with Level VI Energy Efficiency requirement
Features
- Output: 24Vdc 1200mA 30W
- Transmission Rate: 10/100/1000Mbps
- Power Pin:4/5(+),7/8(-)
| Details | |
|---|---|
| Manufacturer's Product Code | PT-EN30G-24 |
| Standards | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-Tx Fast Ethernet, IEEE802.3ab 1000Base-T Gigabit Ethernet, RoHS Compliance, WEEE Compliance |
| Input | 100-240Vac 1.0A 50/60Hz |
| Output | 24Vdc 1200mA |
| Power Pins | 4/5(+), 7/8(-) |
| Data Speed | 10/100/1000Mbps |
| Operating Temperature | 0 deg C to 40 deg C |
| Operating Humidity | 20% to 80%, non-condensation |
| Storage Temperature | -20 deg C to 70 deg C |
| Storage Humidity | 10% to 90%, non-condensation |
| Operating Altitude | up to 2000meters |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 2KV, Line-Line 1.2/50us (8/20us): 1KV |
| LED Indicator | Power Indicator : Yellow, PoE Load Indicator : Green |
| Case | Plastic |
| Color | White |
| IP Rated | IP40 |
| Size | 95.3mm X 51mm X 34.5mm |
| Weight | 150g |
| Details | |
|---|---|
| Power Cord | NZ 3 Pin Clover Lead Included |
1Gbps
RJ45
PoE (non standard)
