QuMax LTE, WiFi & GPS Antenna for RUT955

0 Rating
$250.00 +GST
Login for your price
Out of Stock
SKU: A955M
QuantityPrice
1 - 4$250.00
5 - 9$243.75
10 - 19$237.50
20+$225.00
QuMax LTE, WiFi & GPS Antenna for RUT955
Warranty
Description
Specifications
Resources
Package Contents

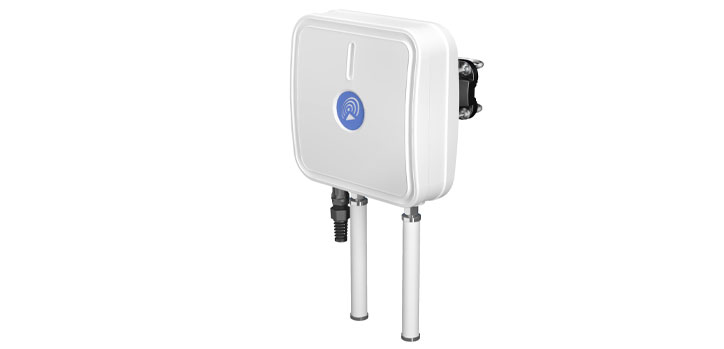

QuMax LTE, WiFi & GPS Antenna for RUT955/RUT950.
Integrated outdoor multi band high power LTE directional antenna + outdoor Wi-Fi omni antenna + GPS antenna + place to install Teltonika RUT955/RUT950 (All-in-one)
QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have the Teltonika RUT955 or RUT950 router installed inside a IP67 enclosure. It is the first choice for fixed installations in an industrial environment. It also has an embedded GPS antenna and outdoor Wi-Fi omni antennas.
Features
  • IP67 Outdoor antenna
  • Passive PoE Support
  • Made to fit mount
  • Easy to Install
  • Easy Integration with Teltonika RUT955/RUT950
Details
Product CodeA955M
Supported LTE bands1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 2305-2360
Frequency Gain0.694-0.96 GHz: 4dBi, 1.7 - 2.2 GHz: 5dBi, 2.2 - 2.7 GHz: 6dBi
Beamwidth90°/90° +/- 30°
PolarizationVertical
Impedance50 O
WiFi Frequencies2.40-2.50 GHz (6dBi), 4.70 - 6.00 GHz (7dBi)
MaterialsABS, aluminum, PTFE, Fiberglass
Ingress ProtectionIP67
Dimensions272 x 276 x 96 mm
Weight1.8 kg
Operating TemperatureFrom -40°C to 75°C
Details
ContentsIP67 Rated Enclosure, Ethernet Connector Gland, Pole mount Included
802.11b , 802.11g , 802.11n
600-999MHz , 1700-2100MHz , 2.4GHz
N-Type , RP-SMA , SMA
