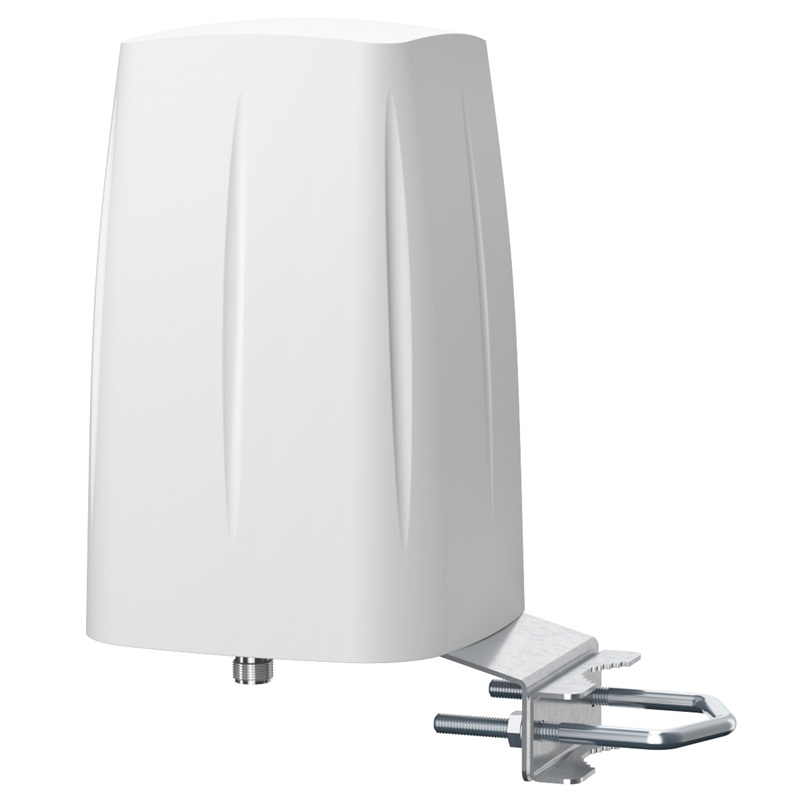

QuWireless QuOmni 4dBi 4G/LTE MIMO 2x2 Antenna with N-Female Connectors

$215.00 +GST
Login for your price
5 In Stock
SKU: AOLM2-N
QuantityPrice
1 - 4$215.00
5 - 9$209.63
10 - 19$204.25
20+$193.50
QuWireless QuOmni 4dBi 4G/LTE MIMO 2x2 Antenna with N-Female Connectors
Warranty
Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*
Description
Specifications
Resources
Package Contents
The QuOmni LTE omnidirectional 4dBi MIMO 2x2 4G/LTE with 2 x N-Female connectors antenna is working in Vertical polarization, it's desired for LTE/4G/3G/2G connections. The antenna can be used for the most popular LTE bands (e.g. 3,7,20), frequencies 694-2700 MHz. That antenna is predicted to be installed on the buildings (on the pole or on the wall) as the client antenna or on the moving points like trains, buses, lorries, yachts, boats to receive Internet by 4G/LTE.
It’s compatible with Teltonika: RUT241, RUT900, RUT951, RUT956, RUTX09, RUTX11 and other MIMO 2x2 LTE/4G/3G/2G modems and routers.
Features
  • IP67 Outdoor antenna
  • Wall or Pole Mount
  • 2 x N-Female connectors
Details
Product CodeAOLM2-N
Frequency694 - 960 MHz, 1.7 - 2.2 GHz, 2.2 - 2.7 GHz
Supported LTE/5G bands1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95
Frequency Gain0.694 - 0.96 GHz : 2 dBi, 1.7 - 2.2 GHz : 2 dBi, 2.2 - 2.7 GHz : 4 dBi
Beamwidth360°/35° +/- 5°
Connector TypeN-Female
PolarizationVertical
Impedance50 Ω
MaterialsABS, aluminum, PTFE
Pole Diameter40-60 mm
Ingress ProtectionIP67
Dimensions160 x 160 x 240 mm
Weight1.5 kg
Operating TemperatureFrom -40°C to 75°C
Details
ContentsIP67 Rated Antenna, Pole mount Included
4G
N-Type
600-999MHz , 1700-2100MHz , 2.4GHz , 2.6GHz
