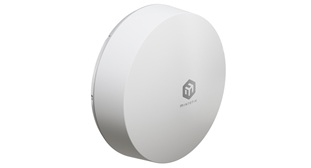

MikroTik ATL 5G R16 outdoor 5G device with built-in eSIM support (not supported in NZ), powerful directional 16dBi antennas, and a cutting-edge Release 16 modem. Ideal for rural, urban, and IoT deployments. With Gigabit Ethernet, PoE-in, and instant MikroTik connectivity out of the box, it’s the smart, rugged choice for fast and flexible internet anywhere. IP66 certified.
Installing an antenna on a rooftop and realizing you forgot a SIM card? Or trying to activate your eSIM (not supported in NZ), but got stuck in the mobile operator call-center queue, endlessly listening to some classical “Your call is important” melodies over the phone?
MikroTik Connectivity solves both issues! Log in to your MikroTik account, choose a data plan, and you’re online. This pre-activated, self-sufficient eSIM (not supported in NZ) setup bridges the gap between “just installed” and “fully operational.” Ideal for remote locations, failover setups, or any place you need reliable internet right now — without any extra steps.
With a powerful 16 dBi directional antenna, 4x4 MIMO support, 512 MB of RAM, a modern dual-core ARM CPU, and a wide range of supported bands, ATL 5G is built to perform — whether you’re deep in the countryside or surrounded by signal noise in the city. And with Gigabit Ethernet and PoE-in support, installation is cleaner and simpler — just a single cable for both power and data.
ATL 5G features 4 high-gain middle-band antennas and 4 low-band antennas, including full Band 28 support for both LTE and 5G. That means exceptional coverage in all the frequencies that really matter, including from 700 MHz to 1 GHz — the sweet spot for rural reach and wall- penetrating reliability.
These low-frequency bands are some of the most widely used by mobile operators around the world, and ATL 5G is ready to squeeze every last drop of performance from them — ensuring you stay connected where others struggle to get a bar.
And when you don’t want to rely on a traditional SIM card, you can use the MikroTik eSIM (not supported in NZ) as your main data plan for low-usage setups or IoT deployments like KNOTs. Or simply switch profiles and connect to your favorite mobile operator — flexibility is built in.
Installing an antenna on a rooftop and realizing you forgot a SIM card? Or trying to activate your eSIM (not supported in NZ), but got stuck in the mobile operator call-center queue, endlessly listening to some classical “Your call is important” melodies over the phone?
MikroTik Connectivity solves both issues! Log in to your MikroTik account, choose a data plan, and you’re online. This pre-activated, self-sufficient eSIM (not supported in NZ) setup bridges the gap between “just installed” and “fully operational.” Ideal for remote locations, failover setups, or any place you need reliable internet right now — without any extra steps.
With a powerful 16 dBi directional antenna, 4x4 MIMO support, 512 MB of RAM, a modern dual-core ARM CPU, and a wide range of supported bands, ATL 5G is built to perform — whether you’re deep in the countryside or surrounded by signal noise in the city. And with Gigabit Ethernet and PoE-in support, installation is cleaner and simpler — just a single cable for both power and data.
ATL 5G features 4 high-gain middle-band antennas and 4 low-band antennas, including full Band 28 support for both LTE and 5G. That means exceptional coverage in all the frequencies that really matter, including from 700 MHz to 1 GHz — the sweet spot for rural reach and wall- penetrating reliability.
These low-frequency bands are some of the most widely used by mobile operators around the world, and ATL 5G is ready to squeeze every last drop of performance from them — ensuring you stay connected where others struggle to get a bar.
And when you don’t want to rely on a traditional SIM card, you can use the MikroTik eSIM (not supported in NZ) as your main data plan for low-usage setups or IoT deployments like KNOTs. Or simply switch profiles and connect to your favorite mobile operator — flexibility is built in.
Features
- High Gain 16dBi Antenna
- Built in eSIM (not supported in NZ)
- 5G + LTE CAT 20 Modem
- PoE in Gigabit Ethernet
- 4x4 MIMO Band 28 Support
- DUAL SIM options
- Rugged IP66
- flexible powering 12 - 56V DC
| Details | |
|---|---|
| Product code | ATLGM&RG520F-EU |
| CPU | Dual-Core 88F3720 800 MHz |
| CPU | Architecture ARM 64bit |
| Size of RAM | 512 MB |
| Storage | 32 MB Flash |
| Number of 1G Ethernet ports | 1 |
| Number of M.2 slots | 1 |
| SIM slots | 1 Micro SIM, eSIM |
| LTE modem | R11mL-RG520F |
| TAC | 86945405 |
| Antenna gain | 16 dBi |
| MIMO DL | 4x4 |
| 5G SA Category | 4.2 Gbps Downlink, 900 Mbps Uplink |
| 5G SA FDD bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700MHz) |
| 5G SA TDD bands | 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) / 75 (1500 MHz) / 76 (1500 MHz) / 77 (3700 MHz) / 78 (3500 MHz) |
| 5G NSA Category | 5.0 Gbps Downlink, 650 Mbps Uplink |
| 5G NSA FDD bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800 MHz) /28 (700 MHz) |
| 5G NSA TDD bands | 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) / 75 (1500 MHz) / 76 (1500 MHz) / 77 (3700 MHz) /78 (3500 MHz) |
| LTE Category | 20 (2.0 Gbps Downlink, 200 Mbps Uplink) |
| LTE FDD bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) /28 (700MHz) / 32 (1500 MHz) |
| LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) / 42 (3500MHz) / 43 (3700MHz) |
| 3G Category | R8 (42.2Mbps Downlink, 5.76Mbps Uplink) |
| 3G bands | 1 (2100MHz) / 5 (850MHz) / 8 (900MHz) |
| Dimensions | 311 x 311 x 179 mm |
| Operating system | RouterOS v7, License level 3 |
| Operating temperature | -40°C to +70°C |
| Details | |
|---|---|
| Power Supply | 24VDC 1.2A PSU Included |
| Power Injector | RBGPOE |
| Mounting Hardware | (2) Hose Clamps |
4G , 5G
600-999MHz , 1700-2100MHz , 2.6GHz , 3GHz
PoE (non standard) , PoE (802.3af/at)
