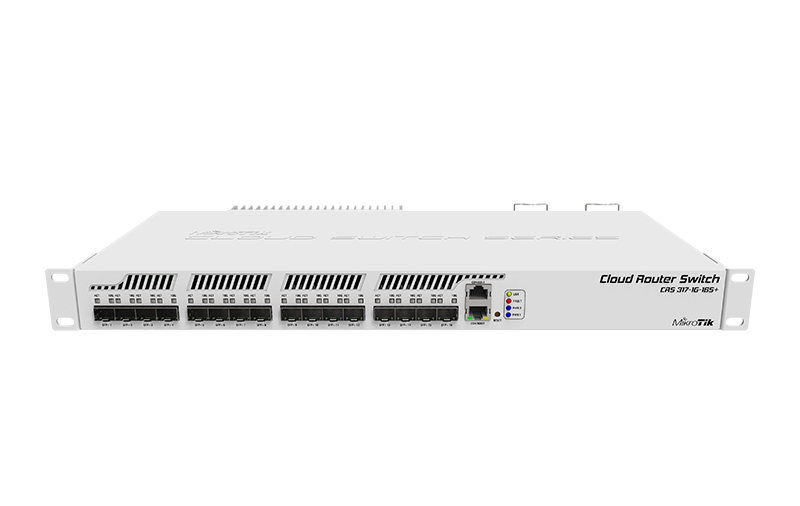

The MikroTik Cloud Router Switch CRS317-1G-16S+RM is a rack-mountable manageable switch with Layer 3 features, it has 16 x SFP+ ports for high performance 10 GbE connectivity and a 1GbE copper port for management.
CRS317-1G-16S+RM is powered by a next generation switching chip, giving you wire speed performance for all sixteen 10GbE ports with any Ethernet frame size. New features such as hardware-based Spanning Tree Protocol and Link Aggregation (LACP) provide enhanced protection and true professional performance for your demanding network.
The unit has dual redundant power supplies and passive cooling case, so it’s completely silent - for hot environments two redundant fans will automatically keep the system cool if needed.
CRS317-1G-16S+RM is powered by a next generation switching chip, giving you wire speed performance for all sixteen 10GbE ports with any Ethernet frame size. New features such as hardware-based Spanning Tree Protocol and Link Aggregation (LACP) provide enhanced protection and true professional performance for your demanding network.
The unit has dual redundant power supplies and passive cooling case, so it’s completely silent - for hot environments two redundant fans will automatically keep the system cool if needed.
Features
- Boot option for SwOS or RouterOS
- Non-blocking Layer 2 switching capacity
- 16K host table
- IEEE 802.1Q VLAN
- Supports up to 4K simultaneous VLANs
- Port isolation and Port security
- MSTP
- HW MPLS forwarding coming in future software update
- SFP 1.25 and SFP+ 10Gbit module support
- 800 MHz dual core CPU
- Dual power supplies
| Details | |
|---|---|
| Product code | CRS317-1G-16S+RM |
| CPU nominal frequency | 800MHz |
| CPU core count | 2 |
| Size of RAM | 1GB |
| 10/100/1000 Ethernet ports | 1 |
| CPU temperature monitor | Yes |
| Dimensions | 443 x 224 x 44 mm |
| Operating System | RouterOS or SwitchOS |
| License level | 6 |
| Max Power consumption | 42W |
| SFP+ ports | 16 |
| Serial port | RJ45 |
| Details | |
|---|---|
| Power Supply | (2) IEC Power Cord |
| Mounting Hardware | Rack ears |
| Warranty | Standard 12 Month RTB |
10Gbps
