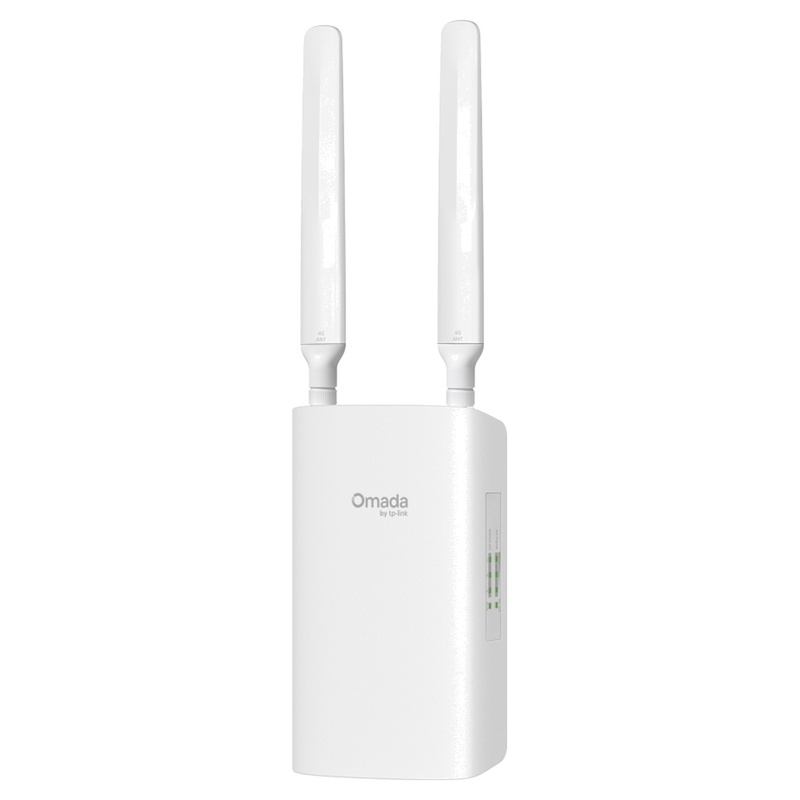

Omada ER603WP-4G-OUTDOOR 4G Cat4 N300 Outdoor PoE Gateway Router with 2x PoE Out Ports.

The Omada ER603WP-4G-Outdoor is a multi-functional 4G gateway, specifically engineered for remote surveillance systems. Its integrated PoE-Out is designed to directly power IP cameras, dramatically simplifying installation by eliminating the need for separate power sources. It leverages dependable LTE performance for constant connectivity, with load balancing to optimize bandwidth and automatic 4G failover to guarantee uninterrupted coverage in any scenario. Housed in a rugged IP55-rated enclosure and fully compatible with the Omada SDN platform for centralized cloud management, it is the ideal, multi-functional solution for installers and MSPs deploying resilient IP camera networks in challenging environments like construction sites, farms, or remote facilities.

Features

4G Cat4 up to 150 Mbps
Wi-Fi 4, Support 300 Mbps on 2.4 GHz
3× Gigabit WAN/LAN Ports (2× PoE Out, 1× PoE In)
1× Nano SIM Card Slot
802.3af/at/bt PoE/Passive PoE/DC Power Supply
IP55 Weatherproof & 4 kV Lightning Protection
Load Balancing between 4G and Ethernet WAN
IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE VPN
Centralized Cloud Management‡
Wall/Pole Mounting

Details
Manufacturer's Code	ER603WP-4G-OUTDOOR
Standards and Protocols	IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3x, IEEE 802.1q, TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP, LLDP, 802.11b/g/n
Interface	3 Gigabit WAN/LAN Ports
LTE	1 Nano SIM slot (CAT4 4G)
LTE Speed	Downlink: 150 Mbps, Uplink: 50 Mbps
Wi‑Fi Speed	2.4 GHz: 300 Mbps
Antennas	2 internal Wi‑Fi antennas; 2 external LTE antennas
Network Media	10BASE-T: UTP category 3, 4, 5 cable (Max 100 m); EIA/TIA-568 100Ω STP (Max 100 m); 100BASE-TX: UTP category 5, 5e cable (Max 100 m); EIA/TIA-568 100Ω STP (Max 100 m); 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
PoE Standard	Passive/802.3af/at/bt PoE in for port 1; Passive/802.3af/at PoE out for port 2-3
PoE Power Budget	52 W when powered by 802.3bt Type 4 (90 W); 34 W when powered by 802.3bt Type 3 (60 W); 13 W when powered by 802.3at (30 W); 9 W when powered by Passive
Network Type	4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700); 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz); 3G HSPA+/HSDPA/HSUPA/WCDMA: B1/B5/B8 (2100/850/900 MHz)
Button	Reset button
Power Supply	Passive/802.3af/at/bt PoE or 12V/1A Adapter
Flash	128 MB NAND
DRAM	256MB DDR3
LED	4G Signal, WLAN, WAN/LAN, SYS
Max Power Consumption	10 W without PoE; 62 W with PoE
Surge Protection	4 kV surge protection
Mounting	Wall-mounting; Pole-mounting
Dimensions	100.4 × 38.7 × 174.8 mm
Net Weight	0.420 kg
MTBF	889200 h@25°C; 510826 h@40°C
SDN Support	Hardware Controller; Automatic Device Discovery; Intelligent Network Monitoring; Abnormal Event Warnings; Unified Configuration; Reboot Schedule; Captive Portal Configuration; ZTP (Zero-Touch Provisioning); Software Controller; Omada App
Certifications	CE, RoHS
Operating Temperature	-30°C to 60°C
Storage Temperature	-40°C to 70°C
Operating Humidity	5% to 95% non-condensing
Storage Humidity	5% to 90% non-condensing
