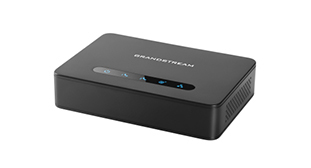

Grandstream HT812V2 2-Port ATA Analogue Phone Adaptor with Gigabit Router

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Supported Platforms

Description

Description

Specifications

Resources

Package Contents

The Grandstream HT812V2 is an advanced 2-port analog telephone adapter (ATA) with 2 FXS ports and an integrated Gigabit NAT router. Built upon Grandstream’s market-leading SIP ATA/gateway technology with millions of units successfully deployed worldwide, this powerful ATA features exceptional voice quality in various application environments, strong encryption with unique security certificate per unit, automated provisioning for volume deployment and device management, and outstanding network performance for home and office use.

Features

Supports 2 SIP profiles through 2 FXS ports and dual Gigabit ports
Includes a built-in NAT router which can handle routing speeds up to 100Mbps
TLS and SRTP security encryption technology to protect calls and accounts
Automated provisioning options include TR-069 and XML config files
Supports 3-way voice conferencing
Failover SIP server automatically switches to secondary server if main server loses connection
Supports T.38 Fax for creating Fax-over-IP
Supports a wide range of caller ID formats
High performance NAT router
Exceptional voice quality with wideband HD codec

Details
Manufacturer's Product Code	HT812V2
Telephone Interfaces	Two (2) RJ11 FXS ports; can be expanded by peering with an FXS gateway
Network Interfaces	Two (2) 10/100/1000Mbps RJ45 ports
LED Indicators	POWER, NET1, NET2, PHONE1, PHONE2
Factory Reset Button	Yes
Telephony Features	Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference
Voice Codecs	G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.722, G.723.1, G.729A/B, G.726-32, iLBC, OPUS, dynamic jitter buffer, advanced line echo cancellation
Fax Over IP	T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through
Short/Long Haul Ring Load	3 REN, up to 1km on 24AWG line
Caller ID	Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
Dial Methods	DTMF, Pulse
Disconnect Methods	Busy Tone, Polarity Reversal/Wink, Loop Current
Network Protocols	TCP/IP/UDP, RTP/RTCP (RFC1889, 1890), HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, SSH, Telnet, STUN (RFC3489, 5389), SIP (RFC3261), SIP over TCP/TLS, SRTP, SNMP, TR-069, IMS/3GPP, IPoE
QoS	Layer 2 (802.1Q VLAN, SIP/RTP 802.1p) and Layer 3 (ToS, Diffserv, MPLS), Traffic shaping
DTMF Method	In-audio, RFC2833 and/or SIP INFO
Provisioning and Control	HTTP, HTTPS, SSH, TFTP, TR-069 , secure and automated provisioning using AES encryption, syslog
Security Media	SRTP
Control	TLS/SIPS/HTTPS, SDP(RFC 2327), Refer (RFC 3515), Offer/Answer (RFC3265), SIP V2.0 (RFC 3261, 3262, 3264), RFC3261, ETC (3GPP TS 24.629, RFC 3515, RFC 3891, RFC 3892), SIP Session Timer (RFC 4028)
Management	Syslog support, SSH, remote management using web browser
Universal Power Supply	Input: 100-240VAC, 50-60Hz, Output: 12V/0.5A Included
Environmental	Operational: 32º – 123ºF or 0º – 50ºC, Storage: 14º – 140ºF or -10º – 60ºC, Humidity: 10 – 90% Non-condensing
Dimension and Weight	28.5 x 130 x 90 mm (H x W x D), Weight: 353.33g
Compliance	FCC/CE/RCM, K.21
