Description
Specifications
Resources
Package Contents

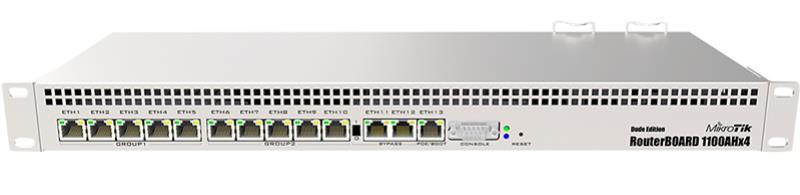

The MikroTik RB1100AHx4 Dude Edition has Annapurna Alpine AL21400 CPU with four Cortex A15 cores clocked at 1.4Ghz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration and are faster at it than any previous RouterBORD device (up to 2.2Gbps with AES128). The RB1100Dx4 comes in a 1U rackmount case and includes 13x Gigabit Ethernet ports, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support). The RB1100AHx4 Dude edition features several high speed storage connectors (two SATA and two M.2) for using a Dude database, proxy cache or any other storage intensive feature. It includes a 60GB M.2 drive already installed.
Features
- Quiet passive cooling
- DC telecom power connector for -48V DC powering
- IPsec hardware acceleration
| Details | |
|---|---|
| Product code | RB1100Dx4 |
| CPU nominal frequency | 1.4 GHz |
| CPU core count | 4 |
| Size of RAM | 1GB |
| 10/100/1000 Ethernet ports | 13 |
| PoE In | Yes, 20V - 57V (-48V supported) |
| Voltage Monitor | Yes |
| PCB temperature monitor | Yes |
| Dimensions | 444 x 148 x 47 mm |
| Operating System | RouterOS |
| License level | 6 |
| Current Monitor | Yes |
| Max Power consumption | 25W |
| Serial port | RS232 |
| Details | |
|---|---|
| Power Supply | IEC Power Cord |
| Mounting Hardware | Rackmount clips included |
1Gbps
PoE (non standard)
