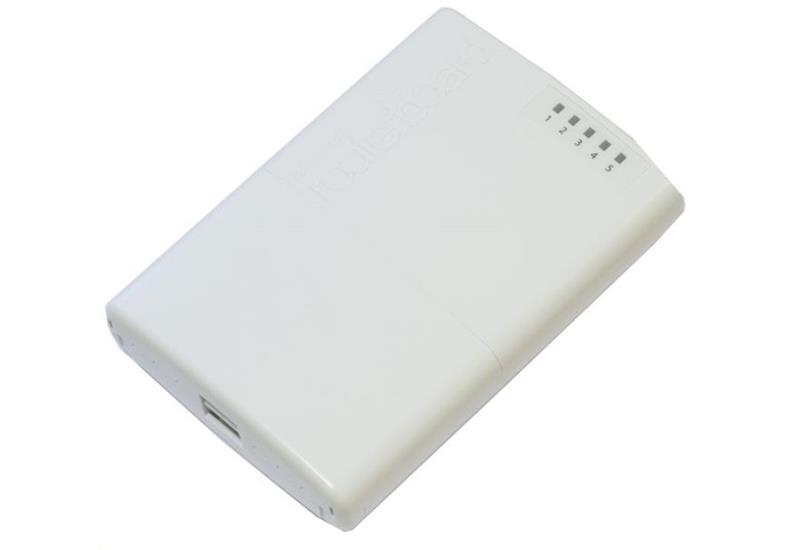

The MikroTik RB750P-PBr2 PowerBOX is an outdoor five Ethernet port router with 24V Passive PoE output on four ports. You can use this device to supply power to four PoE capable devices such as our SXT or others. The device has a waterproof outdoor case so you can mount it on a tower, or in other outdoor locations. The unit has five shielded Ethernet ports, four of which can power other PoE capable devices with the same voltage as applied to the unit (max current out is 1A per port, max total out is 2A). Less power adaptors and cables to worry about!
Features
- New Revision 2 with 650MHz Processor
| Details | |
|---|---|
| Product code | RB750P-PBr2 |
| Product code | RB750P-PBr2 |
| Architecture | MIPSBE |
| CPU | QCA9533 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Switch chip model | QCA9533 |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| 10/100 Ethernet ports | 5 |
| Number of DC inputs | 2 (PoE-IN plus DC jack In) |
| DC jack input Voltage | 8-30 V |
| Max power consumption | 50 W |
| Max power consumption without attachments | 2 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 8-30 V |
| PoE-out ports | Ether2 to Ether5 |
| PoE out | 24V Passive PoE |
| Max out per port output (input 18-30 V) | 1 A |
| Max total out (A) | 2 A |
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Dimensions | 125x178x48mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Certification | CE, EAC, ROHS |
| IP | 20 |
| Details | |
|---|---|
| Inluded | IEC power cord, Metal ring mounting (one), PoE injector, 24V 2.5A power adapter, DIN mount (K-27) |
100Mbps
PoE (non standard)
RJ45
